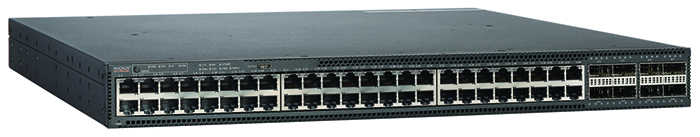

RUCKUS ICX 7850-48C Switch
High-End 48 Ports 10G BASE-T Chassis Replacement Switch

Overview:

New user demands and technology advances are increasingly putting pressure on campus networks requiring them to scale to support more devices and deliver more bandwidth.

The rapid growth in wireless traffic, accelerated by the adoption of 802.11ac and 802.11ax Wi-Fi, is propelling the migration from 1GbE to Multi-gigabit at the network edge and, driving the need for faster aggregation and core solutions.

The Ruckus® ICX® 7850 is designed to meet these new challenges:

• Flexible: Distributed chassis architecture for deploying ports exactly when and where they are needed with long distance stacking
• Scalable: Up to 384x 100GbE or 576x 10/25 GbE ports per 12 units stack
• Secure: Maximum security and data privacy with 128/256-bit MACsec encryption
• Resilient: Highly resilient design with hitless failover, ISSU (In Service Software Upgrade), MCT (Multi-Chassis Trunking) and redundant, hot-swappable power supplies and fans.
• Future Ready: Supports next generation Ethernet speeds with 10/25 Gbps at the aggregation and 40/100 Gbps at the core. Switching capacity up to 6.4 Tbps per switch.
• Cost Effective: Pay as you grow deployment model.
• Simple to Deploy: Unified wired and wireless management with RUCKUS SmartZone. Unique features designed to simplify network deployment and management such as advanced stacking, and zero touch provisioning.

Features:

Enterprise-Class Features Across All RUCKUS ICX Switches

The RUCKUS ICX 7850 is one of the ICX switch families delivering the enterprise class features for flexibility, scalability and simplified management.

• RUCKUS Campus Fabric technology delivers unmatched flexibility, scalability and simplified management for campus network deployments. Incorporating all of the ICX 7000 switch families with up to 1800 ports in a single logical domain, Campus Fabric allows customers the benefits of a traditional chassis, with the flexibility of stackable switches at a dramatically reduced Total Cost of Ownership (TCO).
• Advanced stacking goes beyond traditional stacking with capabilities that take flexibility, ease of management and cost effectiveness to then next level, including:
  • Stacking on standard Ethernet ports
  • Long-distance stacking
  • No hardware module require for stacking
  • In Service Software Upgrade (ISSU) to minimize downtime
  • Superior scalability with the industry-leading number of switches per stack
  • Stacking at the access, aggregation and core layers
• Enterprise-Class Availability to improve resiliency and minimize downtime, including:
  • Hitless stack failover
  • Hot-insertion/removal of stack members
  • Redundant power supplies
  • In Service Software Upgrades for switch stacks
• On-boarding and security policies across ICX switches and wireless networks.
• OpenFlow 1.3 protocol support in hybrid mode allows user to deploy traditional Layer 2/3 forwarding with OpenFlow on the same port for Software Defined Network (SDN) enabled programmatic control of the network
• Open Standards based management, monitoring and authentication
  • sFlow-based network monitoring to help analyze traffic statistics and trends on every link and overcome unexpected network congestion
  • Open-standards management includes Command Line Interface (CLI), Secure Shell (SSHv2), Secure Copy (SCP), and SNMPv3
  • Support for Access Controller Access Control System (TACACS/TACACS+) and RADIUS authentication helps ensure secure operator access
  • LLDP and LLDP-MED protocol support for configuring, discovering, and managing network infrastructure such as QoS, security policies, VLAN assignments, PoE power levels, and service priorities

Benefits:

Performance of a Chassis in 1RU

• Deployed as aggregation or core solution
• Wire-speed, non-blocking performance

Industry-Leading 10/40 GBE Port Density

• 32 ports of 40 GbE or 96 ports of 10 GbE
• 2.56 Tbps switching capacity

Increased Reliability and Availability Through Redundancy

• Load-sharing, hot-swappable power supplies
• RUCKUS MCT eliminates single point of failure

Advanced L3 Routing Delivers Network Design Flexibility

• OSPF, VRRP, PIM, PBR, BGP, VRRP, VRF

Market-Leading Stacking Scalability

• Up to 12 switches per stack
• Up to 10 km using standard optics or cables

Campus Fabric Reduces Cost fo Operations, Increases Flexibility

• Delivers the benefits of a chassis with the flexibility of stackables
• Scales to over 1800 ports

Energy Efficient Design

• Energy efficient use of power and cooling lowers opex costs

Compare:

RUCKUS ICX Switch Family

RUCKUS ICX 7850
All RUCKUS ICX 7850 models offer, dual power supply slots, 5 or 6 fan tray slots in the back, one RJ-45 Ethernet port for out-of-band network management, one USB Type-C port for console management, one RJ-45 port for serial console management, and one USB Type A port for external file storage.

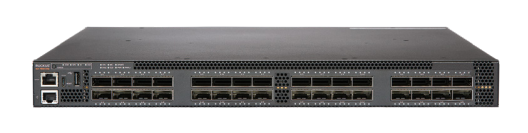

	Ruckus ICX 7850-32Q 32x 40/100 GbE QSFP28 ports supporting native 40 GbE or 100 GbE, or breakout* to 4x10 GbE or 4x25 GbE ·   Up to 8 of the rightmost QSFP28 ports as stacking ports 2x hot-swappable load sharing power supplies and 6x hot- swappable fan assemblies with reversible airflow options (Power supplies and FAN airflows must be the same)

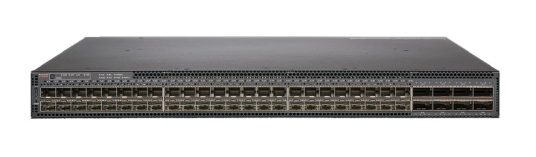

	Ruckus ICX 7850-48FS 48x 1/10 GbE SFP+ ports with 128/256 bit MACsec and LRM support ·   8x 40/100 Gbps QSFP28 ports supporting native 40 GbE or 100 GbE, or breakout* to 4x10 GbE or 4x25 GbE ·   Up to 8 of the QSFP28 ports as stacking ports 2x hot-swappable load sharing power supplies and 5x hot- swappable fan assemblies with reversible airflow options (Power supplies and FAN airflows must be the same)

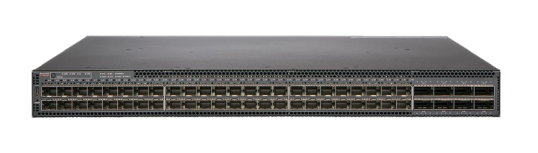

	Ruckus ICX 7850-48F 48x 1/10/25 GbE SFP28 ports ·   8x 40/100 GbE QSFP28 ports supporting native 40 GbE or 100 GbE, or breakout* to 4x10 GbE or 4x25 GbE ·   Up to 8 of the QSFP28 ports as stacking ports 2x hot-swappable load sharing power supplies and 5x hot- swappable fan assemblies with reversible airflow options (Power supplies and FAN airflows must be the same)

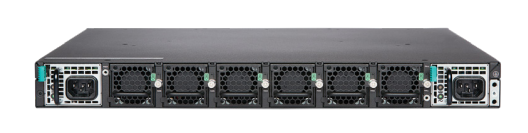

	Ruckus ICX 7850-32Q Rear View 2 power supply slots for RPS19-E or RPS19-I power supplies ·   6 fan tray slots for ICX-FAN-12-E or ICX-FAN12-I fans

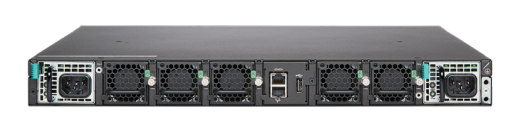

	Ruckus ICX 7850-48F and -48FS Rear View 2 power supply slots for RPS19-E or RPS19-I power supplies ·   5 fan tray slots for ICX-FAN12-E or ICX-FAN12-I

¹ With external power supply unit.
² With QSFP+ to 4 SFP+ splitter cables.
³ To be supported in a future software release.

Specifications:

	Access				Access / Aggregation		Aggregation / Core
	Learn More	Learn More	Learn More	Learn More	Learn More	Learn More	Learn More	Learn More
Feature	ICX 7150-Compact	ICX 7150	ICX 7150 Z-Series	ICX 7250	ICX 7450	ICX 7650	ICX 7750	ICX 7850
Switching Capacity (max)	120Gbps	180Gbps	304Gbps	256Gbps	336Gbps	1.128Tbps	2.56Tbps	6.4Tbps
1GbE RJ-45 ports	8 or 10 or 12 +2	24 +2 or 48 +2	48	24 or 48	24 or 48	48	48
1GbE SFP ports	2	24 +4	8	8	48	48	48	48
1/2.5GbE RJ-45 ports (max)	8		16
1/2.5/5/10GbE RJ-45 ports (max)	2					24
10GbE SFP+ ports (max)	2	4	8	8	12	24 +4	961	1281
10GbE RJ-45 ports (max)	2				12	24	48
25GbE SFP28 ports								48
40GbE QSFP+ ports (max)					3	2	32
100GbE QSFP28 ports (max)						2		32
PoE Power Budget (max)	240W	740W	1480W	1480W	1480W	1500W
Switches per stack (max)	12	12	12	12	12	12	12	12
Aggregate stack bandwidth	240Gbps	480Gbps	480Gbps	480Gbps	960Gbps	2.4Tbps	5.76Tbps	9.6Tbps

¹ Traffic load is based on utilizing all ports.
² 100 Mbps in full duplex mode only

Deployment:

The RUCKUS Campus Fabric architecture versus a traditional multi-tier campus network.

Specification Feature Set:

Documentation:

Download the RUCKUS ICX 7850 Switches Datasheet (PDF).
