RUCKUS R350e Indoor Access Point
Entry-Level Wi-Fi 6 2x2:2 Indoor Access Point with 1.8 Gbps max rate

Overview:

Small facilities can face big-time demands on their wireless infrastructure. Whether staying overnight in a motel, working out of a small office or connec੏ng to a public hotspot, users are often still accessing the same high-bandwidth applications and content they’d consume anywhere else. And they expect reliable connectivity. How can you provide it at a price even the smallest business can afford?

The RUCKUS® R350e delivers consistent, reliable Wi-Fi 6 (802.11ax) wireless networking at an affordable price. The AP features several patented RUCKUS technologies for performance optimization and interference mitigation found in our premier access points, delivering superior user experiences. But it provides them in an ultra-compact form factor built for small venues—with a price tag to match.

The R350e is an ideal choice for low-density environments will less coverage areas including small and medium-size economy hotels and motels, small and medium-size businesses, retail locations, restaurants, and multi-tenant small offices and branch offices.

The R350e Wi-Fi 6 AP incorporates patented technologies found only in the RUCKUS Wi-Fi portfolio.

• Improve throughput with ChannelFly®, which dynamically Cn7s less congested Wi-Fi channels to use.
• Supports up to 128 clients and 8 SSIDs per AP.

The R350e provides an ideal combination of features and performance for smaller environments at a price any business can afford.

Benefits:

• COST EFFECTIVE SOLUTION FOR SMALL FACILITIES
  The R350e Wi-Fi 6 (802.11ax) access point (AP) is a cost effective solution that can deliver fast and reliable Wi-Fi services to up to 128 client devices.


• INDUSTRY LEADING WI-FI PERFORMANCE
  Patented RUCKUS technologies for performance optimization and interference mitigation delivers superior user experience


• MESH NETWORKING
  Dynamically create self-forming, self-healing network mesh with RUCKUS patented SmartMesh technology reducing expensive cabling, and complex configurations by checking a box.


• MULTIPLE UNIFIED MANAGEMENT OPTIONS
  Manage the R350e from the cloud, with on-premises physical/virtual appliances, or without a controller.


• KEEP EXISTING SWITCHES AND CABLES
  Designed to operate on existing PoE switches and CAT 5e cabling to minimize costly power infrastructure upgrades.

Specifications:

WI-FI
Wi-Fi Standards	IEEE 802.11a/b/g/n/ac/ax
Supported Rates	802.11ax: 4 to 1774 Mbps 802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2 for VHT20/40/80) 802.11n: 6.5 Mbps to 300 Mbps (MCS0 to MCS15) 802.11a/g: 54, 48, 36, 24, 18, 12, 9, 6Mbps 802.11b: 11, 5.5, 2 and 1 Mbps
Supported Channels	2.4GHz: 1-13 5GHz: 36-64, 100-144, 149-165
MIMO	2x2 SU-MIMO 2x2 MU-MIMO
Spatial Streams	2 streams SU/MU-MIMO 5GHz 2 streams SU/MU-MIMO 2.4GHz
Radio Chains and Streams	2x2:2 (5 GHz) 2x2:2 (2.4GHz)
Channelization	20, 40, 80MHz
Security	WPA-PSK, WPA-TKIP, WPA2 , WPA3-Personal, WPA3-Enterprise, AES, WPA3, 802.11i, Dynamic PSK WIPS/WIDS
Other Wi-Fi Features	WMM, Power Save, Tx Beamforming, LDPC, STBC, 802.11r/k/v Hotspot Hotspot 2.0 Captive Portal WISPr

RF
Antenna Gain (max)	Up to 3dBi
Antenna Gain (max)	Up to 4dBi
Peak Transmit Power (aggregate across MIMO chains)	2.4GHz: 22 dBm 5GHz: 22 dBm
Minimum Receive Sensivity1	-101 dBm
Frequency Bands	ISM (2.4-2.484GHz) U-NII-1 (5.15-5.25GHz) U-NII-2A (5.25-5.35GHz) U-NII-2C (5.47-5.725GHz) U-NII-3 (5.725-5.85GHz)

2.4GHZ RECEIVE SENSITIVITY (dBm)
HT20		HT40
MCS0	MCS7	MCS0	MCS7
-94	-70	-91	-72
HE20		HE40
MCS0	MCS7	MCS0	MCS7
-94	-70	-91	-72

5GHZ RECEIVE SENSITIVITY (dBm)
VHT20		VHT40		VHT80
MCS0	MCS7	MCS0	MCS7	MCS0	MCS7
-95	-76	-92	-73	-89	-70
HE20		HE40		HE80
MCS0	MCS7	MCS0	MCS7	MCS0	MCS7
-95	-76	-92	-73	-89	-70

2.4GHZ TX POWER TARGET
Rate	Pout (dBm)
MCS0, HT20	19
MCS7, HT20	14
MCS8 VHT20	13.5
MCS9 VHT40	12
MCS11, HE40	11

5GHZ TX POWER TARGET
Rate	Pout (dBm)
MCS0 VHT20	19
MCS7 VHT20	16
MCS0 VHT40, VHT80	19
MCS7 VHT40, VHT80	16
MCS11, HE20, HE40, HE80	12

PERFORMANCE AND CAPACITY
Peak PHY Rates	2.4GHz: 574Mbps 5 GHz: 1200Mbps
Client Capacity	Up to 128 clients per AP
SSID	Up to 8 per AP (4 per band)

RUCKUS RADIO MANAGEMENT
Wi-Fi Channel Management	ChannelFly Background Scan Based
Client Density Management	Adaptive Band Balancing Client Load Balancing Airtime based WLAN Prioritization Airtime Fairness
SmartCast Quality of Service	QoS-based scheduling Directed Multicast L2/L3/L4 ACLs
Mobility	SmartRoam

NETWORKING
Controller Platform Support	SmartZone Unleashed2 RUCKUS One
Mesh	SmartMesh™ wireless meshing technology. Self-healing Mesh
IP	IPv4, IPv6
VLAN	802.1Q (1 per BSSID or dynamic per user based on RADIUS) VLAN Pooling Port-based
802.1x	Authenticator and Supplicant
Policy Management Tools	Access Control Lists Device Fingerprinting Rate Limiting

PHYSICAL INTERFACES

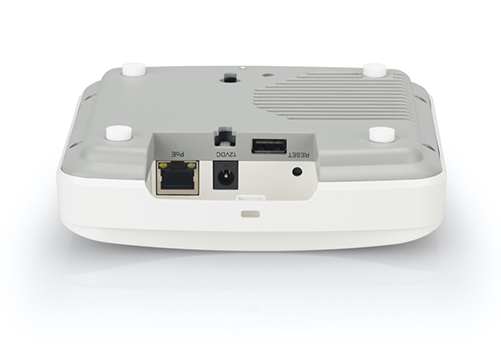

Ethernet	1 x 1GbE port, RJ-45
USB	Disabled

PHYSICAL CHARACTERISTICS
Physical Size	14.60(L) x 15.59(W) x 3.93(H) cm 5.75(L) x 6.14(W) x 1.55(H) in
Weight	368g (13 oz)
Mounting	Wall, Drop ceiling, Desk Secure bracket (sold separately)
Physical Security	Hidden latching mechanism T-bar Torx
Operating Temperature	0°C (32°F) - 40°C (104°F)
Operating Humidity	Up to 95%, non-condensing

POWER3
Power Supply	Maximum Power consumption
PoE (Full functionality)	12.62W
DC input	11.4 W

CERTIFICATIONS AND COMPLIANCE
Wi-Fi Alliance4	Wi-Fi CERTIFIED™ a, b, g, n, ac Wi-Fi CERTIFIED 6™ WPA3™ -Enterprise, Personal Wi-Fi Enhanced Open™ Wi-Fi Agile Multiband™ Passpoint® Vantage WMM
Standards Compliance5	EN 60950-1 Safety EN 60601-1-2 Medical EN 61000-4-2/3/5 Immunity EN 50121-1 Railway EMC EN 50121-4 Railway Immunity IEC 61373 Railway Shock & Vibration UL 2043 Plenum EN 62311 Human Safety/RF Exposure WEEE & RoHS ISTA 2A Transportation

SOFTWARE AND SERVICES
Network Analytics	RUCKUS® AI
Security and Policy	Cloudpath

Note:

1. Rx sensitivity varies by band, channel width and MCS rate.
2. Refer to Unleashed datasheets for SKU ordering information.
3. Max power varies by country setting, band, and MCS rate.
4. For complete list of WFA certifications, please see the Wi-Fi Alliance website.
5. For current certification status, please see the price list.
