RUCKUS H550 Indoor Access Point
Wall-Mounted Wi-Fi 6 2x2:2 Indoor Access Point (AP), Switch and IoT gateway

Ruckus Networks Access Points
Ruckus H550
USA: FREE Ground ShippingRuckus SmartZone Wall-Mounted Wi-Fi 6 2x2:2 Indoor Access Point (AP), Switch and IoT gateway
*Requires Purchase of at least 1 Year of Support
#901-H550-US00
Get a Quote!

More pricing below, click here!

Overview:


How many devices can you connect in a single room? It sounds like the start of a riddle. But if you operate a hotel, apartment building, or other multi dwelling unit (MDU) structure, your answer can have a big impact on your bottom line.

The RUCKUS H550 wall-mounted access point, IoT gateway and Ethernet switch makes it easy to support the most demanding in-room connectivity requirements. It starts with RUCKUS patented Wi-Fi optimization intelligence to deliver the industry's highest-performing wireless connectivity. Combine that with four-ports of Gigabit Ethernet to connect multiple in-room wired devices, without extra cabling and add supports for Zigbee® and Bluetooth® Low Energy (BLE), as well as other protocols via optional USB modules. Put it all in a sleek, low-profile design that can be discretely installed over a standard electrical outlet.

The H550 is a perfect choice for delivering converged services in hospitality and residential locations such as hotel guest rooms, student residence halls, apartments, and other MDU structures. It can connect wired network devices such as IPTV set-top boxes, IP phones, or networked minibars, while simultaneously providing dual-band Wi-Fi 6 coverage and Zigbee® and Bluetooth® Low Energy (BLE). This enables The H550 to support a diverse range of IoT endpoints, minimizing the need for stand-alone IoT networks and simplifying the deployment of IoT solutions.

A PoE port and pass-through features can connect and power devices directly from the wall switch. And, an included cable channel can connect even legacy devices, like digital phones that require native access to PBX systems. All of these in-room services can coexist within the same function box, dramatically reducing cabling, installation time, and construction costs.

The H550 wall-mounted Wi-Fi 6 AP incorporates patented technologies found only in the Ruckus Wi-Fi portfolio:

  • Extended coverage with patented BeamFlex®+ utilizing multi-directional antenna patterns
  • Improve throughput with ChannelFly, which dynamically finds less congested Wi-Fi channels to use
  • Maximize the reliability and performance of video and IP-based voice over Wi-Fi networks with the SmartCast™ traffic prioritization engine

With Multi-User connectivity the H550 can simultaneously transmit and receive from/to multiple Wi-Fi 6 clients, improving network RF efficiancy and overall performance, even for non-Wi-Fi 6 clients. The H550 also features a USB port to support future add-on radio modules, easy-to - deploy mesh networking capabilities and support for up to 100 clients per room. Whether you're deploying ten or ten thousand APs, the H550 is also easy to manage through Ruckus' controller-less, appliance, virtual, and cloud management options

Benefits:

  • GREAT ALL-IN-ONE: WI-FI 6, IoT, WIRED PORTS - Deliver great in-room Wi-Fi and enable consolidated IP services with Wi-Fi 6 speed, BLT, Zigbee and a built-in 4- port Gigabit Ethernet switch.

  • STUNNING WI-FI PERFORMANCE - Extends coverage with patented BeamFlex®+ adaptive antenna technology while mitigating interference by utilizingmulti-directional antenna patterns

  • SUPPORT MORE SERVICES - Multiple SSIDs and switch ports help support services such as VoIP, IPTV, and high-speed Internet access and in-room device connectivity. Embedded IoT helps support connected entry, staff alert and building automation

  • AUTOMATE OPTIMAL THROUGHPUT - ChannelFly® dynamic channel technology uses machine learning to automatically find the least congested channels. You always get the highest throughput the band can support.

  • SERVE MORE DEVICES - Connect more devices simultaneously with two MUMIMO spatial streams and concurrent dual-band 2.4/5GHz radios.

  • MULTIPLE MANAGEMENT OPTIONS - Manage the H550 from the cloud, with on-premises physical/virtual appliances, or without a controller.

  • BEYOND WI-FI - Support services beyond Wi-Fi with RUCKUS IoT Suite, Cloudpath® security and onboarding software SPoT WiFi locationing engine, and SCI network analytics

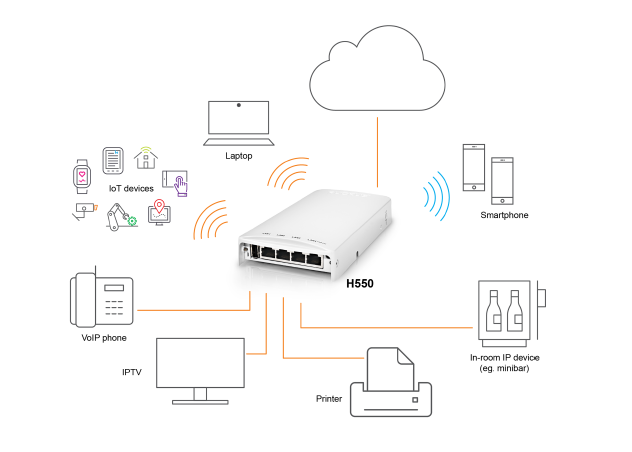

Deployment:

Converged Wired And Wireless Services

Ruckus 550

Specifications:




H550

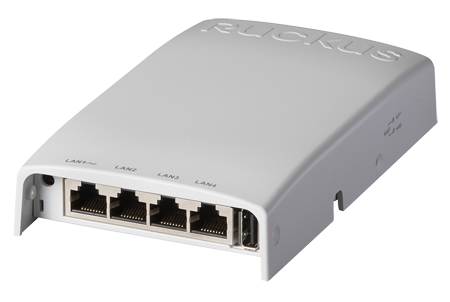

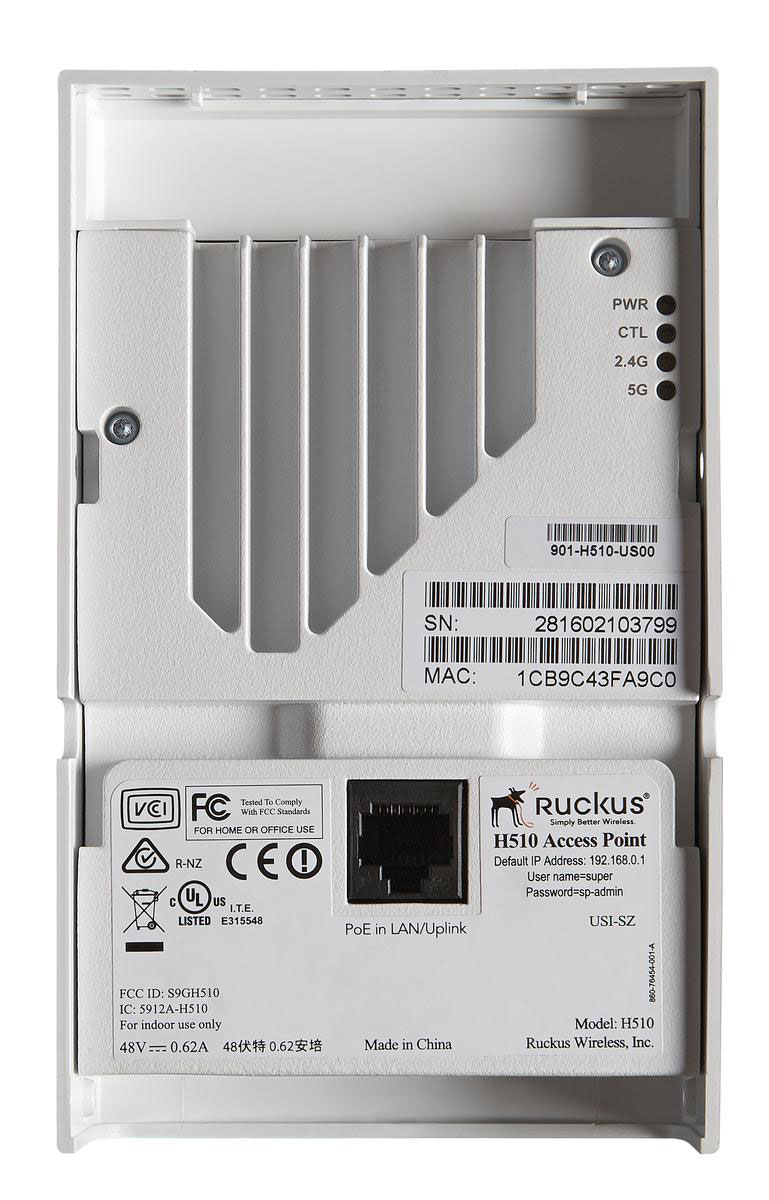

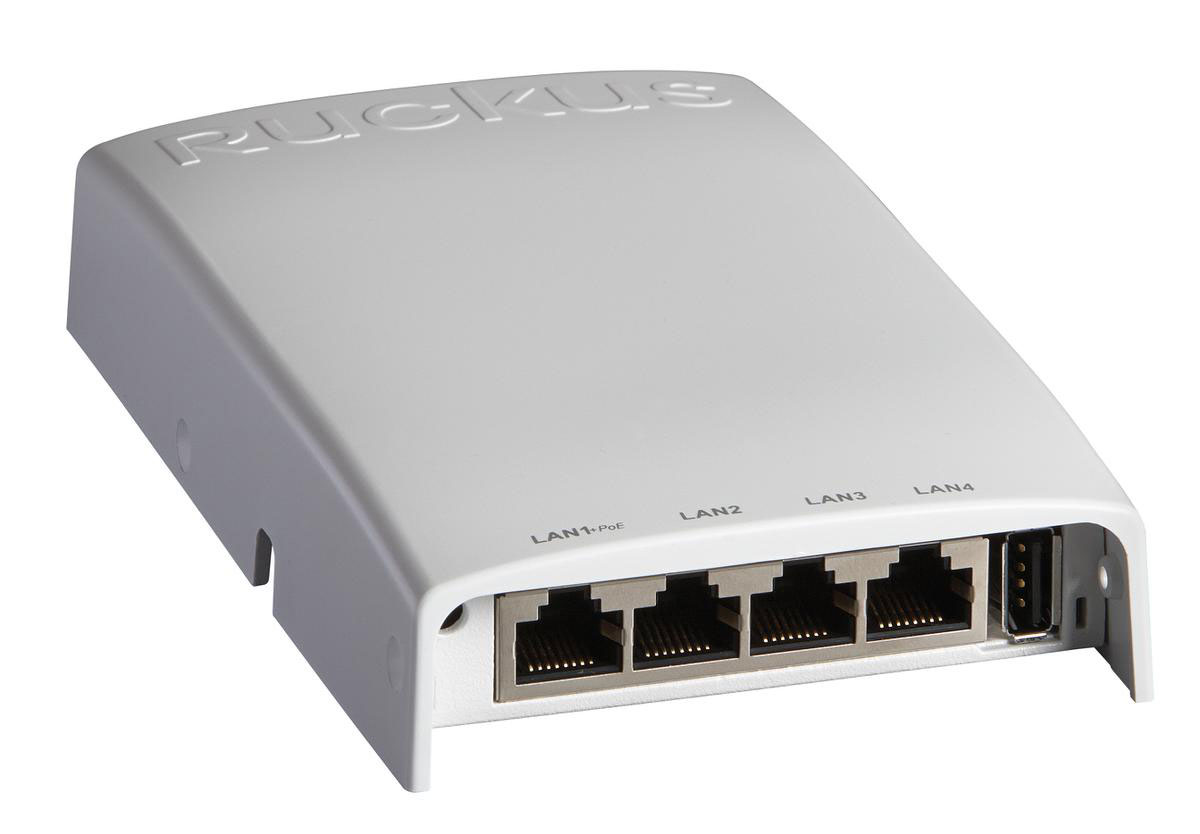

H510

H320

C110





H550 Learn More H510 Learn More H320 Learn More C110 Learn More



Feature/Description

Switch and IoT gateway

Indoor Access Point- Wall-Mounted Wi-Fi 6 2x2:2 Indoor Access Point (AP)

802.11ac Wave 2

dual-concurrent wall switch with five GbE ports and BeamFlex+

802.11ac Wave 2

dual-concurrent wall switch with two 10/100MbE ports and BeamFlex+

802.11ac Wave2

dual-concurrent wall plate with built-in DOCSIS 3.0 cable modem



Maximum PHY rate

1200 Mbps (5GHz)

574 Mbps (2.4GHz)

867 Mbps (5GHz)

300 Mbps (2.4GHz)

867 Mbps (5GHz)

150 Mbps (2.4GHz)

867 Mbps (5GHz)

300 Mbps (2.4GHz)



Wi-Fi technology

802.11ax (5GHz)

802.11ax (2.4GHz)

802.11ac (5GHz)

802.11n (2.4GHz)

802.11ac (5GHz)

802.11n (2.4GHz)

802.11ac (5GHz)

802.11n (2.4GHz)

Concurrent users

512

100

100

100



Radio chains:streams



2x2:2



2x2:2

5GHz: 2x2:2 MU MIMO

2.4GHz: 1x1:1 SU-MIMO



2X2:2

Antenna patterns (per band)

16

4

4

4

Antenna gain

Up to 1dBi

Up to 1dBi

Up to 3dBi

Up to 3dBi

PD-MRC

Rx sensitivity (2.4/5GHz)

-100/-100dBm

-99/-96dBm

-99/-96dBm

-96/-95dBm

ChannelFly

SmartMesh



Ethernet ports



5 x 1GbE



5 x 1GbE

2 x 10/100MbE

1 x 1GbE



2 x 10/100MbE



WLAN Control and Management

·   ZoneDirector

·   SmartZone

·   Unleashed

·   RUCKUS Cloud

·   ZoneDirector

·   SmartZone

·   Unleashed

·   RUCKUS Cloud

·   ZoneDirector

·   SmartZone

·   Unleashed

·   RUCKUS Cloud

·   ZoneDirector

·   SmartZone

·   Unleashed

Documentation:

Download the Ruckus H550 Datasheet (PDF).
