RUCKUS ICX Family Switches
Flexible Scalability and Simplified Management for Simply Better Connections
RUCKUS innovates across wired technologies, as well as wireless, to enable awesome customer experiences. The RUCKUS ICX Family of fixed form-factor switches work together to simplify network set-up and management, enhance security, minimizes troubleshooting and make upgrades easy. Our low-latency, non-blocking architecture ensures excellent throughput for the most demanding video, Unified Communications, VDI, and mobile applications.
Whether you're deploying a standalone switch, a stack, or a fabric network, you’ll reap the benefits of RUCKUS performance, flexibility and investment protection.
Grow Without Disruption
Stack up to 12 RUCKUS ICX Switches into a single logical switch using standard copper and optics over distances of 10 kilometers:
- Auto-provision your switches
- Easily insert or replace stack members
- Perform In-Service Software Upgrade of the entire stack with no downtime
Simple, Reliable Campus Connections
Use RUCKUS Campus Fabric technology to create a resilient fabric network and eliminate any single point of failure along with other important capabilities:
- Consolidate management across multiple switch families to reduce maintenance time and costs
- Use shared network services to bring the advanced services of premium core switches to entry-level access switches
- Manage up to 36 access switches as a single, logical network element
Future-Proof Your Network
Build a network foundation that's ready for the future whenever you are. The switches can operate in hybrid-port mode, running traditional protocols and OpenFlow-directed flows at the same time, so you can transition to software-defined networking (SDN) at your own pace, without disruption.
See for yourself how RUCKUS can reduce your campus network acquisition, power, cooling, and support costs.
ICX 7150-C10ZP
- 2x 100/1000/2.5/5/10G (PoH)
- 2x 100/1000/2.5G (PoH)
- 6x 100/1000/2.5G (PoE+)
- 2 x SFP (mini-GBIC) (uplink)
ICX 7150-C12P
- 12x10/100/1000 Mbps POE+ RJ-45 ports
- 124 W power budget
- 2x10/100/1000 Mbps uplink RJ-45 ports
- 2x1/10 GbE uplink/stacking SFP/SFP+ ports
ICX 7150-24
- 24x10/100/1000 Mbps RJ-45 ports
- 2x10/100/1000 Mbps uplink RJ-45 ports
- 4x1/10 GbE uplink/stacking SFP/SFP+ ports
ICX 7150-24P
- 24x10/100/1000 Mbps RJ-45 PoE+ ports
- 370 W PoE budget
- 2x10/100/1000 Mbps uplink RJ-45 ports
- 4x1/10 GbE uplink/stacking SFP/SFP+ ports
ICX 7150-48
- 48x10/100/1000 Mbps RJ-45 ports
- 2x10/100/1000 Mbps uplink RJ-45 ports
- 4x1/10 GbE uplink/stacking SFP/SFP+ ports
ICX 7150-48P
- 48x10/100/1000 Mbps RJ-45 PoE+ ports
- 370 W PoE budget
- 2x10/100/1000 Mbps uplink RJ-45 ports
- 4x1/10 GbE uplink/stacking SFP/SFP+ ports
ICX 7150-48PF
- 48x10/100/1000 Mbps RJ-45 PoE+ ports
- 740 W PoE budget
- 2x10/100/1000 Mbps uplink RJ-45 ports
- 4x1/10 GbE uplink/stacking SFP/SFP+ ports
ICX 7150-48ZP
- 16x100/1000 Mbps/2.5 Gbps RJ-45 PoH ports
- 32x10/100/1000 Mbps RJ-45 PoE+ ports
- 1,480 W PoE budget (with two power supplies)
- 8x1/10 GbE uplink/stacking SFP/SFP+ ports

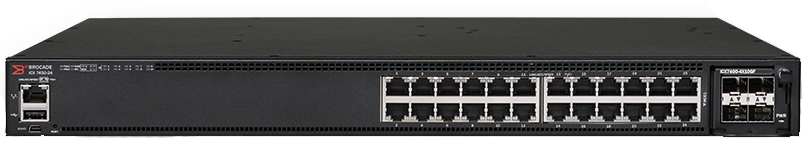

ICX-7450-24P
- 24x10/100/1000 Mbps RJ-45 PoE+ ports with eight pre-assigned ports supporting PoH (90 W)
ICX 7450-48P
- 48x10/100/1000 Mbps RJ-45 PoE+ ports with eight pre-assigned ports supporting PoH (90 W)
ICX-7450-24P
- 24x10/100/1000 Mbps RJ-45 PoE+ ports with eight pre-assigned ports supporting PoH (90 W)
ICX 7450-48P
- 48x10/100/1000 Mbps RJ-45 PoE+ ports with eight pre-assigned ports supporting PoH (90 W)
Legacy Products:
ICX 7250 Switch Series
- ICX 7250-24G 24-port Switch
- ICX 7250-24 24-port Switch
- ICX 7250-24P 24-port PoE+ Switch
- ICX 7250-48 48-port Switch
- ICX 7250-48P 48-port PoE+ Switch
