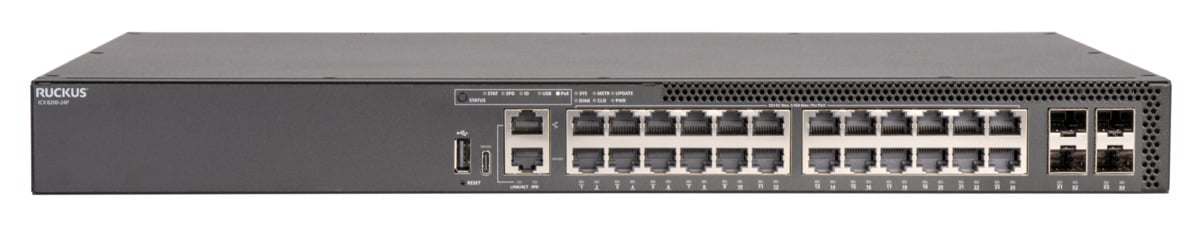

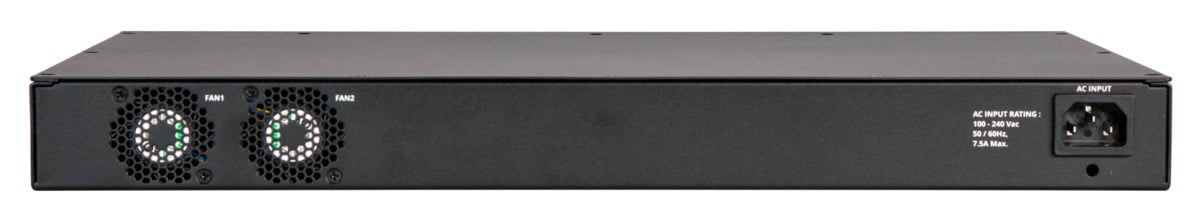

RUCKUS ICX8200-24P Switch
Entry-Level+ Access 24 Ports 1G PoE Switch

Overview:

The RUCKUS ICX fixed form-factor switch series works together to deliver a simple secure and scalable highperformance network solution supporting today’s most demanding networking needs

The RUCKUS ICX 8200 Switch series is purposely designed to handle next generation wireless first and IoT campus networks. These intelligent, scalable edge switches deliver enterprise-class functionality at an affordable price without compromising performance and reliability.

The RUCKUS ICX 8200 raises the bar with up to 8× 25 GbE ports for uplinks or stacking, PoE++ (802.3bt), VXLAN, advanced L2/L3 features and market-leading stacking density with up to 12 switches per stack. In addition, the RUCKUS ICX 8200 combines enterprise-class features, manageability, performance, and reliability with the flexibility, costeffectiveness, and “pay as you grow” scalability of stackable solution.

Benefits:

Maximum flexibility: Gigabit, Multigigabit edge ports and Fiber to the Room

• Optimized for latest generation Wi-Fi 6/6E/7 AP deployments with multigigabit ports.
• 8, 24 and 48 Gigabit Ethernet ports
• Up to 24x 1/2.5G Multigigabit RJ45 ports
• Up to 4× 1/2.5/5/10 Gbps Multigigabit RJ-45 ports
• Up to 48x 1G SFP fiber ports
• Up to 24x 10G SFP+ fiber ports

Power next generation APs and PoE devices

• PoE+ 802.3at, 30W per port on all ports
• PoE++ 802.3bt, 60/90W on multigigabit ports
• Up to 1480W PoE budget with two power supplies

25 GbE uplinks/stacking for maximum performance and future-proofing

• Stacking comes standard with all ICX 8200
• Up to 8x 1/10/25GbE SFP28 fiber ports for uplink and/or stacking

Enhanced Security and data privacy

• VXLAN* support for advanced network segmentation and data confidentiality

Advanced L3 routing delivers network design flexibility

• IPv4 and IPv6 L3 routing
• Static routes, RIP, OSPF, VRRP, VRF, GRE, PIM, PBR

Broad range of unified management options for maximum flexibility

• On Premises: SmartZone
• Cloud Based: RUCKUS Cloud*
• Controllerless: RUCKUS Unleashed*
• RUCKUS Analytics

Enhanced availability

• Redundant, load-sharing power supplies and fans on specific models

Services and Support Included

• 3 Years remote TAC support included with every ICX 8200 model
• Limited lifetime warranty

Note: * Available in a future software release

RUCKUS ICX 8200 with RJ45 Copper ports and fixed power supply and fans
These stackable RUCKUS ICX 8200 models offer a single integrated power supply, one RJ-45 Ethernet port for out-of-band network management, one USB Type-C port for console management, one RJ-45 port for serial console management, and one USB port for external file storage.
	ICX 8200-24 24× 10/100/1000 Mbps RJ-45 ports 4× 1/10/25 GbE uplink/stacking SFP28 ports
	ICX 8200-24P PoE 24× 10/100/1000 Mbps RJ-45 PoE+ ports 4× 1/10/25 GbE uplink/stacking SFP28 ports 370 W PoE budget. PoE+ 802.3at
	ICX 8200-24ZP Multigigabit PoE 24× 100/1000/2500 Mbps RJ-45 PoE++ 90W ports 4× 1/10/25 GbE uplink/stacking SFP28 ports 740 W PoE budget.
	ICX 8200-48 48× 10/100/1000 Mbps RJ-45 ports 4× 1/10/25 GbE uplink/stacking SFP28 ports
	ICX 8200-48P PoE 48× 10/100/1000 Mbps RJ-45 PoE+ ports 4× 1/10/25 GbE uplink/stacking SFP28 ports 370 W PoE budget. PoE+ 802.3at
	ICX 8200-48PF PoE 48× 10/100/1000 Mbps RJ-45 PoE+ ports 4× 1/10/25 GbE uplink/stacking SFP28 ports 740 W PoE budget. PoE+ 802.3at

RUCKUS ICX 8200 with hot-swap power supplies and fans
These stackable RUCKUS ICX 8200 models offers 2 slots for redundant hot swappable load sharing power supplies, 2 slots for hot swappable fans, one RJ-45 Ethernet port for out-of-band network management, one USB Type-C port for console management, one RJ-45 port for serial console management, and one USB port for external file storage.
	ICX 8200-48PF2 PoE 48× 10/100/1000 Mbps RJ-45 PoE+ ports 4× 1/10/25 GbE uplink/stacking SFP28 ports 1440 W PoE budget with two PSUs (740W with one PSU) Dual hot swappable power supplies and fans
	ICX 8200-48ZP2 Multigigabit PoE 32× 10/100/1000 Mbps RJ-45 PoE+ ports 16× 100/1000/2500 Mbps RJ-45 PoE++ 90W ports 4× 1/10/25 GbE uplink/stacking SFP28 ports 1480 W PoE budget with two PSUs (740W with one PSU) Dual hot swappable power supplies and fans

RUCKUS ICX 8200 Compact
These RUCKUS ICX 8200 compact switches offer a single integrated power supply, one USB Type-C port for console management, one RJ-45 Ethernet port for out-of-band network management, one RJ-45 port for serial console management, and one USB port for external file storage
	ICX 8200-C08PF PoE 8× 10/100/1000 Mbps RJ-45 PoE+ ports 2× 1/10GbE uplink/stacking SFP+ ports 124 W PoE budget PoE+ 802.3at
	ICX 8200-C08ZP Multigigabit PoE 4× 100/1000/2500 Mbps RJ-45 PoE++ 90W ports 4× 1/2.5/5/10 Gbps RJ-45 PoE++ 90W ports 2× 1/10/25 GbE uplink/stacking SFP28 ports 240 W PoE budget

RUCKUS ICX 8200 Fiber
These stackable RUCKUS ICX 8200 models offer a single integrated power supply, one RJ-45 Ethernet port for out-of-band network management, one USB Type-C port for console management, one RJ-45 port for serial console management, and one USB port for external file storage
	ICX 8200-24F Fiber 24× 1GbE SFP ports 4× 1/10/25 GbE uplink/stacking SFP28 ports
	ICX 8200-48F Fiber 48× 1GbE SFP ports 4× 1/10/25 GbE uplink/stacking SFP28 ports
	ICX 8200-24FX 10G Fiber 16× 1/10GbE SFP+ ports 8× 1/10/25 GbE uplink/stacking SFP28 ports

RUCKUS ICX 8200 Feature/Model Comparison:

	Gigabit Compact	Gigabit Non-PoE		Gigabit PoE
	RUCKUS ICX 8200-C08PF	RUCKUS ICX 8200-24	RUCKUS ICX 8200-48	RUCKUS ICX 8200-24P	RUCKUS ICX 8200-48P	RUCKUS ICX 8200-48PF	RUCKUS ICX 8200-48PF2
Features
Switching capacity (data rate, full duplex)	56 Gbps	248 Gbps	296 Gbps	248 Gbps	296 Gbps	296 Gbps	296 Gbps
Forwarding capacity (data rate, full duplex)	42 Mpps	184 Mpps	220 Mpps	184 Mpps	220 Mpps	220 Mpps	220 Mpps
10/100/1000 Mbps RJ45	8	24	48	24	48	48	48
1 Gbps SFP uplinks
1/10 Gbps SFP/SFP+ uplinks	2
1/10/25 Gbps SFP/SFP+/SFP28 uplinks		4	4	4	4	4	4
PoE/PoE+ 802.3at ports	8			24	48	48	48
Dual hot-swap power supplies and fan modules							Yes
Max PoE Class 3 ports (15.4 W per port)	8			24	48	48	48
Max PoE+ Class 4 ports (30 W per port)	4			12	12	24	48 ((2PSU)
Energy Efficient Ethernet (802.3az)	Yes
Base IPv4/v6 Layer 3 routing (static routing, RIP)	Yes
Advanced IPv4/v6 Layer 3 (OSPF, VRRP, VRF, GRE, PIM, PBR)	With License
Aggregated stacking bandwidth (data rate, full duplex)	240 Gbps	1.2 Tbps
Stacking density (maximum switches in a stack)	12
Stacking ports (maximum ports usable for stacking)	Up to 2×10 GbE SFP+	Up to 4×25 GbE SFP28
Maximum stacking distance (distance between stacked switches)	10 km
Features	Power
Power inlet (AC)	C14
Input voltage/frequency	AC: 100 to 240 VAC @ 50 to 60 Hz
Power Supply Hold Time	10ms	10ms	10ms	20ms	20ms	10ms	10ms
Power supply rated max (AC)	240 W	65 W	100 W	525 W	525 W	880 W	920W x 2
PoE power budget (AC)	124 W			370 W	370 W	740 W	740W (1 PSU) 1440W (2 PSU)
Switch power usage (25°C) 10% traffic* (no PoE load) 100% traffic** (full PoE load)	18 W 150 W	31 W 38 W	47 W 54 W	36 W 445 W	49 W 451 W	51W 854 W	86 W 1667 W
Airflow	Fanless	Fanless Mode. Front to side & back		Fanless Mode. Front to side & back			Front to Back
Switch power dissipation (25°C) 10% traffic* (no PoE load) 100% traffic** (full PoE load)	61 BTU/hr 514 BTU/hr	106 BTU/hr 132 BTU/hr	160 BTU/hr 184 BTU/hr	124 BTU/hr 1518 BTU/hr	167 BTU/hr 1539 BTU/hr	174 BTU/hr 2914 BTU/hr	294 BTU/hr 5692 BTU/hr
Features
Net Weight	2.27 kg 5.00 lb	3.74 kg 8.24 lb	4.96 kg 10.93 lb	4.34 kg 9.57 lb	5.57 kg 12.28 lb	5.51kg 12.15 lb	6.39 kg 14.08 lb
Dimensions Height Width Depth	4.40 cm 1.73 Inches 27.00 cm 10.63 inches 21.40 cm 8.42 inches	4.40 cm 1.73 Inches 44.00 cm 17.32 inches 28.00 cm 11.02inches	4.40 cm 1.73 inches 44.00 cm 17.32 inches 37.00 cm 14.57 inches	4.40 cm 1.73 inches 44.00 cm 17.32 inches 28.00 cm 11.02 inches	4.40 cm 1.73 inches 44.00 cm 17.32 inches 37.00 cm 14.57 inches	4.40 cm 1.73 inches 44.00 cm 17.32 inches 37.00 cm 14.57 inches	4.40 cm 1.73 inches 44.00 cm 17.32 inches 37.00 cm 14.57 inches
Acoustics (25°C, min fan speed)	Fanless	40.0 dBA	40.0 dBA	41.0 dBA	41.0 dBA	41.0 dBA	51.0 dBA
MTBF (25°C)	2,007,096hr	1,543,328hr	1,136,723hr	1,550,360hr	1,297,288hr	1,070,987hr	561,966hr
Features	Management Ports
USB Type-C port (For console management)	Yes
RJ45 serial port (For serial console management)	Yes
USB Type-A port (For external file storage)	Yes
RJ45 Ethernet port (For out of band network management)	Yes

* All downlink ports, stacking ports, and uplink ports are linked up with 10% traffic rate. No PoE load on PoE models. Fans are at nominal speed.
** All downlink ports, stacking ports, and uplink ports are linked up with 100% traffic rate. 100% PoE load on PoE models. Fans are at high speed

	Multigigabit Ethernet PoE++			Fiber Ethernet
	RUCKUS ICX 8200-C08ZP	RUCKUS ICX 8200-24ZP	RUCKUS ICX 8200-48ZP2	RUCKUS ICX 8200-24F	RUCKUS ICX 8200-24FX	RUCKUS ICX 8200-48F
Features
Switching capacity (data rate, full duplex)	200 Gbps	320 Gbps	344 Gbps	248 Gbps	720 Gbps	296 Gbps
Forwarding capacity (data rate, full duplex)	148 Mpps	237 Mpps	254 Mpps	184 Mpps	533 Mpps	219 Mpps
10/100/1000 Mbps RJ45
100/1000 Mbps/2.5 Gbps RJ45 downlinks (full duplex only	4	24	16
100Mbps/1/2.5/5/10 Gbps RJ45 downlinks	4
1 Gbps SFP				24		48
1/10 Gbps SFP+					16
1/10/25 Gbps SFP/SFP+/SFP28 uplinks	2	4	4	4	8	4
PoE/PoE+ 802.3at ports			32
PoH / PoE / PoE+ / PoE++ 802.3bt ports	8	24	16
Dual hot-swap power supplies and fan modules			Yes
Maximum PoE Class 3 ports (15.4 W per port)	8	24	48
Maximum PoE+ Class 4 ports (30 W per port)	8	24	24 (1 PSU) 48 (2 PSU)
Maximum PoE++ Class 6 ports (60 W per port)	4	12	12 (1PSU) 16 (2 PSU)
Energy Efficient Ethernet (802.3az)	Yes
Advanced IPv4/v6 Layer 3 routing (OSPF, VRRP, VRF, GRE, PIM, PBR)	With License
Base IPv4/v6 Layer 3 routing (static routing, RIP)	Yes
Aggregated stacking bandwidth (data rate, full duplex)	600 Gbps	1.2 Tbps
Stacking density (maximum switches in a stack)	12
Stacking ports (maximum ports usable for stacking)	Up to 2×25 GbE SFP28	Up to 4×25 GbE SFP28
Maximum stacking distance (distance between stacked switches)	10 km
Features	Power
Power inlet (AC)	C14
Input voltage/frequency	AC: 100 to 240 VAC @ 50 to 60 Hz
Power Supply Hold Time	20ms	10ms	10ms	10ms	10ms	10ms
Power supply rated max (AC)	305W	950W	920W x 2	100W	150W	180W
PoE power budget (AC)	240W	740W	800W (1 PSU) 1480W (2 PSU)
Switch power usage (25°C) 10% traffic* (no PoE load) 100% traffic** (full PoE load)	41 W 300 W	69 W 920 W	90W 1839W	65W 78W	82W 93W	106W 118W
Airflow	Fanless	Front to side & back		Front to side & bac
Switch power dissipation (25°C) 10% traffic* (no PoE load) 100% traffic** (full PoE load)	140 BTU/hr. 1023 BTU/hr	235 BTU/hr. 3139 BTU/hr.	305 BTU/hr. 6275 BTU/hr.	223 BTU/hr. 264 BTU/hr	279 BTU/hr. 316 BTU/hr	362 BTU/hr. 402 BTU/hr.
Features
Net Weight	3.23 Kg	5.22 Kg	6.64 Kg (2 PSUs)	3.77 Kg	3.81 Kg	4.30 Kg
Dimensions Height Width Depth	4.40 cm 1.73 Inches 27.00 cm 10.63 inches 26.00 cm 10.24 inches	4.40 cm 1.73 Inches 44.00 cm 17.32 inches 28.00 cm 11.02inches	4.40 cm 1.73 inches 44.00 cm 17.32 inches 37.00 cm 14.57 inches	4.40 cm 1.73 inches 44.00 cm 17.32 inches 28.00 cm 11.02 inches	4.40 cm 1.73 inches 44.00 cm 17.32 inches 28.00 cm 11.02 inches	4.40 cm 1.73 inches 44.00 cm 17.32 inches 28.00 cm 11.02 inches
Acoustics (25°C, min fan speed)	Fanless	41.0 dBA	51.0 dBA	41.0 dBA	41.0 dBA	41.0 dBA
MTBF (25°C)	539,091hr	936,765hr	536,710hr	1,190,512hr	890,716hr	1,699,974hr
Features
USB Type-C port (For console management)	Yes
RJ45 serial port (For serial console management)	Yes
USB Type-A port (For external file storage)	Yes
RJ45 Ethernet port (For out of band network management)	Yes

* All downlink ports, stacking ports, and uplink ports are linked up with 10% traffic rate. No PoE load on PoE models. Fans are at nominal speed.
** All downlink ports, stacking ports, and uplink ports are linked up with 100% traffic rate. 100% PoE load on PoE models. Fans are at high speed.

RUCKUS ICX 8200 Specifications:

Features	SPECIFICATIONS
Connector options	10/100/1000 Mbps RJ-45 1/2.5 Gbps RJ-45 1/2.5/5/10 Gbps RJ-45 1 Gbps SFP ports 1/10 Gbps SFP+ ports 1/10/25 Gbps SFP28 ports Out-of-band Ethernet management: 10/100/1000 Mbps RJ-45 Console management: RJ45 serial port and USB Type-C port with serial communication device class support File transfer: USB port, standard-A plug
DRAM NVRAM (eMMC) Packet buffer size	4 GB 8 GB 4 MB
Maximum MAC addresses	32K
Maximum VLANs Maximum PVLANs	4,095 32
Maximum STP (spanning trees instances)	253
Maximum VEs	512
Maximum ARP entries	8192
Maximum routes (in hardware)	16k IPv4, 4k IPv6 Next hop address: 8k
Trunking	Maximum ports per LAG : 8 Maximum Link Aggregation Groups : 128
Maximum jumbo frame size	9,216 bytes
QoS priority queues	8 per port
Multicast groups	4096 (Layer2 IGMP) 512 (Layer2 MLD) 4096 (IPv4 PIM) 512 (IPv6 PIM)
Quality of Service (QoS	ACL Mapping and Marking of ToS/DSCP (CoS) ACL Mapping and Marking of 802.1p ACL Mapping to Priority Queue Classifying and Limiting Flows Based on TCP Flags DiffServ Support Honoring DSCP and 802.1p (CoS) MAC Address Mapping to Priority Queue Priority Queue Management using Weighted Round Robin (WRR), Strict Priority (SP), and a combination of WRR and SP
Traffic management	ACL-based inbound rate limiting and traffic policies Broadcast, multicast, and unknown unicast rate limiting Inbound rate limiting per port Outbound rate limiting per port and per queue
Security	802.1X authentication MAC authentication Flexible authentication Web authentication DHCP snooping Dynamic ARP inspection Neighbor Discovery (ND) Inspection Bi-level Access Mode (Standard and EXEC Level) EAP pass-through support IEEE 802.1X username export in sFlow Protection against Denial of Service (DoS) attacks Authentication, Authorization, and Accounting (AAA) MAC Address Locking MAC Port Security Advanced Encryption Standard (AES) with SSHv2 RADIUS/TACACS/TACACS+ Secure Copy (SCP) Secure Shell (SSHv2) Protected Ports Local Username/Password Change of Authorization (CoA) RFC 5176 Trusted Platform Module RADSEC (RFC 6614) Encrypted Syslog (RFC 5425
SDN features	OpenFlow1 v1.0 and v1.3 Operates with OpenDayLight Controller OpenFlow hybrid port mode (Supports both OpenFlow traffic forwarding and regular traffic forwarding on the same port)
High availability	Layer 3 VRRP/VRRP-E protocol redundancy Real-time state synchronization across the stack Hitless failover and switchover from master to standby stack controller Hot insertion and removal of stacked units Layer 2 VSRP switch redundancy In Service Software Update (ISSU)
Layer 2 feature set	802.1s Multiple Spanning Tree 802.1x Authentication Auto MDI/MDIX BPDU Guard, Root Guard Dual-Mode VLANs MAC-based VLANs, Dynamic MAC-based VLAN activation Dynamic VLAN Assignment Dynamic Voice VLAN Assignment Fast Port Span GVRP : GARP VLAN Registration Protocol IGMP Snooping (v1/v2/v3) IGMP Proxy for Static Groups IGMP v2/v3 Fast Leave Inter-Packet Gap (IPG) adjustment Link Fault Signaling (LFS) MAC Address Filtering MAC Learning Disable MLD Snooping (v1/v2) Multi-device Authentication Per-VLAN Spanning Tree (PVST/PVST+/PRST) Mirroring: Port-based, ACL-based, MAC Filter-based, and VLAN-based PIM-SM v2 Snooping Port Loop Detection Private VLAN Remote Fault Notification (RFN) Single-instance Spanning Tree Trunk Groups (static, LACP) Uni-Directional Link Detection (UDLD) Metro-Ring Protocol (MRP) (v1, v2) Virtual Switch Redundancy Protocol (VSRP) Q-in-Q and selective Q-in-Q VLAN Mapping Topology Groups
Base Layer 3 IP routing feature set	IPv4 and IPv6 static routes RIP v1/v2, RIPng ECMP Port-based Access Control Lists Layer 3/Layer 4 ACLs Host routes Virtual Interfaces Routed Interfaces Route-only Support Routing Between Directly Connected Subnets
Premium Layer 3 IP routing feature set with software license	IPv4 and IPv6 dynamic routes OSPF v2, v3 PIM-SM, PIM-SSM, PIM-DM, PIM passive (IPv4, IPv6) PBR Virtual Route Redundancy Protocol VRRP (IPv4) VRRP v3 (IPv6) VRRP-E(IPv4/IPv6) VRF (IPv4 and IPv6 GRE

Features

Standard Compliance

IEEE standards compliance

802.1AB LLDP/ LLDP-MED 802.1D MAC Bridging 802.1p Mapping to Priority Queue 802.1s Multiple Spanning Tree (MST) 802.1w Rapid Reconfiguration of Spanning Tree (RSTP) 802.1x Port-based Network Access Control (PNAC) 802.3 Carrier Sense Multiple Access/Collision Detection (CSMA/CD) 802.3ab 1000BASE-T 802.3 10Base-T 802.3ad Link Aggregation (Dynamic and Static) 802.1 AX-2008 Link Aggregation 802.3ae 10 Gigabit Ethernet 802.3af Power over Ethernet 802.3at Power over Ethernet Plus 802.3bz Multigigabit Ethernet 802.3u 100Base-TX 802.3x Flow Control 802.3z 1000Base-SX/LX 802.3 MAU MIB (RFC 2239) 802.1Q VLAN Tagging 802.1BR Bridge Port Extension 802.3az Energy Efficient Ethernet 802.3bt PoE++

Features

Feature Sets

Management

DHCP Auto-Configuration Configuration Logging Digital Optical Monitoring Display Log Messages on Multiple Terminals Embedded Web Management (HTTP/HTTPS) Embedded DHCP Server Industry-standard Command Line Interface (CLI) RUCKUS SmartZone, RUCKUS Cloud*, RUCKUS Unleashed* CLI activation of optional software features USB file management and storage Macro for batch execution Out-of-band Ethernet Management RSPAN TFTP TELNET Client and Server SSH / SSH V2 Bootp SNMPv1/v2c DHCP Server and DHCP Relay SNMPv3 Intro to Framework Architecture for Describing SNMP Framework SNMP Message Processing and Dispatching SNMPv3 Applications SNMPv3 User-based Security Model SNMP View-based Access Control Model SNMP sFlow Network Time Protocol (NTP) Multiple Syslog Servers SCP Virtual Cable Tester (VCT)

Features	Environment
Ambient Temperature	Operational: 0°C to 45°C (32°F to 113°F) at sea level Non-operational: 40°C to 70°C (-40°F to 158°F)
Relative Humidity (non-condensing)	Operational: 10% to 90% at 50°C (122°F) Non-operational: 10% to 90% at 70°C (158°F)
Altitude (above sea level)	Operational 0 to 3,048 m (10,000 ft) Non-operational: 0 to 12,000 m (39,370 ft)

Features	Compliance/Certification
Electromagnetic emissions	FCC Part 15, Subpart B (Class A) EN 55032 (CE mark) (Class A) EN 55035 (CE mark) (Immunity) for Information Technology Equipment EN 55024 (CE mark) (Immunity) for Information Technology Equipment ICES-003 (Canada) (Class A) AS/NZ 55032 (Australia/New Zealand) (Class A) VCCI (Japan) (Class A) EN 300 386 CNS 15936-1 (BSMI) (Taiwan) (Class A) KN 32 (South Korea) (Class A) KN 35 (South Korea) (Class A) TCVN 7189 / TCVN 7317 (Vietnam) (Class A) EN 61000-3-2 EN 61000-3-3
Safety	CAN/CSA-C22.2 No. 62368-1/UL 62368-1 - Safety of Information Technology Equipment EN 60825 Safety of Laser Products - Part 1: Equipment Classification, Requirements and User’s Guide EN 60950-1/IEC 60950-1/EN 62368-1/EC 62368-1 Safety of Information Technology Equipment CNS 15598-1 (BSMI) (Taiwan)
Environmental regulatory compliance	2014/35/EU and 2014/30/EU 2011/65/EU – Restriction of the use of certain hazardous substance in electrical and electronic equipment (EU RoHS) 2012/19/EU – Waste electrical and electronic equipment (EU WEEE) 94/62/EC – packaging and packaging waste (EU) 2006/66/EC – batteries and accumulators and waste batteries and accumulators (EU battery directive) 1907/2006 of the European Parliament and of the Council of 18 December 2006 concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (EU REACH) Section 1502 of the Dodd-Frank Wall Street Reform and Consumer Protection Act of 2010 – U.S. Conflict Minerals 30/2011/TT-BCT – Vietnam circular SJ/T 11363-2006 Requirements for Concentration Limits for Certain Hazardous Substances in EIPs (China) SJ/T 11364-2006 Marking for the Control of Pollution Caused by EIPs (China) CNS 15663 (BSMI) (Taiwan)
Vibration	IEC 68-2-36, IEC 68-2-6
Shock and drop	IEC 68-2-27, IEC 68-2-32
TAA (Trade Agreement Act)	All ICX 8200 SKUs are TAA compliant

Documentation:

Download the RUCKUS® ICX 8200 Switches Datasheet (PDF).

Download the RUCKUS® ICX 8200 Switch Product Line Datasheet (PDF).
