RUCKUS R560
High-Performance Tri-Radio Wi-Fi 6E 2x2:2 Indoor Access Point with 4.7 Gbps max rate and Embedded IoT


CommScope RUCKUS Products

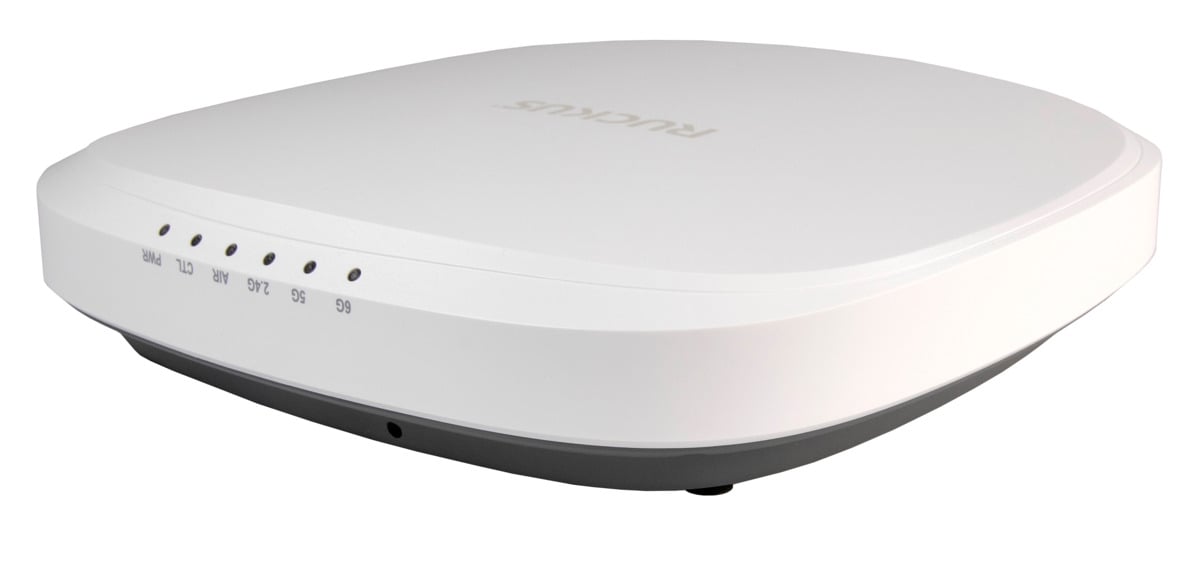

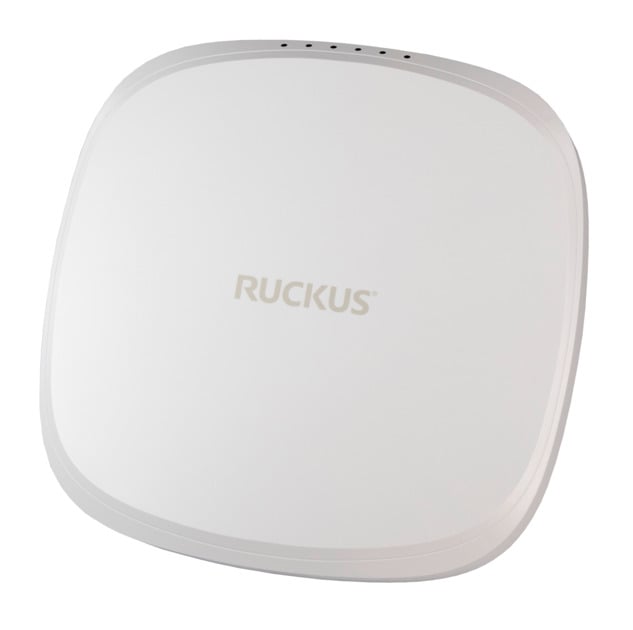

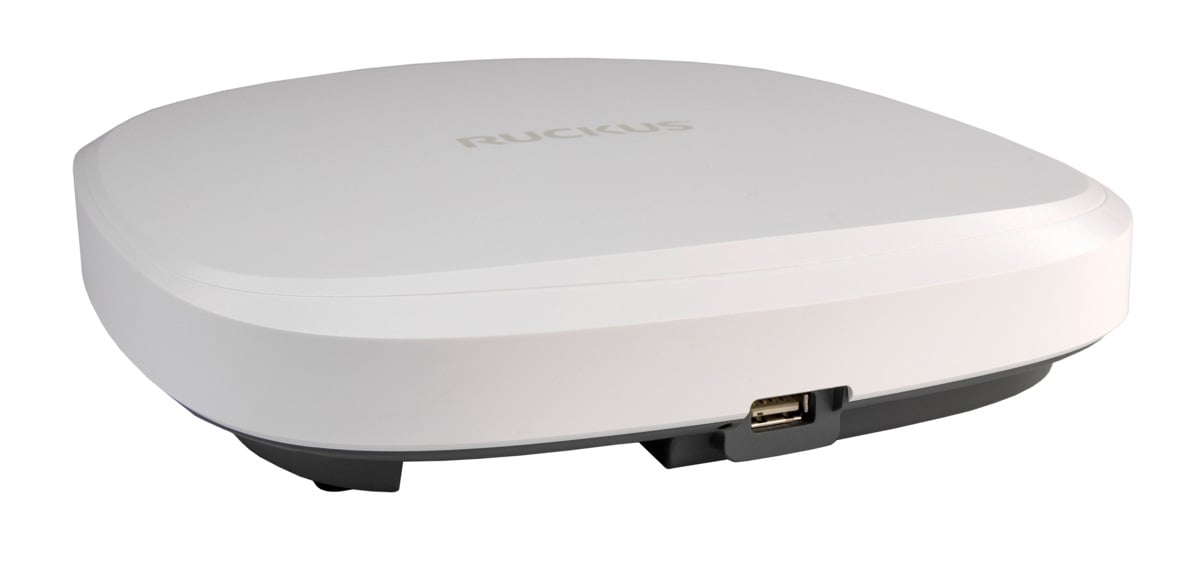

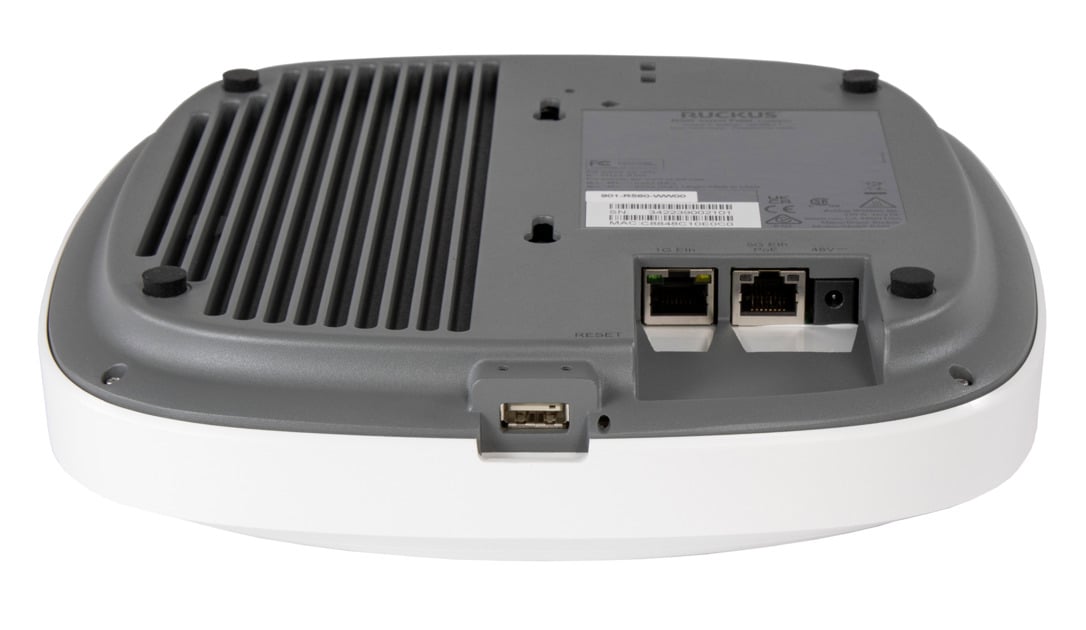

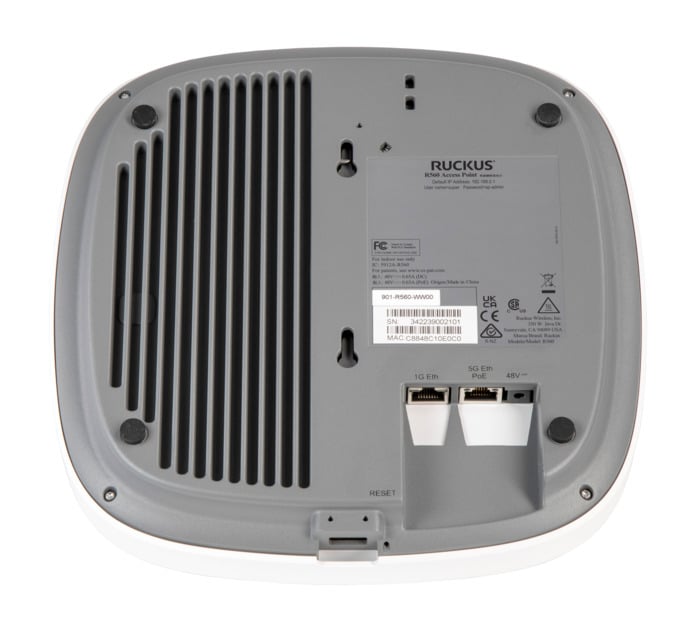

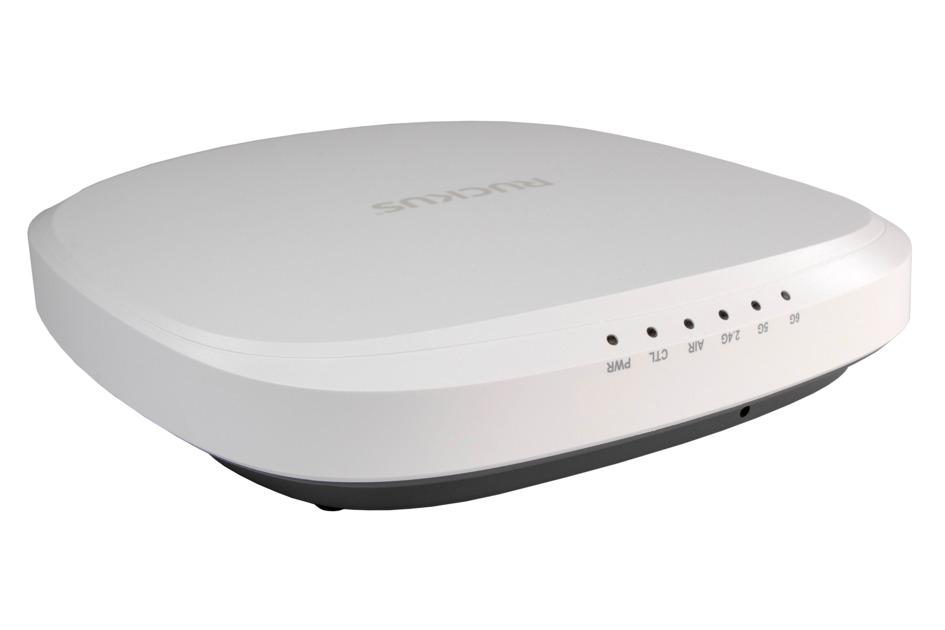

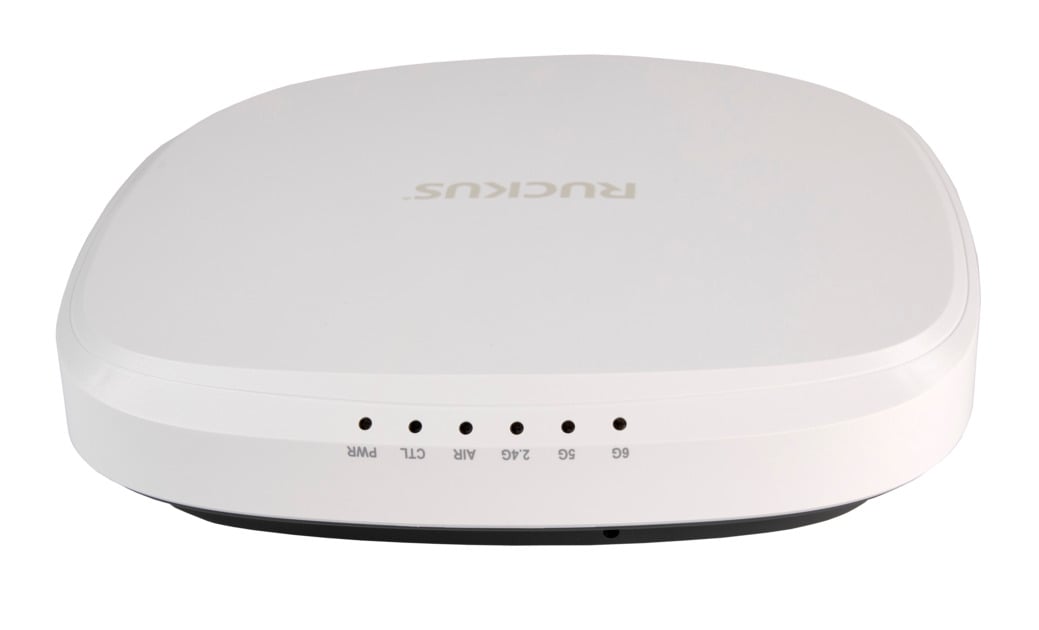

RUCKUS R560 Access Point
RUCKUS R560 Wi-Fi 6E Indoor Access Point
R560 tri-band (6GHz, 5GHz, and 2.4GHz concurrent), tri-radio Wi-Fi 6E wireless access point, 2x2:2 streams, adaptive antennas, dual ports, onboard BLE and Zigbee, PoE support. Includes adjustable acoustic drop ceiling bracket. One Ethernet port is 5GbE. Does not include power adaptor.
#901-R560-US00
Our Price: $1,595.00

More pricing below, click here!

Overview:

Bandwidth-hungry ultra-high definition video, virtual reality, Internet of Things (IoT). An explosion of new devices and content. With these kinds of demands, organizations in every industry need more from their Wi-Fi. But with hundreds of devices and nonstop wireless noise and interference, busy indoor spaces can make challenging wireless environments.

The RUCKUS R560 is a mid-range Wi-Fi 6E tri-radio, tri-band concurrent indoor AP that delivers 6 spatial streams (2x2:2 concurrent in 2.4GHz, 5GHz, and 6GHz) and supports OFDMA, TWT and MU-MIMO capabilities. It delivers industry-leading performance and reliability in demanding high-density environments with a combined data rate of 4.7 Gbps and efficiently managing up to 1536 clients. Furthermore, a 5 Gbps Ethernet port ensures the backhaul is not a bottleneck for full use of available Wi-Fi capacity.

Also, wireless requirements within enterprises are expanding beyond Wi-Fi. The R560 has built-in IoT radios with onboard BLE and Zigbee capabilities. In addition, the R560 is a converged access point that allows customers to seamlessly integrate any new wireless technologies with our USB port.

The R560 addresses the increasing client demands in transit hubs, auditoriums, conference centers, and other high traffic indoor spaces. It is the perfect choice for data-intensive streaming multimedia applications like 4K video transmissions, while supporting latency sensitive voice and data applications with stringent quality-of-service requirements.

The R560, with built-in RUCKUS exclusive technology, dramatically improves network performance through a combination of patented wireless innovations and learning algorithms that includes:

  • Airtime Decongestion: Increases average network throughput in heavily congested environments
  • Transient Client management: Reduces interference traffic from unconnected Wi-Fi devices
  • BeamFlex®+ Adaptive Antennas: Extended coverage range and optimized throughput with patented dynamic multi-directional antennas and radio patterns and work with any client.

Whether you are deploying ten or ten thousand APs, the R560 is also easy to manage through RUCKUS multiple management options including cloud based and on premises controllers.
