RUCKUS ZoneDirector 1200 Series
Enterprise-Class Smart Wireless Lan Controller
Sorry, this product is no longer available, please contact us for a replacement.
More pricing below, click here!
RUCKUS ZoneDirector 1200 Overview:
The Wireless LAN Solution For SMBs
Full-featured Smart Wireless LAN Controller
The RUCKUS Networks ZoneDirector 1200 is Ruckus’ centrally managed Smart Wireless LAN (WLAN) system developed specifically for small-to-medium enterprises (SMEs).
With simplicity and ease of use in mind, the RUCKUS ZoneDirector 1200 is purpose-built to address the gap between standalone, feature-deficient access points (APs) that must be individually managed and the costly, complex highend enterprise systems that are overkill for most small business environments.
The RUCKUS ZoneDirector is ideal for small businesses that require a robust and secure WLAN that can be easily deployed, centrally managed and automatically tuned.
The ZoneDirector 1200 is also perfect for businesses who want to provide services such as voice over Wi-Fi, IP-based video, secure enterprise access and tiered Wi-Fi services in venues such as hotels, airports, schools and public buildings.
The ZoneDirector 1200 integrates the RUCKUS Smart/OS application engine that delivers advanced features such as smart wireless meshing, high availability, hotspot authentication, elegant guest networking and dynamic Wi-Fi security.
The RUCKUS ZoneDirector 1200 can be deployed and operated by non-wireless experts and installed quickly and easily. Any organization with limited IT staff and budget can create a robust and secure multimedia WLAN in a matter of minutes.
The RUCKUS ZoneDirector easily integrates with network, security and authentication infrastructure already in place and is easily configured through a pointand- click web-based wizard. RUCKUS ZoneFlex APs automatically discover and are configured by the ZoneDirector. Redundant and secure, the RUCKUS ZoneDirector provides WLAN-wide network, security, RF and location management within a single, easy-to-use and affordable WLAN system.
Simple to Deploy

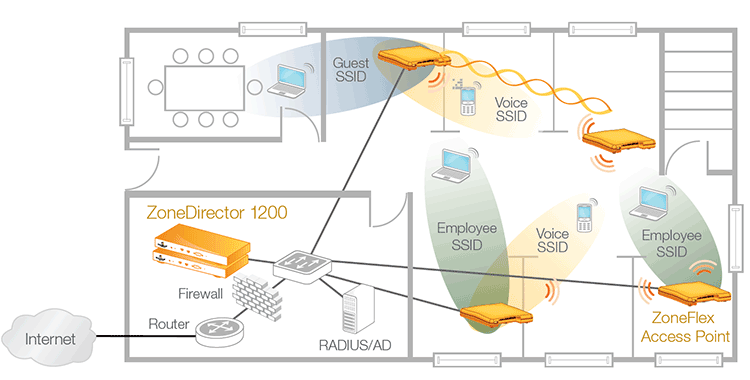

The RUCKUS ZoneDirector integrates seamlessly with existing switches, firewalls, authentication servers and other network infrastructure. The ZoneDirector can be placed within any Layer 2/3 network. RUCKUS ZoneFlex APs (whether wired or mesh APs using Smart Mesh Networking) automatically discover the RUCKUS ZoneDirector, self configure and become instantly manageable. RUCKUS Smart Redundancy ensures high network availability and is easy to use with automatic synchronization of configuration and authorized users between ZoneDirectors.
Simple to Manage
Once up and running, the ZoneDirector automatically manages the ZoneFlex network of APs — automatically adjusting transmit power levels and RF channel assignments as needed to avoid interference, prevent adjacent APs from interfering and enable redundant coverage in the event of an AP failure. Configuration changes can easily be applied to multiple APs or the entire system simultaneously. A customizable dashboard provides instant access to a variety of client and network information and events, and a real time heat map displays AP locations and signal coverage, as well as your RUCKUS Smart Mesh Networking topology.
ZoneDirector Smart WLAN systems integrate a unique performance utility from RUCKUS called SpeedFlex™. RUCKUS SpeedFlex allows administrators to locally or remotely determine client Wi-Fi performance over the wireless LAN. With SpeedFlex, administrators can now better plan, troubleshoot, monitor and measure WLAN performance, eliminating the need to use Internet-based speed tools that often provide inaccurate results of the local Wi-Fi environment.
Simple to Secure
The ZoneDirector 1200 provides innovative new techniques that simplify and automate Wi-Fi security. In addition to enter- prise-class 802.1x support and dynamic VLAN assignment capabilities, the ZoneDirector 1200 supports a patent-pending Dynamic Pre-Shared Key (PSK) capability that streamlines WLAN security.
First-time users plug their computers into the LAN and specify a URL that directs them to a captive web portal for a one-time authentication. After successful authentication, the ZoneDirector automatically configures the client system with the designated SSID and a dynamically-generated encryption key. The key is bound to the client, and can be removed upon expiration when the user or the user’s device is no longer trusted.
The RUCKUS ZoneDirector centralizes authentication and authorization decisions for all APs, providing secure admission control across the WLAN. It works with any backend authen- tication database such as RADIUS and ActiveDirectory/LDAP and also comes with an internal authentication database. Additionally, clients can be dynamically assigned to a VLAN based on their RADIUS attributes.
Avoid Interference, Maximize Performance and Extend Reach with BeamFlex
RUCKUS BeamFlex, a patented Wi-Fi beam-steering technology, ensures predictable performance for multimedia traffic applications and extends range to eliminate Wi-Fi deadspots. With the ZoneDirector, the value of BeamFlex is extended beyond a single access point to the system-wide WLAN and smart wireless meshing.
The ZoneDirector automatically controls the channels assignments and transmit power levels of all ZoneFlex Smart Wi-Fi APs. And with BeamFlex, the ZoneFlex system continuously picks the best path for every packet, to both clients outside the network and mesh APs inside the network, automatically avoiding interference to guarantee the highest quality of service.
Smart Mesh Networking Increases Flexibility, Reduces Costs
RUCKUS Smart Mesh Networking enables self-organizing and self-healing WLAN deployment. It eliminates the need to run Ethernet cables to every AP, allowing administrators to simply plug in ZoneFlex APs to any power source and walk away. All configuration and management is delivered through the ZoneDirector Smart WLAN controller. APs can also be daisychained to mesh APs to extend the mesh and take advantage of spatial reuse. Smart meshing uses patented Smart Wi-Fi technology to extend range and control Wi-Fi signals to minimize inter-nodal hops that degrade performance and automatically adapt Wi-Fi connections between nodes to maintain ultra high reliability.

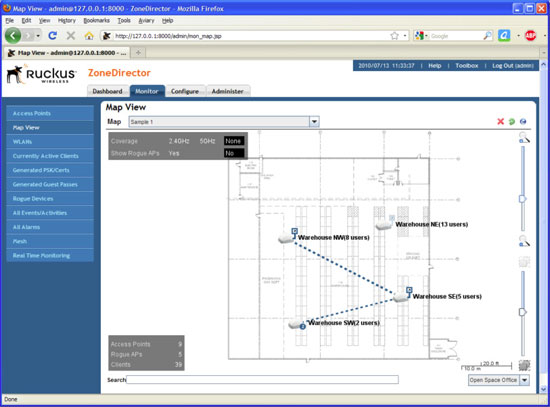

The ZoneDirector 1200 provides a detail map view that lets administrators quickly see the Wi-Fi network topology for all ZoneFlex Smart Wi-Fi access points.
Central control and configuration of up to 75 ZoneFlex APs
Pricing Notes:
- Pricing and product availability subject to change without notice.
Our Price: $229.95
Our Price: $493.50
*Max orderable upgrade license quantity is 70. Requires Purchase of at least 1 year of WatchDog Premium Support for each additional license.
Our Price: $150.00
Our Price: $229.95
Our Price: $493.50
Our Price: $31.50
Our Price: $68.25
Our Price: $31.50
Our Price: $68.25
Our Price: $115.50
Our Price: $246.75
Includes Support Renewal & License upgrades to bring the redundant ZD to the same level as Primary ZD. Must purchase with ZD 1205 (PN # 901-1205-xx00) or use with existing redundant ZD 1200.
Our Price: $115.50
Includes Support Renewal & License upgrades to bring the redundant ZD to the same level as Primary ZD. Must purchase with ZD 1205 (PN # 901-1205-xx00) or use with existing redundant ZD 1200.
Our Price: $246.75
Our Price: $30.00
