RUCKUS R750 Unleashed
Indoor 802.11ax Wi-Fi Access Point for Ultra-Dense Environments

Overview:

The R750 is based on the latest Wi-Fi 6 standard and bridges the performance gap from ‘gigabit’ Wi-Fi to ‘multi-gigabit’ Wi-Fi in support of the insatiable demand for better and faster Wi-Fi.

The R750 makes it easy to deliver reliable, secure, high-performance connectivity in transit hubs, auditoriums, conference centers and other high traffic indoor spaces.

The RUCKUS R750 is our high-end dual-band, dual-concurrent Wi-Fi 6 AP that supports 8 spatial streams (4x4:4 in 5GHz, 4x4:4 in 2.4GHz). The R750, with OFDMA and MU-MIMO capabilities, efficiently manages up to 1024 client connections with increased capacity, improved coverage and performance in ultra-high dense environments.

Also, wireless requirements within enterprises are expanding beyond Wi-Fi with BLE, Zigbee and many other non-Wi-Fi wireless technologies. Enterprises need a unified platform to eliminate network silos. The RUCKUS AP portfolio is equipped to solve these challenges through wireless convergence.

The R750 is also easy to manage through RUCKUS physical and virtual cloud management options.

Features:

CONNECT MORE DEVICES SIMULTANEOUSLY

Improve device performance, by enabling more simultaneous device connections with built-in 8 spatial streams (4x4:4 in 5GHz, 4x4:4 in 2.4GHz), MU-MIMO and OFDMA technology.

HIGH DENSITY PERFORMANCE

Provides exceptional end-user experience within large meeting halls, general enterprise spaces, and large classrooms with the RUCKUS Ultra-High-Density Technology Suite.

CONVERGED ACCESS POINT

Allows customers to eliminate siloed networks and unify WiFi and non-WiFi wireless technologies into one single network by using built-in BLE and Zigbee, and also expanding to any future wireless technologies through the USB port.

MULTIGIGABIT ACCESS SPEEDS

Optimized multi-gigabit Wi-Fi performance delivered using the built-in 2.5GbE port to connect to multigigabit switches.

MULTIPLE MANAGEMENT OPTIONS

Manage the R750 with on premise physical/ virtual appliances and control auto-provisioning for faster deployment and seamless firmware upgrades.

ENHANCED SECURITY

Enhanced securityThe latest Wi-Fi security standard with WPA3 and receive enhanced protection from man-in-the-middle attacks in the most secure way.

MORE THAN WI-FI

Support services beyond Wi-Fi with RUCKUS IoT Suite, Cloudpath security and onboarding software, SPoT Wi-Fi locationing engine, and SCI network analytics.

RUCKUS Unleashed:

Want blazing-fast Wi-Fi performance? Simple installation and management? Business-class security and resiliency? Enterprise-class features? And all at an affordable cost? Welcome to RUCKUS Unleashed. These access points (APs) use our patented technologies to deliver Ruckus’ industry-leading Wi-Fi performance, but in a package designed and priced for small and medium-size businesses (SMBs) and organizations

Introducing RUCKUS Unleashed

RUCKUS Unleashed is a high-performance, simple-to-setup, easy-to-manage and affordable portfolio of access points. With built-in controller functionality, there’s no need to invest in a separate appliance. You can manage your entire network (APs and switches) from your phone or web browser. Deploying at multiple sites? Manage all your Wi-Fi networks from one place through the Unleashed Multi-Site Manager. You can get your network up and running in under 5 minutes

Where can RUCKUS Unleashed deliver maximum value?

RUCKUS Unleashed APs and switches are designed for small and midsize businesses with a single location or multiple locations with up to 128 APs, 2048 clients and 8 switches per deployment. They’re the perfect choice for smaller organizations that need to provide high-performing, enterprise Wi-Fi to employees, customers and guests without breaking the bank. Using the Unleashed mobile app, Unleashed APs can be managed by practically anyone—no specialized IT expertise required. And Unleashed APs are designed to easily scale up as the business grows—a key requirement for the 58% of SMBs that expect to grow within the next 6–12 months.

Enterprise-grade features

RUCKUS Unleashed APs and switches come loaded with enterprise-grade features to customize, optimize and secure your Wi-Fi networks and deliver great user experiences. Key features are highlighted below.

Specifications:

	R750	R730	R720	R710
	Learn More	Learn More	Learn More	Learn More
Feature/Description	High-end 802.11ax 4x4 dual concurrent AP with MU-MIMO, BeamFlex+ and 2.5Gbps backhaul	High-end 802.11ax 8x8 dual concurrent AP with MU-MIMO, BeamFlex+ and 5Gbps backhaul	High-end 802.11ac Wave 2 dual- concurrent AP with MU-MIMO BeamFlex+ and 2.5Gbps backhaul	High-end 802.11ac Wave 2 dual- concurrent AP with MU-MIMO and BeamFlex+
Maximum PHY rate	2400 Mbps (5GHz) 1148 Mbps (2.4GHz)	4800 Mbps (5GHz) 1148 Mbps (2.4GHz)	1733  Mbps (5GHz) 600  Mbps (2.4GHz)	1733  Mbps (5GHz) 600  Mbps (2.4GHz)
Wi-Fi technology	802.11ax (2.4GHz, 5GHz) Wi-Fi CERTIFIED 6™	802.11ax (2.4 GHz, 5GHz)	802.11ac (5GHz) 802.11n (2.4GHz)	802.11ac (5GHz) 802.11n (2.4GHz)
Concurrent users	1024	1024	512	512
Radio chains:streams	4x4:4	8x8:8	4x4:4	4x4:4 SU-MIMO 4x4:3 MU-MIMO
Antenna patterns (per band)	4,000+	4,000+	4,000+	4,000+
Antenna gain	Up to 3dbi	Up to 2dBi	Up to 3dBi	Up to 3dBi
PD-MRC
Rx sensitivity (2.4/5GHz)	-102dBm	-103/-101dBm	-104dBm	-104dBm
ChannelFly
SmartMesh
USB (IoT Ready)

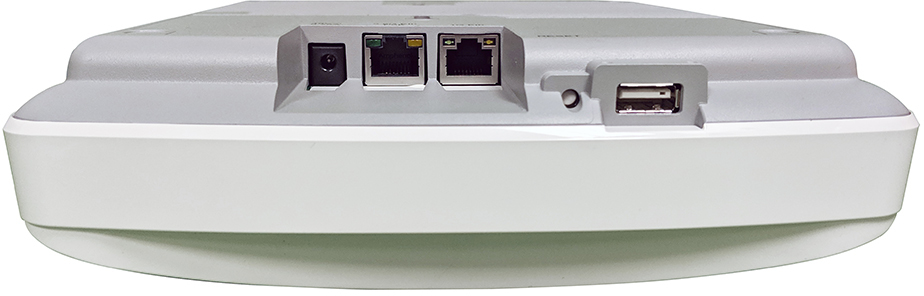

Ethernet ports	1x1GbE 1x2.5GbE	1x 1/2.5/5 Gbps 1x 10/100/1000 Mbps	1 x 1GbE and 1 x 2.5GbE	2 x 1GbE
Integrated BLE/ZigBee			—	—
WLAN Control and Management	·   ZoneDirector ·   SmartZone ·   Unleashed ·   RUCKUS Cloud	·   ZoneDirector ·   SmartZone ·   RUCKUS Cloud	·   ZoneDirector ·   SmartZone ·   Unleashed ·   RUCKUS Cloud	·   ZoneDirector ·   SmartZone ·   Unleashed ·   RUCKUS Cloud

Product Comparison:

Indoor Access Points

Outdoor Access Points

*All access points operating as a Master AP will only support 100 clients.

Documentation:

Download the RUCKUS Unleashed Product Family datasheet (PDF).
