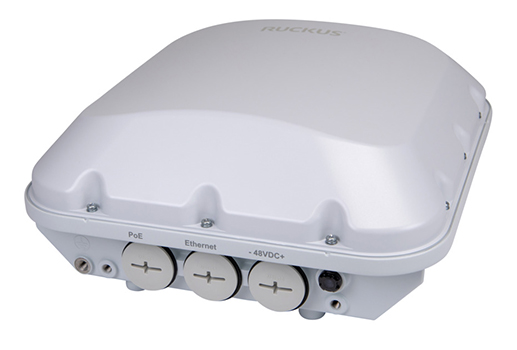

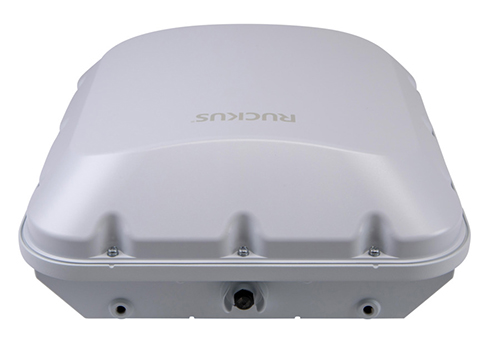

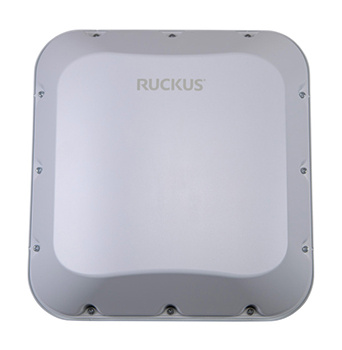

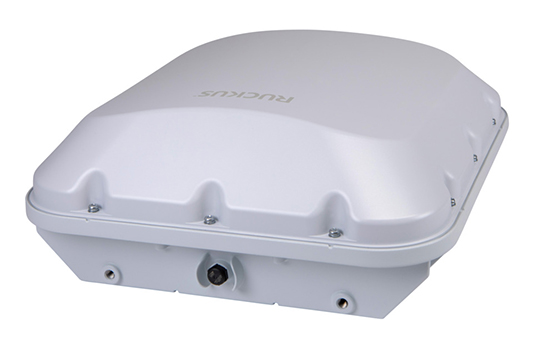

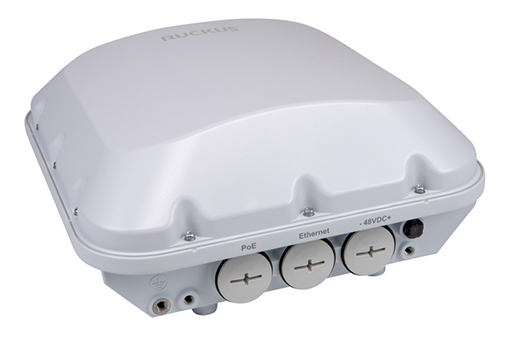

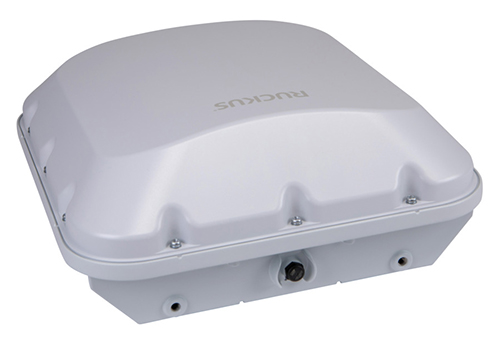

RUCKUS T670 Outdoor Access Point
High-Performance Wi-Fi 7 2x2:2 Outdoor Access Point with 9.3 Gbps max rate

Overview:

Bandwidth-hungry ultra-high definition video, virtual reality, an explosion of new devices and content. With these kinds of demands, organiza੏ons in every industry need more from their Wi-Fi. But with hundreds of devices and nonstop wireless noise and interference, busy outdoor spaces can make challenging wireless environments.

The dawn of the Wi-Fi 7 era ushers in a new wave of possibilities. With its groundbreaking advancements in speed, capacity, latency, and reliability, Wi-Fi 7 will transform the way we connect and interact with the digital world.

From seamless streaming of ultra-high-definition content to immersive virtual and augmented reality experiences, Wi-Fi 7 enables applications that were previously unimaginable. Real-time social gaming can reach new heights, allowing for lag-free, competitive multiplayer experiences with unparalleled responsiveness.

Moreover, industriessuch as hospitality and education can benefit immensely from Wi-Fi 7 low latency and high reliability. Other verticals like, MDUs, large public venues and service providers gain greatly from Wi-Fi 7 unprecedented advancements in speed and capacity

The RUCKUS T670 is a high-end Wi-Fi 7, tri-band concurrent outdoor AP that delivers 6 spatial streams (2x2:2 in 2.4GHz/5GHz/6GHz or, in dual-band mode, 2x2:2 in 2.4GHz and 4x4:4 in 5GHz. With Multi-Link-Operation (MLO), Preamble Puncturing, 4K QAM Modulation and 320MHz channels). It delivers industry-leading performance environments with a combined data rate of 9.34 Gbps. Furthermore, a 5 Gbps Ethernet port eliminates wired backhaul bottleneck for full use of available Wi-Fi capacity.

The T670 addresses the increasing client demands in transit hubs, stadiums, conference centers, and other high |r-Lc outdoor spaces. It is the perfect choice for data-intensive streaming multimedia applications like 4K/8K video transmissions, while supportung latency sensitive voice and data applications with stringent quality-of-service requirements.

The T670, with built-in RUCKUS exclusive technology, dramatically improves network performance through a combination of patented wireless innovations and learning algorithms that includes:

• Airtime Decongestion: Increases average network throughput in heavily congested environments
• Transient Client management: Reduces interference traffic from unconnected Wi-Fi devices
• BeamFlex®+ Adaptive Antennas: Extended coverage range and optimized throughput with patented dynamic multi-directional antennas and radio patterns and work with any client.

Whether you are deploying ten or ten thousand APs, the T670 is also easy to manage through RUCKUS multiple management options including cloud based and on premises controllers.

Features and Benefits:

In today’s connected world, the expectation for seamless internet access extends far beyond the confines of indoor environments. Outdoor access points are becoming pivotal in various settings, such as parks, urban spaces, hospitality venues and sports complexes providing robust wireless connectivity that supports a range of activities and services. Additionally, outdoor Wi-Fi APs are commonly used by service providers for mobile data offload.

The RUCKUS T670 is a high density, high throughput, low latency tri-band AI-driven Wi-Fi 7 outdoor AP engineered to meet the demands of the most challenging environments, providing unprecedented performance in high-density settings such as stadiums, public venues, and smart cities.

The RUCKUS T670 is driven by RUCKUS AI™, a cloud service for network assurance and business intelligence to enhance Wi-Fi 7 network resilience, and enhanced by RUCKUS BeamFlex® technology, a patented smart directional antenna system built into the AP. These superior technologies enable:

• Superior Throughput and Capacity
• Reduced Latency
• Adaptive Resilience

The RUCKUS T670 supports two Radio configurations to support different regulatory domains:

• Tri-band (2.4 GHz +5 GHz +6 GHz) for the US and Canada: This configuration supports Wi-Fi 7 simultaneously on 2.4GHz, 5GHz, and 6GHz frequency bands, with a maximum physical data rate of 9.336 Gbps.
• Dual-band (2+5) for global use: This setup offers Wi-Fi 7 simultaneously on both 2.4GHz and 5GHz frequency bands, with a maximum physical data rate of 6.454 Gbps.

Benefits:

• Connect more devices simultaneously
  Improve device performance, by enabling more simultaneous device connections with 6 spatial treams (2x2:2 in 2.4GHz, 5GHz, and 6GHz) technology. 9.34 Gbps Combined data rate.


• High client density and performance
  Provides exceptional end-user experience within large meeting halls, general enterprise spaces, and large classrooms


• BeamFlex+ Adaptive Antenna Technology
  For greater speed, fewer errors, and instant bandwidth delivery, RUCKUS BeamFlex+ patented technology offers first-of-its-kind smart antenna technology that maximizes signal coverage, throughput, and network capacity and work with any client. It further increases MIMO diversity gain and maximizes spatial multiplexing potential.


• Great Outdoor Wi-Fi
  Experience high performance outdoor Wi-Fi 7 with IP-67 weather proofing and multi-gigabit 5 GbE Ethernet port.


• 5 GbE eliminates bottleneck
  Optimized multi-gigabit Wi-Fi performance delivered using the built-in 1/2.5/5GbE port to connect to multi-gigabit switches.


• Multiple management options
  Manage the T670 with on premise physical/ virtual appliances and control auto-provisioning for faster deployment and seamless firmware upgrades.


• Enhanced Security
  The latest Wi-Fi security standard with WPA3 and receive enhanced protection from man-in-the-middle attacks. Adds the power of RUCKUS DPSK3 to WPA3/SAE combining enhanced security with the flexibility and ease of use of dynamic passphrase to secure network access.


• More Than Wi-Fi
  Support solutions beyond Wi-Fi with RUCKUS AI, RUCKUS One, RUCKUS Cloudpath Enrollment System and onboarding software.

Specifications:

WI-FI
Wi-Fi Standards	IEEE 802/11a/b/g/n/ac/ax/be, Wi-Fi 7
Supported Rates	802.11be: 4 to 5765 Mbps 802.11ax: 4 to 4804 Mbps 802.11ac: 6.5 to 866 Mbps 802.11n: 6.5 to 300 Mbps 802.11a/g: 6 to 54 Mbps 802.11b: 1 to 11 Mbps
Supported Channels	2.4GHz: 1-13 5GHz: 36-64, 100-144, 149-165 6GHz: 1-233
MIMO	2x2 SU-MIMO in tri-band mode. 4x4(5GHz) in dual-band 2x2 MU-MIMO in tri-band mode. 4x4(5GHz) in dual-band
Spatial Streams	2 in tri-band mode or 4 in dual-band mode at 5GHz
Radio Chains and Streams	2x2:2 in all 3 bands. 4x4:4(5GHz) in dual-band mode
Channelization	20, 40, 80, 160, 320 MHz
Security	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3, WPA3-SAE, OWE, PMF (802.11w), Dynamic PSK, DPSK3 WIPS/WIDS. TPM 2.0, Secure Boot
Other Wi-Fi Features	WMM, Power Save, Tx Beamforming, LDPC, STBC, 802.11r/k/v, MBO MLO (Multi-link operation ), Preamble Puncturing Web Authentication and Guest Access Hotspot, Hotspot 2.0 Captive Portal WISPr

RF
Antenna Type	BeamFlex+ adaptive antennas with polarization diversity Adaptive antenna that provides 4,000+ unique antenna patterns per band
Antenna Gain (max)	Up to 4dBi
Peak Transmit Power (Tx port/ chain + Combining gain)	2.4GHz: 26dBm 5GHz: 25dBm(2x2). 28dBm(4x4) 6GHz: 25dBm
Frequency Bands	ISM (2.4-2.484GHz) U-NII-1 (5.15-5.25GHz) U-NII-2A (5.25-5.35GHz) U-NII-2C (5.47-5.725GHz) U-NII-3 (5.725-5.85GHz) U-NII-5 (5.925–6.425GHz) U-NII-6 (6.425–6.525GHz) U-NII-7 (6.525–6.875GHz) U-NII-8 (6.875–7.125GHz)

2.4GHZ RECEIVE SENSITIVITY (dBm)
HT20		HT40		VHT20		VHT40
MCS0	MCS7	MCS0	MCS7	MCS0	MCS7	MCS0	MCS7
-97	-79	-94	-76	-97	-79	-94	-76
HE20/EHT20				HE40/EHT40
MCS0	MCS7	MCS9	MCS11	MCS0	MCS7	MCS9	MCS11
-97	-79	-74	-68	-94	-76	-71	-65

5GHZ RECEIVE SENSITIVITY (dBm) in 2x2 tri-band mode
HT20/VHT20				HT40/VHT40				VHT80
MCS0	MCS7	MCS8	MCS9	MCS0	MCS7	MCS8	MCS9	MCS0	MCS7	MCS8	MCS9
-96	-79	-76	-73	-93	-75	-73	-70	-90	-72	-70	-67
HE20/EHT20			HE40/EHT40			HE80/EHT80			HE160/EHT160
MCS0	MCS9	MCS13	MCS0	MCS9	MCS13	MCS0	MCS9	MCS13	MCS0	MCS9	MCS13
-96	-73	-61	-93	-70	-58	-90	-67	-55	-87	-64	-52

5GHZ RECEIVE SENSITIVITY (dBm) in 4x4 dual-band mode
HT20/VHT20				HT40/VHT40				VHT80
MCS0	MCS7	MCS8	MCS9	MCS0	MCS7	MCS8	MCS9	MCS0	MCS7	MCS8	MCS9
-100	-82	-79	-76	-97	-79	-76	-73	-94	-76	-73	-70
HE20/EHT20			HE40/EHT40			HE80/EHT80			HE160/EHT160
MCS0	MCS9	MCS13	MCS0	MCS9	MCS13	MCS0	MCS9	MCS13	MCS0	MCS9	MCS13
-100	-76	-64	-97	-73	-61	-94	-70	-58	-91	-67	-55

6GHZ RECEIVE SENSITIVITY (dBm)
HE20/EHT20			HE40/EHT40			HE80/EHT80
MCS0	MCS9	MCS13	MCS0	MCS9	MCS13	MCS0	MCS9	MCS13
-96	-73	-61	-93	-70	-58	-90	-67	-55

HE160/EHT160				EHT320
MCS0	MCS9	MCS11	MCS13	MCS0	MCS9	MCS11	MCS13
-87	-64	-58	-52	-84	-61	-55	-49

2.4GHZ TX POWER TARGET (PER CHAIN)
Rate	Pout (dBm)
MCS0, HT20	22
MCS7, HT20	19
MCS9, VHT20	18
MCS11, HE40	16
MCS13, EHT40	12

5GHZ TX POWER TARGET (PER CHAIN)
Rate	Pout (dBm)
MCS0, HT40	22
MCS7, HT40	19
MCS9, VHT80	17.5
MCS11, HE160	16
MCS13, EHT160	14

6GHZ TX POWER TARGET (PER CHAIN)
Rate	Pout (dBm)
MCS0, HT40	22
MCS7, HT40	17.5
MCS9, VHT80	16.5
MCS11, HE160	15
MCS13, EHT160	13

POWER CONSUMPTION
Mode	Power Consumption	System Configuration	Wi-Fi Radios
DC Power	33W	5Gbps Ethernet Enabled 1Gbps Ethernet Enabled GPS Enabled	2.4GHz (2x2) Tx 22dBm 5GHz (2x2) Tx 22dBm 6GHz (2x2) Tx 22dBm
802.3bt5 PoH, uPoE	33W	5Gbps Ethernet Enabled 1Gbps Ethernet Enabled GPS Enabled	2.4GHz (2x2) Tx 22dBm 5GHz (2x2) Tx 22dBm 6GHz (2x2) Tx 22dBm
802.3at	25.5W	5Gbps Ethernet Enabled 1Gbps Ethernet Disabled GPS Enabled	2.4GHz (2x2) Tx 16dBm 5GHz (2x2) Tx 17dBm 6Ghz (2x2) Tx 17dBm

PERFORMANCE AND CAPACITY
Peak PHY Rates	2.4GHz: 689 Mbps 5GHz: 5765 Mbps (4x4:4) or 2882 Mbps (2x2:2) 6GHz: 5765 Mbps
Client Capacity	Up to 768 clients per AP
SSID	Up to 36 per AP

RUCKUS RADIO MANAGEMENT
Antenna Optimization	BeamFlex+ Polarization Diversity with Maximal Ratio Combining (PD- MRC)
Wi-Fi Channel Management	ChannelFly Background Scan Based
Client Density Management	Adaptive Band Balancing Client Load Balancing Airtime based WLAN Prioritization Airtime Fairness
SmartCast Quality of Service	QoS-based scheduling, QoS Mirroring Directed Multicast L2/L3/L4 ACLs
Mobility	SmartRoam
Diagnostic Tools	Spectrum Analysis SpeedFlex

NETWORKING
Controller Platform Support	SmartZone RUCKUS Unleashed RUCKUS One
Mesh	SmartMesh™ wireless meshing technology. Self-healing Mesh in 2.4 GHz, 5GHz, and 6GHz
IP	IPv4, IPv6, dual stack
VLAN	802.1Q (1 per BSSID or dynamic per user based on RADIUS) VLAN Pooling Port-based
802.1x	Authenticator and Supplicant
Tunnel	GRE, Soft-GRE
Policy Management Tools	Application Recognition and Control Access Control Lists Device Fingerprinting Rate Limiting URL Filtering

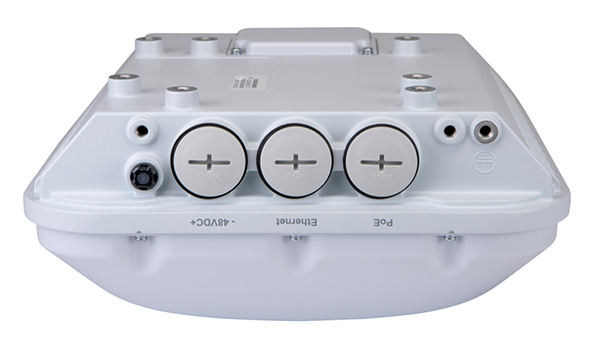

PHYSICAL INTERFACES

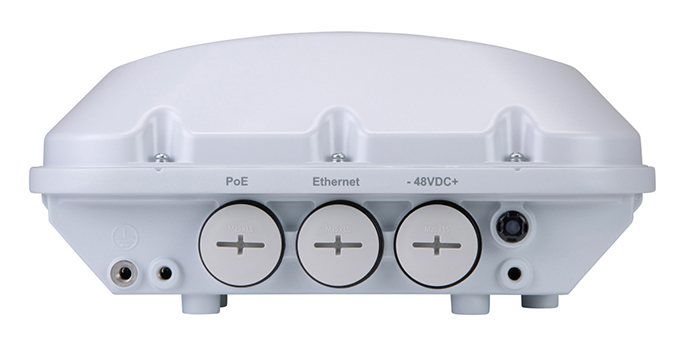

Ethernet	One 100M/1/2.5/5GbE (PoE) port and one 10M/ 100M/1GbE port Power over Ethernet (802.3af/at/bt) with Category 5e (or better) cable LLDP support
DC Power	48V DC Power Jack

PHYSICAL CHARACTERISTICS
Physical Size	24.8cm (L), 23.8cm (W), 10.8.cm (H) 9.8in (L) x 9.4in (W) x 4.3in (H)
Weight	2.8kg 5lbs

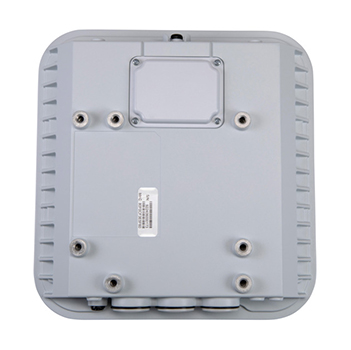

Mounting	Wall Mount, Pole Mount, Flat Surface Bracket included in the box
Wind Survivability	165 Miles Per Hour
Operating Temperature	-40°C (-40°F) to 65°C (145°F)
Operating Humidity	Up to 95%, non-condensing

CERTIFICATIONS AND COMPLIANCE
Wi-Fi Alliance1	Wi-Fi CERTIFIED™ a, b, g, n, ac, ax, be (Wi-Fi 6, Wi-Fi 7) Passpoint®, Vantage
Standards Compliance2	IEC/EN/UL 60950-1 Safety IEC/EN/UL 62368-1 Safety EN 60601-1-2 Medical EN 61000-4-2/3/5 Immunity EN 50121-1 Railway EMC EN 50121-4 Railway Immunity IEC 61373 Railway Shock & Vibration UL 2043 Plenum EN 62311 Human Safety/RF Exposure WEEE & RoHS ISTA 2A Transportation

SOFTWARE AND SERVICES
Cloud Based Services	RUCKUS One
Network Analytics	RUCKUS AI (Formerly known as RUCKUS Analytics)
Security and Policy	Cloudpath

Note:

1. For complete list of WFA certifications, please see Wi-Fi Alliance website.
2. For current certification status, please see price list
