RUCKUS T750 Outdoor Access Point
Outdoor 4x4:4 Wi-Fi 6 Access Point with 2.5Gbps Backhaul

CommScope RUCKUS Products
RUCKUS T750 Series
Ruckus T750 802.11ax Outdoor Wireless Access Point, 4x4:4 Stream, Omnidirectional Beamflex+ coverage, 2.4GHz and 5GHz concurrent dual band, (1x) 2.5G Ethernet port, (1x) 10/100/1000 Ethernet port, 100-240 Vac, POE in and PSE out, Fiber SFP/SFP+, GPS, IP-67 Outdoor enclosure, -40 to 65C Operating Temperature
*At least 1 Year of Support is recommended with your AP purchase.
#901-T750-US01
Our Price: $3,775.00
Ruckus T750S 802.11ax Outdoor Wireless Access Point, 4x4:4 Stream, 120-Degree Sector antenna included and option to attach external antennae, 2.4GHz and 5GHz concurrent dual band, (1x) 2.5G Ethernet port, (1x) 10/100/1000 Ethernet ports, 100-240 Vac, POE in and PSE out, Fiber SFP/SFP+, GPS, IP-67 Outdoor enclosure, -40 to 65C Operating Temperature.
#901-T750-US51
Our Price: $3,775.00
Support for T750
RUCKUS Support for ZoneFlex T750 , 1 year
#806-T750-1000
Our Price: $514.50
RUCKUS Support for ZoneFlex T750 , 3 year
#806-T750-3000
Our Price: $1,027.95
RUCKUS Support for ZoneFlex T750 , 5 year
#806-T750-5000
Our Price: $1,541.40

More pricing below, click here!

Overview:

Ruckus’ High Capacity, High Performance Four-Stream 802.11ac Wave 2 Outdoor AP

The RUCKUS T750 combines RUCKUS patented technologies and best-in-class industrial grade design with next generation of 802.11ac features to deliver industry-leading Wi-Fi performance, reliability and coverage for challenging high density outdoor deployments.

Featuring BeamFlex+ adaptive antenna technology, the RUCKUS T750 offers a substantial increase in performance and range by optimizing antenna coverage on a per client, per transmission basis. BeamFlex+ additionally mitigates co-channel interference by directing Wi-Fi signals where they are needed instead of towards neighboring access points. The T750’s BeamFlex+ adaptive antenna system is also equipped with dual polarization antennas, allowing the access point to adapt to the physical orientation of client devices and maximize uplink performance.

With throughput capacities of 800 Mbps (2.4GHz) and 2400 Mbps (5GHz), the RUCKUS T750 supports the highest available throughput for Wi-Fi clients. 802.11ac Multi-User MIMO (MU-MIMO) support allows the T750 to simultaneously transmit to multiple MU-MIMO capable devices, drastically improving airtime efficiency, overall throughput, and availability. The T750 is compatible with a wide array of MU-MIMO, SU-MIMO and legacy Wi-Fi clients.

The RUCKUS T750 can function either as a standalone AP or as part of centrally managed Wireless LAN.

The RUCKUS T750 is specifically designed with industrial-grade features such as GPS and secure image download. Also included is a SFP fiber interface that enables seamless connectivity to a fiber backhaul with no additional converters. Via Ethernet connections, the T750 supports Link Aggregation Control Protocol (LACP) to optimize backhaul throughput.

The RUCKUS T750 is purpose-built to deliver unparalleled performance, capacity and coverage in dynamic outdoor environments that are characteristic of high density utilization and interference.

Ideal use cases include: public outdoor hotspots, smart cities, outdoor coverage for enterprise and schools where support for data intensive streaming multimedia applications like HD IP video is imperative.

Patented BeamFlex+ Technology Extends Signal Range, Improves Reliability of Client

The RUCKUS T750 integrates patented software-controlled adaptive antennas that delivers additional signal gain per radio chain. As BeamFlex+ adapts to client locations and antenna polarity, the smart antenna technology optimizes the RF energy toward client on a per packet basis. This allows for substantial performance improvement and a reduction in packet loss from the ability to automatically mitigate interference and obstacles. BeamFlex+ with PD-MRC (polarization diversity) ensures the T750 listens in all polarizations simultaneously. This results in significant receive signal gain from mobile devices with weak transmitters.

Multi-User MIMO (MU-MIMO)

802.11ac MU-MIMO allows the RUCKUS T750 to transmit multiple spatial streams to multiple client devices simultaneously, increasing the total throughput and capacity of the wireless network. The RUCKUS T750 is able to provide up to three clients each their own dedicated full-bandwidth channel using an MU-MIMO technique known as spatial reuse. This capability enables several benefits.

Efficient use of available spectrum effectively multiplies the total capacity of a network, allowing it to meet the increasing data demand driven by the proliferation of mobile Wi-Fi clients and data-hungry applications and uses such as high-definition video streaming. Additionally, MU-MIMO does not require client devices to time-share connections with other clients on the network as in legacy Wi-Fi, which means each device experiences less wait time and makes the network more responsive overall. Even legacy clients benefit from MU-MIMO because of the increased RF efficiency; more capacity remains to support non-Wave 2 clients.

Advanced WLAN Applications

When used with the RUCKUS Smart WLAN management systems, the RUCKUS T750 supports a wide range of value-added applications such as guest networking, Dynamic PSK, hotspot authentication, wireless intrusion prevention and many more. WLANs can also be grouped and shared by specific APs. In a centrally managed configuration, the RUCKUS T750 works with various authentication servers including AD, LDAP, and RADIUS.

BeamFlex+ Technology, MU-MIMO, Advanced WLAN Applications

Features:

Integrated BeamFlex+ Smart Antenna Technology

  • Omni directional for very high-density deployments in arenas, stadiums, airports, etc. or can be fitted with external antennas
  • BeamFlex+ support for up to 4 dB of signal gain and 10 dB of interference mitigation in addition to the antenna gain
  • Internal antenna for a minimal form factor, which is essential in many deployments
  • Polarization Diversity with Maximal Ratio Combining (PD-MRC) ensures reliable connectivity for mobile devices

Hardened enclosure for harsh outdoor environments

  • IP-67 water and dustproof plastic enclosure with flexible wall or pole mounting options.

Other Features

  • 802.11ac Multi-User MIMO (MU-MIMO)
  • Concurrent dual-band (5 GHz/2.4 GHz) support
  • 2,533 Mbps maximum PHY rate (2400 Mbps in 5GHz; 800 Mbps in 2.4GHz)
  • BeamFlex+ (PD-MRC) smart antenna, with support for 4,000+ unique antenna patterns enables up to 4 dB of additional gain and up to 10 dB of additional interference mitigation
  • Antenna options: omni-directional and 120x30 degrees sector
  • Unmatched Rx sensitivity down to -104 dBm
  • Improved Maximum Ratio Combining (MRC) for best-in-class receive sensitivity
  • 802.11ac standard Tx Beamforming
  • Space Time Block Coding for increased handset performance
  • Low Density Parity Check (LDPC) for increased data throughput at all ranges
  • 256-QAM support on 5GHz and 2.4GHz
  • Backward compatible with legacy 802.11 clients
  • Dedicated dual band RF monitor enabling enhanced performance while providing Zero-Wait DFS capability
  • 2 10/100/1000 Ethernet ports
  • Support for LACP (Link Aggregation Control Protocol) to maximize the backhaul bandwidth using both Ethernet ports
  • SFP Fiber Interface providing flexibility to backhaul to fiber
  • AC power input (100-250 Vac, 50/60 Hz)
  • 802.3at (PoE+) PoE Input mode of operation
  • 802.3at PoE Output Power Sourcing Equipment (PSE) mode of operation, useful for daisy chaining and powering an additional Mesh AP or another device like an IP Surveillance Camera
  • IP 67 rated, -40°C to +65°C
  • Integrated GPS for location applications
  • Built in Wall or Pole mounting options for easy deployment
  • Either standalone or centrally managed
  • Secure image download – enhancing platform security
  • Multicast IP video streaming support
  • Four software QoS queues per client station
  • Up to 16 BSSIDs per radio with unique QoS and security policies*
  • WPA-PSK (AES), 802.1X support for RADIUS and AD*
  • Dynamic PSK*
  • Admission control/load balancing*
  • Band balancing
  • Captive portal and guest accounts *

* when used with management.

Benefits:

Industry’s Highest Performing 802.11AC Wave 2 Standard

  • Transmit to multiple clients at the same time with MU-MIMO
  • More efficient use of the RF spectrum
  • Improve network efficiency & throughput even for non-Wave 2 clients

Better Reception And More Consistent Performance

  • Adaptive polarization diversity
  • Dual-polarized antennas
  • Enhanced DFS and Spectrum analysis capability

Reduced Wi-fi Interference

  • Up to 15 dB of interference mitigation
  • Up to 50 percent reduction in co-channel interference to neighboring APs
  • Statistical, real-time capacity analysis of all channels to automatically selects best performing channels

Ideal High-performance Outdoor Access Point

  • Fast and easy mounting to street lights, traffic controls and street furniture
  • Industrial-grade IP-67 hardened enclosures (-40°C to +65°C)
  • Smart Mesh to eliminate cost and time associated with cumbersome Ethernet drops
  • Flexible backhaul interfaces such as SFP Fiber and Gigabit Ethernet

Deployment:

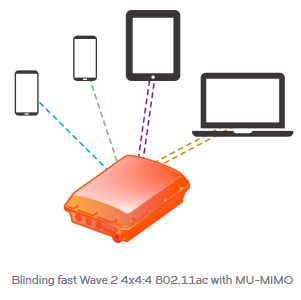

Blinding fast Wave 2 4x4:4 802.11ac with MU-MIMO

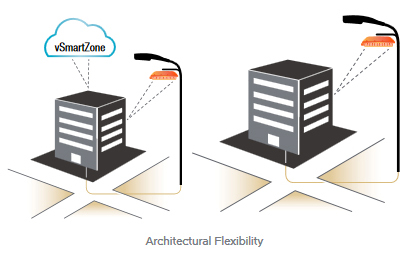

Architectural Felexible
Smart Mesh

Specifications:

WI-FI
Wi-Fi Standards
  • IEEE 802.11a/b/g/n/ac/ax
Supported Rates
  • 802.11ax: 4 to 2400 Mbps
  • 802.11ac: 6.5 to 1732 Mbps
  • 802.11n: 6.5 to 600 Mbps
  • 802.11a/g: 6 to 54 Mbps
  • 802.11b: 1 to 11 Mbps
Supported Channels
  • 2.4GHz: 1-13
  • 5GHz: 36-64, 100-144, 149-165
MIMO
  • 4x4 SU-MIMO
  • 4x4 MU-MIMO
Spatial Streams
  • 4 for both SU-MIMO & MU-MIMO
Radio Chains and Streams
  • 4x4:4
Channelization
  • 20, 40, 80, 160MHz
Security
  • WPA-PSK, WPA-TKIP, WPA2-Personal, WPA2-Enterprise, WPA3-Personal, WPA3-Enterprise, AES, 802.11i, Dynamic PSK, OWE
  • WIPS/WIDS
Other Wi-Fi Features
  • WMM, Power Save, Tx Beamforming, LDPC, STBC, 802.11r/k/v
  • Hotspot
  • Hotspot 2.0
  • Captive Portal
  • WISPr
RF
  T750 T750SE
Antenna Type
  • BeamFlex+ adaptive antennas with polarization diversity
  • Adaptive antenna that provides 4,000+ unique antenna patterns per band
  • T750 provides internal omni-directional antenna; and T750se provides internal 120-degree sectorized antenna with option to attach an external antenna
Antenna Gain (max) 2.4GHz: 1.6dBi
5Ghz: 3.4dBi
2.4GHz: 6.0dBi
5Ghz: 8.0dBi
Peak Transmit Power (Tx port/chain + Combining gain) 2.4GHz: 28 dBm
5GHz: 28 dBm
Frequency Bands
  • ISM (2.4-2.484GHz)
  • U-NII-1 (5.15-5.25GHz)
  • U-NII-2A (5.25-5.35GHz)
  • U-NII-2C (5.47-5.725GHz)
  • U-NII-3 (5.725-5.85GHz)
2.4GHZ RECEIVE SENSITIVITY (dBm)
HT20 HT40
MCS0 MCS7 MCS0 MCS7
-98 -79 -95 -76
HE20 HE40
MCS0 MCS7 MCS9 MCS11 MCS0 MCS7 MCS9 MCS11
-98 -79 -76 -70 -95 -76 -73 -67
5GHZ RECEIVE SENSITIVITY (dBm)
VHT20 VHT40 VHT80
MCS0 MCS7 MCS8 MCS9 MCS0 MCS7 MCS8 MCS9 MCS0 MCS7 MCS8 MCS9
-98 -80 -77 -95 -77 -72 -92 -74 -69
HE20 HE40 HE80
MCS0 MCS7 MCS9 MCS11 MCS0 MCS7 MCS9 MCS11 MCS0 MCS7 MCS9 MCS11
-98 -80 -75 -70 -95 -77 -72 -67 -92 -74 -69 -64
2.4GHZ TX POWER TARGET (PER CHAIN)
Rate Pout (dBm)
MCS0, HT20 22
MCS7, HT20 19.5
MCS8, HE20 19
MCS9, HE40 18.5
MCS11, HE40 17
5GHZ TX POWER TARGET (PER CHAIN)
Rate Pout (dBm)
MCS0, VHT20 22
MCS7, VHT40, VHT80 20
MCS9, VHT40, VHT80 18.5
MCS11, HE20, HE40, HE80 17
PERFORMANCE AND CAPACITY
Peak PHY Rates
  • 2.4GHz: 1148 Mbps
    5GHz: 2400 Mbps
Client Capacity
  • Up to 1024 clients per AP
SSID
  • Up to 31 per AP
RUCKUS RADIO MANAGEMENT
Antenna Optimization
  • BeamFlex+
  • Polarization Diversity with Maximal Ratio Combining (PDMRC)
Wi-Fi Channel Management
  • ChannelFly
  • Background Scan Based
Client Density Management
  • Adaptive Band Balancing
  • Client Load Balancing
  • Airtime Fairness
  • Airtime-based WLAN Prioritization
SmartCast Quality of Service
  • QoS-based scheduling
  • Directed Multicast
  • L2/L3/L4 ACLs
Mobility
  • SmartRoam
Diagnostic Tools
  • Spectrum Analysis
  • SpeedFlex
NETWORKING
Controller Platform Support
  • SmartZone
  • ZoneDirector
  • Unleashed
  • Cloud
  • Standalone
Mesh
  • SmartMesh™ wireless meshing technology. Self-healing Mesh
IP
  • IPv4, IPv6, dual-stack
VLAN
  • 802.1Q (1 per BSSID or dynamic per user based on RADIUS)
  • VLAN Pooling
  • Port-based
802.1x
  • Authenticator & Supplicant
Tunnel
  • L2TP, GRE, Soft-GRE
Policy Management Tools
  • Application Recognition and Control
  • Access Control Lists
  • Device Fingerprinting
  • Rate Limiting
IoT
  • Yes
OTHER RADIO TECHNOLOGIES
GPS
  • Types GLONAS...etc
PHYSICAL INTERFACES
  T750 T750SE
Ethernet
  • 1x2.5 Gbps, 1 x 10/100/1000 Mbps ports, RJ-45
  • LACP
Fiber
  • SFP, 1Gbps, SFP+ 10 Gbps
USB
  • 1 USB 2.0 port, Type A
External Antenna Connectors
  • 4x N-type female connectors
PHYSICAL CHARACTERISTICS
  T750 T750se
Physical Size
  • 34.64cm (L), 24.06cm (W), 10.17cm (H)
  • 13.64in (L) x 9.47in (W) x 4.0in (H)
  • 34.08cm (L), 24.06cm (W), 11.17cm (H)
  • 13.42in (L) x 9.47in (W) x 4.4in (H)
Weight
  • 2.84kg
  • 6.27lbs
  • 3.31kg
  • 7.3lbs
Mounting
  • Pole Mount
  • Wall Mount
  • Flat Surface
  • Bracket included in the box
Operating Temperature -40°C (-40°F) to 65°C (145°F)
Operating Humidity Up to 95%, non-condensing
Wind Survivability Up to 266km/h (165 mph)
POWER
Mode Power Consump੏on System Con࠽gura੏on
AC Power 63.7W (SFP+ Backhaul)

64.6W (Ethernet Backhaul)
  • Full Functionality
  • 2nd Ethernet Port enabled
  • PSE Out (26W) available
  • Onboard IoT enabled
  • USB enabled (3W) - omni SKU
802.3bt Class 7 (Maximum Functionality With PSE Out) 57W
  • Full Functionality
  • 2nd Ethernet Port enabled
  • PSE Out (26W) available
  • Onboard IoT enabled
  • USB enabled (3W) - omni SKU
802.3at (Reduced Functionality Without PSE) 24.2W
  • 2nd Ethernet Port enabled
  • PSE Out disabled
  • Onboard IoT enabled
  • USB enabled (3W) - omni SKU
Idle 10.75W
  • 2nd Ethernet Port enabled
  • PSE Out disabled
  • Onboard IoT disabled
  • USB disabled
CERTIFICATIONS AND COMPLIANCE
Wi-Fi Alliance*
  • Wi-Fi CERTIFIED™ a, b, g, n, ac
  • Wi-Fi CERTIFIED™ 6
  • Wi-Fi Enhanced Open™
  • WPA2™ - Personal
  • WPA2™ - Enterprise
  • WPA3™ - Personal
  • WPA3™ - Enterprise
  • Wi-Fi Agile Multiband™
  • Wi-Fi Optimized Connectivity™
  • Wi-Fi Vantage™
  • WMM®
  • Passpoint®
Standards Compliance
  • EN 60950-1 Safety
  • EN 60601-1-2 Medical
  • EN 61000-4-2/3/5 Immunity
  • EN 50121-1 Railway EMC
  • EN 50121-4 Railway Immunity
  • IEC 61373 Railway Shock & Vibration
  • EN 62311 Human Safety/RF Exposure
  • WEEE & RoHS
  • ISTA 2A Transportation
SOFTWARE AND SERVICES
Location Based Services
  • SPoT
Network Analytics
  • SmartCell Insight (SCI)
  • RUCKUS Analytics
Security and Policy
  • Cloudpath

*For complete list of WFA certifications, please see the Wi-Fi Alliance website

Documentation:

Download the RUCKUS T750 Datasheet (PDF).

Pricing Notes:

CommScope RUCKUS Products
RUCKUS T750 Series
Ruckus T750 802.11ax Outdoor Wireless Access Point, 4x4:4 Stream, Omnidirectional Beamflex+ coverage, 2.4GHz and 5GHz concurrent dual band, (1x) 2.5G Ethernet port, (1x) 10/100/1000 Ethernet port, 100-240 Vac, POE in and PSE out, Fiber SFP/SFP+, GPS, IP-67 Outdoor enclosure, -40 to 65C Operating Temperature
*At least 1 Year of Support is recommended with your AP purchase.
#901-T750-US01
Our Price: $3,775.00
Ruckus T750S 802.11ax Outdoor Wireless Access Point, 4x4:4 Stream, 120-Degree Sector antenna included and option to attach external antennae, 2.4GHz and 5GHz concurrent dual band, (1x) 2.5G Ethernet port, (1x) 10/100/1000 Ethernet ports, 100-240 Vac, POE in and PSE out, Fiber SFP/SFP+, GPS, IP-67 Outdoor enclosure, -40 to 65C Operating Temperature.
#901-T750-US51
Our Price: $3,775.00
Support for T750
RUCKUS Support for ZoneFlex T750 , 1 year
#806-T750-1000
Our Price: $514.50
RUCKUS Support for ZoneFlex T750 , 3 year
#806-T750-3000
Our Price: $1,027.95
RUCKUS Support for ZoneFlex T750 , 5 year
#806-T750-5000
Our Price: $1,541.40
WatchDog Advanced Hardware Replacement for T750
RUCKUS WatchDog Advanced Hardware Replacement for T750 , 1 year
#803-T750-1000
Our Price: $220.50
RUCKUS WatchDog Advanced Hardware Replacement for T750 , 3 year
#803-T750-3000
Our Price: $441.00
RUCKUS WatchDog Advanced Hardware Replacement for T750 , 5 year
#803-T750-5000
Our Price: $661.50
