Overview:
802.11ac High Performance Mid-Range 3x3:3 Smart WiFi Access Points with Adaptive Antenna Technology
The RUCKUS ZoneFlex R600 delivers high-performance and reliable 802.11ac wireless networking at a competitive price point for medium density venues such as in K-12 or education.
The ZoneFlex R600 combines patented adaptive antenna technology and automatic interference mitigation to deliver consistent, predictable performance at extended ranges with up to an additional 6dB of BeamFlex gain on top of the physical antenna gain and up to 15dB of interference mitigation.
The R600 is ideal for wireless networks servicing mobile devices with dual-polarized antennas that adapt in real time to maximize performance for the mobile enterprise.
Performance is further enhanced as the ZoneFlex R600 integrates Ruckus’ patented BeamFlex, a software-controlled, high gain adaptive antenna technology. The ZoneFlex R600 automatically selects channels for highest throughput potential using RUCKUS ChannelFly dynamic channel management, adapting to environmental changes.
A sleek and low-profile design, the ZoneFlex R600 was purpose-built for smallmedium enterprises requiring reliable high speed client connectivity. It is ideal for a variety of medium density enterprise and hotspot environments including SMB’s such as independent hotels, local retailers and non-franchise restaurants.
Patented Beamflex technology extends signal range, improves stability of client connections
All ZoneFlex R600 Wi-Fi access points integrate a softwarecontrolled smart antenna with PD-MRC (polarization diversity) that delivers up to an additional 6dB of BeamFlex gain and 15dB of interference mitigation. This is especially beneficial to enhance the performance of mobile devices which are constantly in motion and changing orientation.
Advanced WLAN Applications
Each ZoneFlex R600 supports a wide range of value-added applications such as guest networking, Dynamic PSK, hotspot authentication, wireless intrusion detection and many more. In a controller-less configuration, the ZoneFlex R600 works with a wide range of authentication servers including Microsoft’s Active Directory, and AAA/RADIUS.
Flexible Deployment Options
RUCKUS is custom-designed to help small business owners grow their business, deliver an excellent customer experience and manage costs while supporting Wi-Fi and a variety of mobile devices with minimal IT staff.
Complete Local and Remote Management
Each ZoneFlex R600 can be managed as a standalone AP through a Web-based GUI, using SNMP or through the RUCKUS SCI or FlexMaster. Local management can also be performed using Ruckus’ Smart WLAN controllers. FlexMaster is a LINUX-based software platform that uses industry standard protocols to perform bulk configuration, fault detection, monitoring and a wide range of trouble-shooting capabilities over a wire area connection. The controllers enable local management and control of APs, adding value-added services such as transmit power control and guest networking.
Benefits:
Extended range requires fewer APs
Adaptive antenna technology delivers up to 2x increase in Wi-Fi signal coverage minimizing the number of APs required to service any area
Sleek, low profile enclosure for ease-of-deployment
Aesthetically-pleasing design and a range of mounting options
Channel selection optimizes throughput
ChannelFly dynamic channel management, based on throughput measurements, not just interference, chooses the best channel to give users the highest possible throughput
Super simple configuration and management
The industry's simplest configuration and management through a Web-based wizard and automated deployment capabilities
Flexible deployment options
Standalone or controller-based deployment

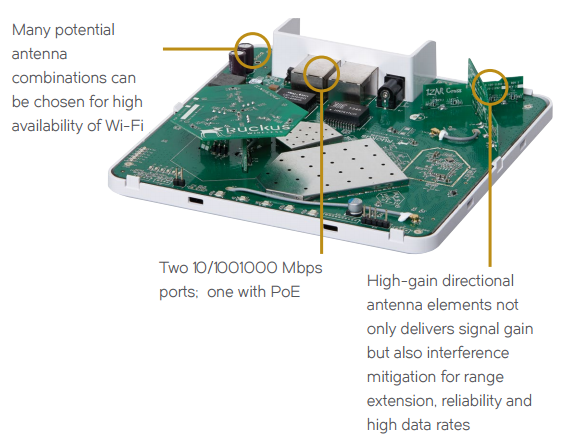

Adaptive Polarization Diversity (PD-MRC)
Dual-polarized antennas that are dynamically selected provide better reception for hard to hear clients and more consistent performance as clients constantly change orientation
Hassle free migration to higher speed Wi-Fi
Support for standard 802.3af power over Ethernet allows enterprises to use existing PoE switches without costly upgrades
Deployment:

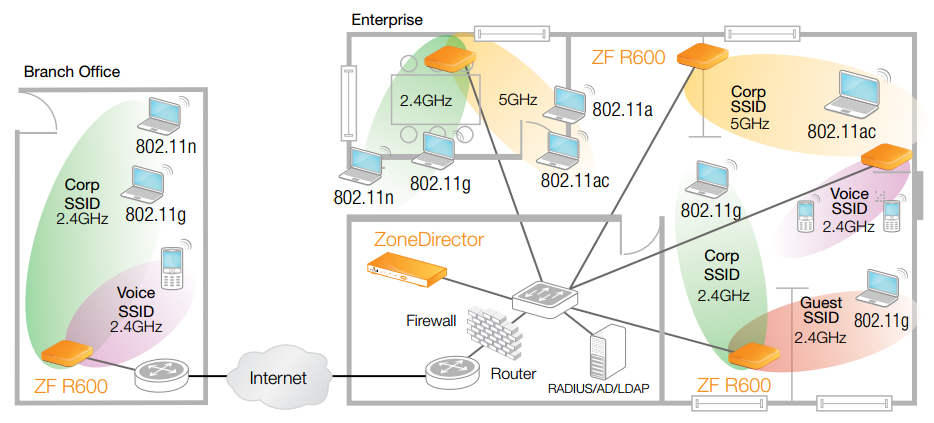

The Zoneflex R600 Integrates With Your Existing Network Infrastructure
Delivering best-in-class 802.11ac performance and reliability at a competitive price — making it the ideal wireless solution for mid-range enterprise and branch office applications.

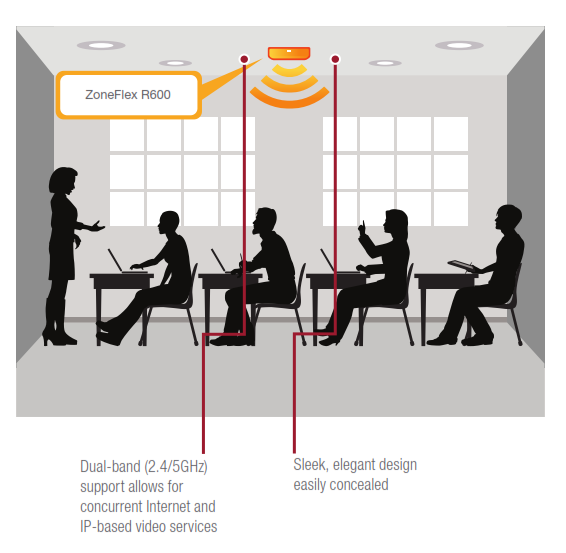

Deployments For Classrooms And Libraries
The ZoneFlex R600 is ideal for deployment in education common areas to provide wireless connection to high quality data access in higher density locations.

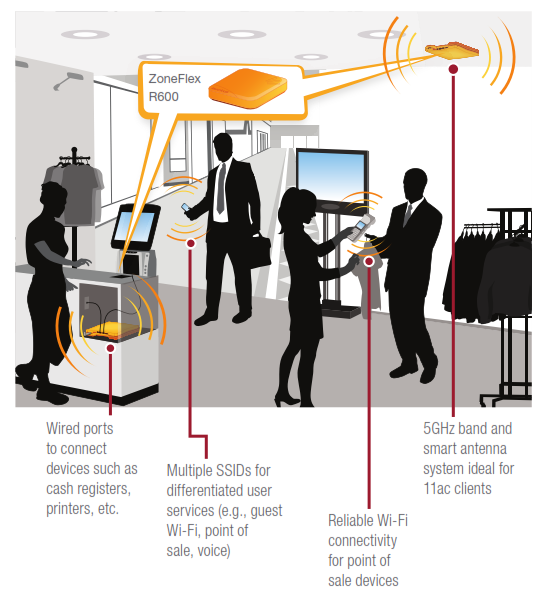

Deployment For Retail / Branch Offices
The ZoneFlex R600 is ideal for deployment in retail stores to provide inconspicuous wireless connection to high quality video, wireless IP phones and data access for handheld PoS bar code scanners.
Specifications:
| ZoneFlex R600 Specifications |
| Power |
- DC Input: 12 VDC 1.0A
- Power over Ethernet 802.3 af
|
| Physical Size |
- 15.8 cm (L) x 15.8 cm (W) x 4 cm (H)
- 6.2 in (L) x 6.2 in (W) x 1.57 in (H)
|
| Weight |
364 g (0.8 lb.) |
| Ethernet Ports |
2 auto MDX, auto-sensing 10/100/1000 Mbps, RJ-45, POE port (on one port) |

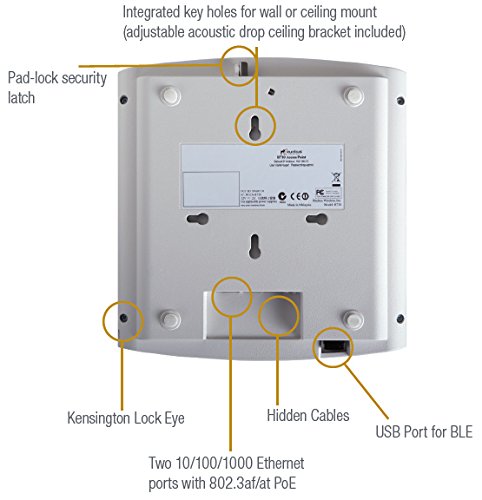

| Lock Options |
- Hidden latching mechanism
- Kensington Lock Hole
- T-bar Torx
- Bracket (902-0108-0000) Torx screw & padlock (sold separately)
|
| Environmental Conditions |
- Operating Temperature: 0°C - 40°C
- Operating Humidity: 10% - 95% non-condensing
|
| Power Draw |
- Idle: 4W
- Typical: 6.2W
- Peak: 11.2W
|
| Concurrent Stations |
Up to 512 clients per AP |
| Simultaneous VoIP Clients |
Up to 30 clients per AP |
| Antenna |
- Adaptive antenna that provides up to 512 unique antenna patterns per radio
- Full omnidirectional polarization diversity
|
| Physical Antenna Gain |
Up to 3 dBi |
| Beamflex* SINR TX Gain |
Up to 6 dB |
| Beamflex* SINR RX Gain |
3-5 dB (PD-MRC) |
| Interference Mitigation |
Up to 15 dB |
| Minimum RX Sensitivity |
Up to -100 dBm |
| Deployment Options |
- Standalone (individually managed)
- Managed by ZoneDirector (9.8.1 & Above)
- Managed by SmartZone (3.0 & above)
- Managed by FlexMaster
- Managed by SmartCell™ Gateway 200 (2.5 & above)
|
| Configuration |
- Web User Interface (HTTP/S)
- CLI (Telnet/SSH), SNMP v1, 2, 3
- TR-069 vis FlexMaster
|
| Auto AP Software Updates |
FTP or TFTP, remote auto available |
| Standards |
- IEEE 802.11a/b/g/n/ac
- 2.4GHz and 5GHz
|
| Supported Data Rates |
- 802.11n/ac: 6.5Mbps – 260Mbps (20MHz)
- 13.5Mbps – 600Mbps (40MHz)
- 29.3Mbps – 1300Mbps (80MHz)
- 802.11a: 54, 48, 36, 24, 18, 12, 9 and 6Mbps
- 802.11b: 11, 5.5, 2 and 1 Mbps
- 802.11g: 54, 48, 36, 24, 18, 12, 9 and 6 Mbps
|
| Radio Chains |
3x3 |
| Spatial Streams |
3 |
| RF Power Output (Aggregate) |
- 28 dBm for 2.4GHz†
- 27 dBm for 5GHz†
|
| Channelization |
20MHz, 40MHz, 80MHz |
| Frequency Band |
- IEEE 802.11 b/g/n: 2.4 – 2.484 GHz
- IEEE 802.11a/ac: 5.15 – 5.25 GHz; 5.25 – 5.35 GHz; 5.47 – 5.725 GHz; 5.725 – 5.85 GHz
|
| Operating Channels |
- US/Canada: 1-11, Europe ( ETSI X30): 1-13, Japan X41: 1-13
- 5 GHz channels: Country dependent
|
| Power Save |
Supported |
| Wireless Security |
- WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i
- Authentication via 802.1X with the ZoneDirector, local authentication database, support for RADIUS, LDAP, and ActiveDirectory
|
| Certifications** |
- U.S., Europe, Australia, Brazil, Canada, Chile, China, Colombia, Costa Rica, Hong Kong, India, Indonesia, Israel, Japan, Korea, Malaysia, Mexico, New Zealand, Peru, Philippines, Saudi Arabia, Singapore, South Africa, Taiwan, Thailand, UAE, Vietnam
- WEEE/RoHS compliance
- EN-60601-1-2 (Medical)
- Wi-Fi Alliance
- EN50121-1 Railway EMC
- EN50121-4 Railway Immunity
- IEC 61373 Railway Shock & Vibration
- UL 2043 plenum rated
- 5GHz UNII-1 (2014)
|
* BeamFlex gains are statistical system level effects translated to enhanced SINR based on observations over time in real-world conditions with multiple APs and many clients
† Maximum power varies by country
** See price list for latest country certification listing
Documentation:
Download the RUCKUS ZoneFlex R600 Datasheet (PDF).
