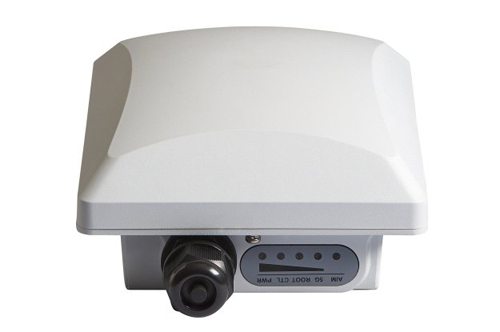

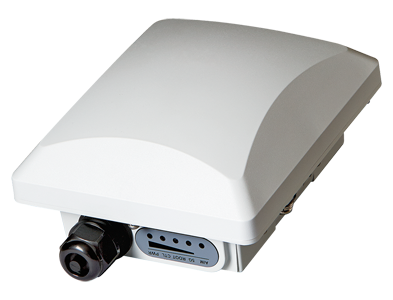

RUCKUS ZoneFlex P300
Smart 802.11ac 5GHz Outdoor Point-to-Point, Point-to-Multipoint Wireless Bridge

Overview:

Smart 802.11ac 5GHz Outdoor Point-to-Point, Point-to-Multipoint Wireless Bridge

The RUCKUS ZoneFlex P300 is an outdoor point-to-point and point-to-multi point bridge that unleashes the promise of 5GHz 802.11ac, delivering unparalleled throughput. Backhaul throughput of over 500 Mbps opens opportunities to new business models, bridging remote locations and providing broadband services to locations not reachable before, in an affordable way.

Designed for harsh outdoor conditions, the RUCKUS ZoneFlex P300 is perfect for service providers looking to easily extend branded broadband services, backhaul small cell networks, offload data traffic from small cell networks, deploy multimedia hotspots, or offer wireless broadband services where fixed line access is limited.

The ZoneFlex P300 is also ideal for hotels, schools, warehouses and other enterprises looking to extend managed wireless LANs (WLANs) across remote buildings and where Ethernet cabling is not possible.

Auto-pairing of wireless bridges, in addition to flexible mounting options, forgiving antenna pattern, and an easy-to-use aiming software, allows installers to deploy and optimize a wireless link in a short time, significantly increasing productivity and reducing deployment costs.

Features:

• 802.11ac Point to Point or Point to Multi Point Bridge
• 5GHz operation
• 20MHz, 40MHz, and/or 80MHz channelization
• 14dBi internal directional antenna
• 2 external N-Type antenna connectors
• 802.3af Power over Ethernet
• Ruggedized for outdoor conditions: -40°C to 65°C operating temperature, IP67 rated
• Maximum link distance 12 km (using internal antenna)
• Dedicated radar avoidance pre scan (DFS)
• PD-MRC for reliable bridge connections
• Simple installation with mounting brackets included
• Automatic pairing and easy aiming between bridges
• Optional accessories available to enhance range & performance

Benefits:

Wire-like throughput over the air
Based on the 802.11ac standard, the ZoneFlex P300 supports RF capacity up to 867 Mbps. With Ruckus’ purpose-built directional antenna, the ZoneFlex P300 supports throughputs up to 500 Mbps and offers performance up to 100 Mbps at 8 km (LoS).*

Easy installation and pairing
ZoneFlex P300 enables installers to deploy wireless bridges effortlessly. Lightweight and designed with simple and flexible mounting options.

Simple positioning and aiming
Precision aiming and optimized performance with 30-degree beamwidth antenna and sophisticated LED-based aiming software. ZoneFlex P300 proactively finds and selects the best performing channel automatically using Ruckus’ patented ChannelFly channel selection algorithms.

Secure and scalable
The wireless bridge link is AES secure and can scale to support multiple networks segmented by VLANs.

10X scalability with wireless multi-node bridging
Each root bridge capable of supporting up to 10 receiving bridges.

Unmatched ROI
The wireless link offers much higher data throughput rates than T1/E1 or xDSL lines at only a fraction of the fixed line installation cost and without the recurring leased line cost. The ZoneFlex P300 is also an ideal option for backhauling small cell cellular networks.

Environmentally-friendly design
The internal dual polarized antenna not only does away the need for installing an external antenna, further simplifying the installation procedure, but also offers an aesthetically pleasing look and feel.

* When used with optional external antenna

Deployment:

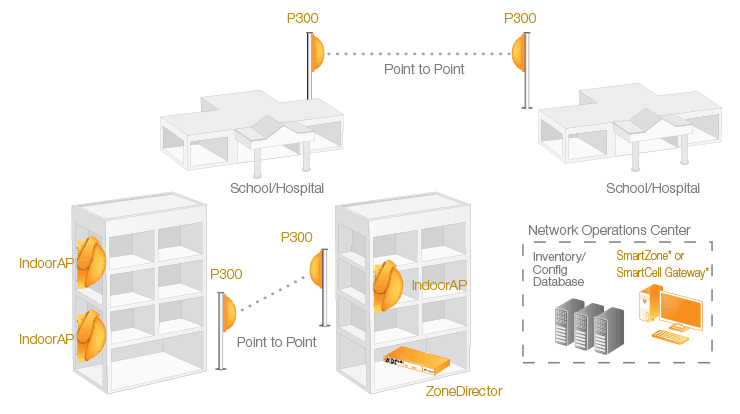

Building to Building Bridging:

ZoneFlex P300 provides an ideal solution for linking two LANs in different buildings.

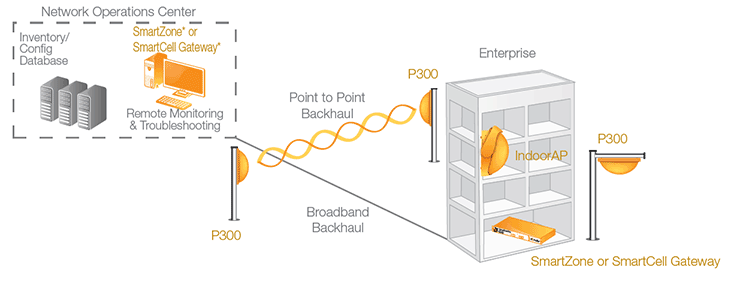

Backup Link for Disaster Recovery:

ZoneFlex P300 serves as a high performance back up link for enterprise disaster recovery

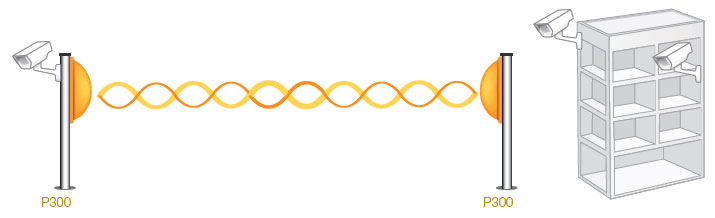

Video Surveillance:

Zoneflex P300 offers reliable wireless streaming of surveillance video back to a central post

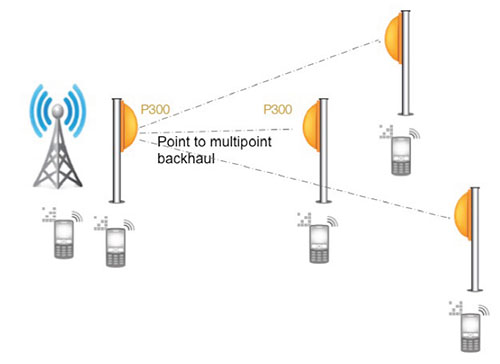

Point to Multipoint:

ZoneFlex P300 enables point to multi point backhaul bridging for up to 10 receiving bridges

Specifications:

	T750	T710	T610	T310	T811-CM	E510	P300
	Learn More	Learn More	Learn More	Learn More	Learn More	Learn More	Learn More
Feature/Description	High-end Wi-Fi 6 (802.11ax) dual- concurrent AP with MU-MIMO and BeamFlex+	High-end 802.11ac Wave 2 dual concurrent AP with BeamFlex+	Mid-range 802.11ac Wave 2 dual concurrent AP with BeamFlex+	Entry-level 802.11ac Wave 2 outdoor AP series with integrated BeamFlex+ omni and sector antennas	Outdoor 4x4:4 2.4/5GHz 802.11ac Wave 2 Wi-Fi access point with DOCSIS 3.1 backhaul	Embedded 802.11ac Outdoor Wave 2 Wi- Fi AP with External BeamFlex+ Antennas	Point-to-Point / Multi- point bridge
Maximum PHY rate	2400 Mbps (5GHz) 1148 Mbps (2.4GHz)	1733  Mbps (5GHz) 600  Mbps (2.4GHz)	1733  Mbps (5GHz) 600  Mbps (2.4GHz)	867 Mbps (5GHz) 300 Mbps (2.4GHz)	1733  Mbps (5GHz) 600  Mbps (2.4GHz)	867 Mbps (5GHz) 300 Mbps (2.4GHz)	867 Mbps (5GHz)
Wi-Fi technology	802.11ax (2.4GHz, 5GHz) Wi-Fi CERTIFIED 6™	802.11ac (5GHz) 802.11n (2.4GHz)	802.11ac (5GHz) 802.11n (2.4GHz)	802.11ac (5GHz) 802.11n (2.4GHz)	802.11ac (5GHz) 802.11n (2.4GHz)	802.11ac (5GHz) 802.11n (2.4GHz)	802.11ac (5GHz)
Concurrent users	1024	512	512	512	512	512	—
Radio chains:streams	4x4:4	4x4:4	4x4:4	2x2:2	4x4:4	2x2:2	2x2:2
Antenna patterns (per band)	4,000+	4,000+	4,000+	64	4,000+	64	—
Antenna gain	Up to 3dBi	Omni: Up to 3dBi Sector: Up to 8dBi	Omni: Up to 3dBi 120 Sector: Up to 8dBi	Omni: Up to 3dBi 120 Sector: Up to 9dBi 30 Sector: Up to 12dBi	Up to 3dBi	Up to 3dBi	—
PD-MRC
Rx sensitivity (2.4/5GHz)	-103dBm	-104/-104dBm	-104dBm	-101dBm	-98/-97	-101dBm	-96dBm
ChannelFly
SmartMesh							—
Ethernet interface	1 x 1 GbE 1 x 2.5 GbE	2 x 1GbE	2 x 1GbE	1 x 1GbE	1 x 1GbE	1 x 1GbE	1 x 1GbES
USB (IoT Ready)		—		Models d, s, & n			—
Fiber interface			—	—		—	—
GPS			—	—		—	—
WLAN Control and Management	·   ZoneDirector ·   SmartZone ·   RUCKUS Cloud	·   ZoneDirector ·   SmartZone ·   Unleashed ·   RUCKUS Cloud	·    ZoneDirector ·    SmartZone ·    Unleashed ·    RUCKUS Cloud	·   ZoneDirector ·   SmartZone ·   Unleashed ·   RUCKUS Cloud	·    SmartZone	·    SmartZone ·    ZoneDirector ·    Standalone ·    Unleashed ·    RUCKUS Cloud	·    Unleashed Multi-Site Manager

¹ Throughputs and range may vary depending upon regulatory restrictions, operating band, channel width and interference environment
² When used with 24 dBi external antennas
³ When used with internal directional antenna
† Maximum power varies by country
** For current certification status please see price list

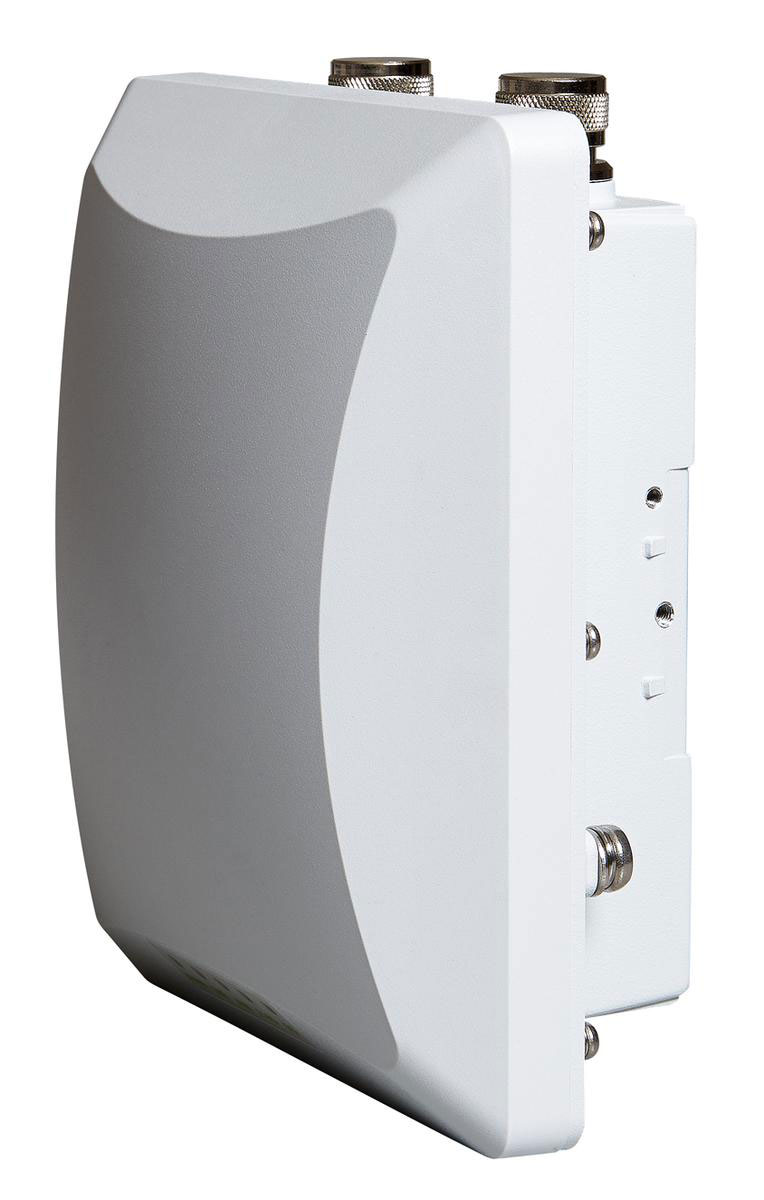

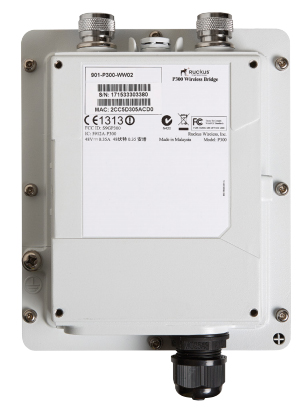

Views:

Documentation:

Download the RUCKUS ZoneFlex P300 Datasheet (PDF).
