RUCKUS ZoneFlex T310 Series
Outdoor 2x2:2 2.4/5GHz 802.11ac Wave 2 Wi-Fi access points with omni and directed antennae

Overview:

802.11ac AP with BeamFlex+ for Cost-Effective Deployments in High Density Outdoor Venues

At stadiums, transit hubs, smart cities, and other crowded outdoor public venues, users want the same fast, reliable Wi-Fi connectivity they expect in their homes or offices. For operators, however, delivering that can be immensely challenging—and expensive.

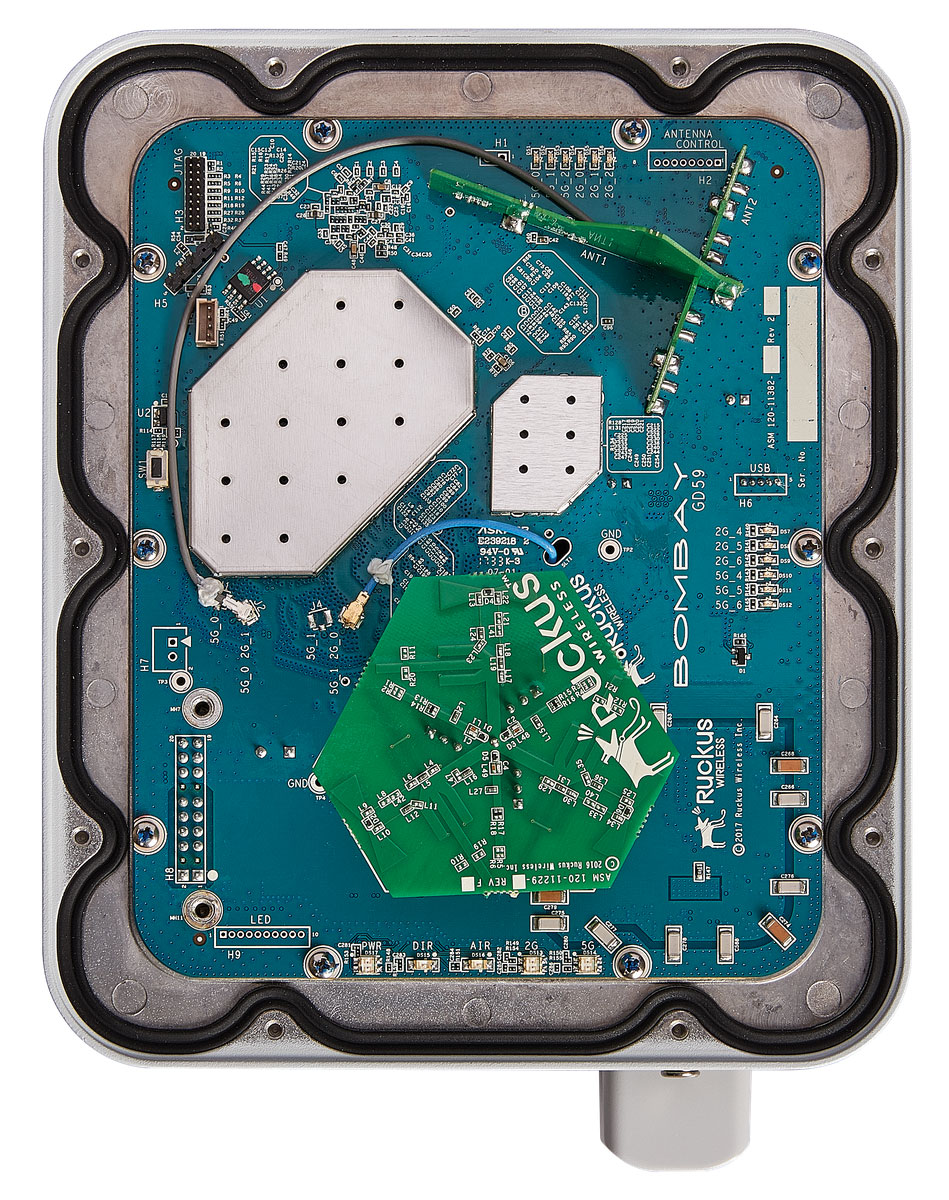

The RUCKUS T310 Series of 802.11ac Wave 2 access points provides industry-leading RUCKUS wireless performance in an economical, industrial-grade form factor designed for crowded outdoor locations. These ultra-lightweight, low-profile APs feature internal omni-directional or high-gain directional antennas for specific coverage, eliminating the need for bulky panel antennas and confusing and expensive external RF cabling.

Choose from either omni, 30-degree narrow beam or 120-degree sector antennas to enable fast, low-cost installation, extended range, and best-in-class throughput in the most challenging outdoor environments.

The T310d, s, n models have a USB 2.0 port to support additional RF technologies such as Bluetooth Low Energy (BLE) and optional DC power source for use with solar cell deployment.

Modern Wi-Fi device users expect reliable connectivity—anywhere, anytime. But in crowded outdoor venues with thousands of users and constant RF noise, they are often frustrated by poor coverage, dropped connections, and reduced data rates. These aggravating Wi-Fi experiences can easily translate to negative perceptions of the venue and the service provider, resulting in loss of business. The quality of the network experience becomes the “litmus test” for acceptance or rejection.

As the market leader in outdoor Wi-Fi deployments, RUCKUS knows that one AP solution cannot meet every possible challenge of varied and complex outdoor requirements. This is why the RUCKUS T310 802.11ac Wave 2 series is designed with more variety than any other outdoor AP in the market today. Available with either internal omni-directional antennas or internal high-gain directional antenna models, the T310 Series uses patented RUCKUS antenna optimization and interference mitigation technologies to improve throughput, connection reliability, and deliver industry-leading 802.11ac Wave 2 performance to every connected client. At the same time, the T310 Series is designed for fast, simple installation with an ultra-lightweight, low profile, IP-67 rated enclosure that can stand up to the most challenging outdoor environments.

At Ruckus, we know that outdoor AP deployments are especially challenging for installation and maintenance, which is why RUCKUS outdoor APs use a variety of technologies, like SmartMesh that help simplify outdoor AP deployment.

The RUCKUS T310 Series is perfect for high-density outdoor public venues such as airports, convention centers, plazas, malls, smart cities, and other dense urban environments. By providing a superior Wi-Fi experience to every user in high-density outdoor locations, venue operators can improve guest satisfaction and loyalty, deliver new kinds of wireless application services, and increase revenues.

The RUCKUS T310 Series incorporates patented technologies found only in the RUCKUS Wi-Fi portfolio.

• Extended coverage with patented BeamFlex+™ utilizing multi-directional antenna patterns.
• Improve throughput with ChannelFly, which dynamically finds less congested Wi-Fi channels to use.

Whether you’re deploying ten or ten thousand APs, the T310 Series is easy to manage through Ruckus’ appliance and virtual management options.

Features:

WIRELESS

• 802.11ac Wave 2 Multi-User MIMO (MU-MIMO)
• Concurrent dual-band (5GHz/2.4GHz) support
• 2x2:2ss with total 1167Mbps WLAN data rate
• BeamFlex+ adaptive antenna technology and advanced RF management
• Up to 10dB interference mitigation
• Polarization diversity for optimal mobile device performance
• WPA-PSK (AES), 802.1X support for RADIUS and Active Directory**
• Airtime fairness
• Admission control **
• Band balancing and Load balancing**
• Dynamic, per-user rate-limiting for hotspot WLANs

INTERFACES

• 1 x 1GbE port
• USB 2.0, Type A connector - ideal for BLE dongles and sensors (on the T310d, n, s models)

IP CERTIFICATION

• IP-67 rated, -40°C to +65°C (temp range varies with model)

POWER

• 802.3af PoE Input (Class 3 PD)
• DC Input (on the T310d, n, s models)

SOFTWARE

• Standalone or centrally managed by SmartZone, ZoneDirector
• SPoT™ Real-time location engine and analytics software
• Cloudpath™ (security and management software)
• SmartCell Insight (Network analytics engine)
• NAT and DHCP
• Smart QoS
• Zero-IT and Dynamic PSK
• Captive portal and guest accounts
• Application recognition and control
• Secure HotSpot
• SmartMesh



Benefits:

VARIETY One size does NOT fit all. The T310 series offers the broadest variety of APs in the market today with options of power, antenna design, and/or IoT support. All these enable customers to meet specific use case needs that may not be possible with standard APs.

SIMPLICITY Ruckus’ Outdoor APs make Wi-Fi deployments extremely simple to deploy with one-touch technologies like SmartMesh™

STUNNING WI-FI PERFORMANCE Extends coverage with patented BeamFlex+TM adaptive antenna technology while mitigating interference by utilizing up to 64 directional antenna patterns.

GREAT OUTDOOR WI-FI Experience high performance outdoor 802.11ac Wave 2 Wi-Fi with IP-67 weather proofing.

MULTIPLE MANAGEMENT OPTIONS Manage the T310 Series with physical or virtual controller appliances.

SERVE MORE DEVICES Connect more devices simultaneously with two MU-MIMO spatial streams and concurrent dual-band 2.4/5GHz radios while also enhancing non-Wave 2 device performance.

GET OPTIMAL THROUGHPUT ChannelFly™ dynamic channel technology uses machine learning to automatically find the least congested channels. You always get the highest throughput the band can support.

MORE THAN WI-FI Enhance your network with Cloudpath security and management software, SPoT real-time Wi-Fi location engine and analytics software, and SCI network analytics.

Specifications:

	T750	T710	T610	T310	T811-CM	E510	P300
	Learn More	Learn More	Learn More	Learn More	Learn More	Learn More	Learn More
Feature/Description	High-end Wi-Fi 6 (802.11ax) dual- concurrent AP with MU-MIMO and BeamFlex+	High-end 802.11ac Wave 2 dual concurrent AP with BeamFlex+	Mid-range 802.11ac Wave 2 dual concurrent AP with BeamFlex+	Entry-level 802.11ac Wave 2 outdoor AP series with integrated BeamFlex+ omni and sector antennas	Outdoor 4x4:4 2.4/5GHz 802.11ac Wave 2 Wi-Fi access point with DOCSIS 3.1 backhaul	Embedded 802.11ac Outdoor Wave 2 Wi- Fi AP with External BeamFlex+ Antennas	Point-to-Point / Multi- point bridge
Maximum PHY rate	2400 Mbps (5GHz) 1148 Mbps (2.4GHz)	1733  Mbps (5GHz) 600  Mbps (2.4GHz)	1733  Mbps (5GHz) 600  Mbps (2.4GHz)	867 Mbps (5GHz) 300 Mbps (2.4GHz)	1733  Mbps (5GHz) 600  Mbps (2.4GHz)	867 Mbps (5GHz) 300 Mbps (2.4GHz)	867 Mbps (5GHz)
Wi-Fi technology	802.11ax (2.4GHz, 5GHz) Wi-Fi CERTIFIED 6™	802.11ac (5GHz) 802.11n (2.4GHz)	802.11ac (5GHz) 802.11n (2.4GHz)	802.11ac (5GHz) 802.11n (2.4GHz)	802.11ac (5GHz) 802.11n (2.4GHz)	802.11ac (5GHz) 802.11n (2.4GHz)	802.11ac (5GHz)
Concurrent users	1024	512	512	512	512	512	—
Radio chains:streams	4x4:4	4x4:4	4x4:4	2x2:2	4x4:4	2x2:2	2x2:2
Antenna patterns (per band)	4,000+	4,000+	4,000+	64	4,000+	64	—
Antenna gain	Up to 3dBi	Omni: Up to 3dBi Sector: Up to 8dBi	Omni: Up to 3dBi 120 Sector: Up to 8dBi	Omni: Up to 3dBi 120 Sector: Up to 9dBi 30 Sector: Up to 12dBi	Up to 3dBi	Up to 3dBi	—
PD-MRC
Rx sensitivity (2.4/5GHz)	-103dBm	-104/-104dBm	-104dBm	-101dBm	-98/-97	-101dBm	-96dBm
ChannelFly
SmartMesh							—
Ethernet interface	1 x 1 GbE 1 x 2.5 GbE	2 x 1GbE	2 x 1GbE	1 x 1GbE	1 x 1GbE	1 x 1GbE	1 x 1GbES
USB (IoT Ready)		—		Models d, s, & n			—
Fiber interface			—	—		—	—
GPS			—	—		—	—
WLAN Control and Management	·   ZoneDirector ·   SmartZone ·   RUCKUS Cloud	·   ZoneDirector ·   SmartZone ·   Unleashed ·   RUCKUS Cloud	·    ZoneDirector ·    SmartZone ·    Unleashed ·    RUCKUS Cloud	·   ZoneDirector ·   SmartZone ·   Unleashed ·   RUCKUS Cloud	·    SmartZone	·    SmartZone ·    ZoneDirector ·    Standalone ·    Unleashed ·    RUCKUS Cloud	·    Unleashed Multi-Site Manager

Documentation:

Download the RUCKUS ZoneFlex T310 Series Datasheet (PDF).
