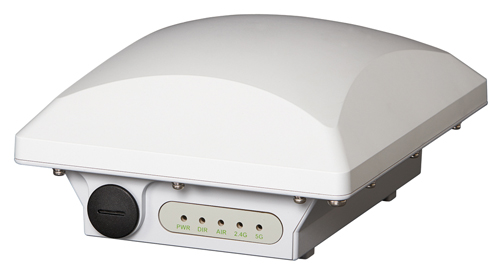

RUCKUS ZoneFlex T301
Entry-Level 802.11ac Outdoor Access Points with Directed Coverage

Overview:

The Industry’s First Outdoor 802.11ac AP with BeamFlex+ designed for High Density Venues

The ZoneFlex T301 Series are the first dual-band 802.11ac outdoor access points (AP) designed explicitly for high density user environments such as stadiums, arenas, train stations, convention centers, and major metro areas.

The T301 Series are the only 802.11ac access points on the market to integrate patented BeamFlex™ technology. The T301 Series has internal high gain directional antennas to provide directed coverage solutions eliminating the need for bulky panel antennas and confusing and expensive external RF cabling. The T301 Series enable focused Wi-Fi coverage to mitigate interference and implicitly improve signal-to-interference-plus-noise ratio (SINR) in the most challenging RF environments.

In addition, the T301 Series uniquely leverages a predictive model for channel selection (ChannelFly) that uses actual activity to learn what channels will yield the most capacity to provide the highest client speeds and reduced interference.

Designed for easy installation within an ultra lightweight and low profile enclosure, the T301 Series is ideal for venue owners looking to quickly and economically deploy Wi-Fi in high-capacity environments such as stadiums, arenas, train stations, convention centers, and major metro areas. Using directed coverage, the APs can be deployed in close proximity, mitigating co-channel interference. This is critical as high density deployments require a large number of APs within a fixed space.

The T301 Series can be centrally managed by the ZoneDirector Smart WLAN controller or the SmartCell™ Gateway 200 (SCG 200) as part of a unified indoor/outdoor wireless LAN, deployed as a standalone AP and managed individually, or through the FlexMaster remote Wi-Fi management system.

Features:

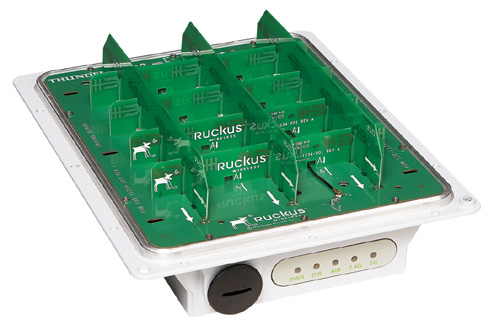

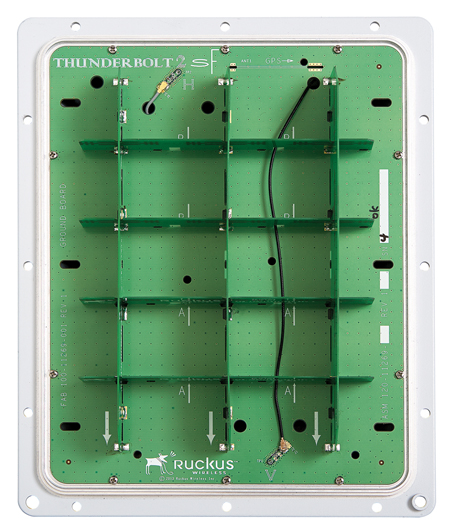

Internal Narrow Beam Antenna Technology

• 30° narrow beam or 120° sectorized antennas for very high-density deployments in arenas, stadiums, airports, etc.
• Up to 10 dB of implicit interference mitigation
• The antennas are integrated into the T301 Series APs for a minimal form factor which is essential in many deployments

Ideal for High-density locations

• Narrow beam antennas are ideal for high-density venues where RF energy must be very narrowly focused

Hardened enclosure for harsh outdoor environments

• IP-67 water and dustproof plastic enclosure with flexible wall or pole mounting options

Other Features

• Concurrent dual-band (5GHz/2.4GHz) support
• 1200 Mbps of total WLAN RF capacity
• BeamFlex+ adaptive antenna technology and advanced RF management
• Up to 10dB interference mitigation
• Optimized for high-density environments
• Polarization diversity for optimal mobile device performance
• IP-67 rated, -20°C to +55°C
• Adjustable bracket included
• Small, lightweight, and sleek form factor
• Standalone or centrally managed by ZoneDirector, SCG 200, or FlexMaster
• Dynamic, per-user rate-limiting for hotspot WLANs
• WPA-PSK (AES), 802.1X support for RADIUS and Active Directory*
• BYOD, Zero-IT, and Dynamic PSK*
• Captive portal and guest accounts *
• Admission control/load balancing*
• Band balancing*
• Application recognition and control*
• Secure HotSpot*
• SPOT location services*
• Intelligent Band steering
• Airtime fairness
• SmartMesh**
• Smart QoS

*When used with RUCKUS ZoneDirector controller

Benefits:

High speed client performance with integrated adaptive antennas
Patented BeamFlex technology greatly improves connection reliability and increases WLAN capacity

Light, slim design for easy deployment
Compact, lightweight design with integrated antennas provide flexible deployment options with quick and easy installation

Highly Scalable
The ability to cost effectively scale high density networks

Predictive channel selection for increased capacity and reduced interference
ChannelFly automatically selects the best performing channel based on statistical, real-time capacity analysis of all RF channels

Standard 802.3af power
Easy installation using standard 802.3af PoE switches or PoE injectors

Unmatched Wi-Fi capacity and reliability
BeamFlex delivers up to 4 dB of added signal gain and up to 10dB of interference mitigation

Enhanced receive capabilities
Support for signal polarization diversity with maximal ratio combining (PD-MRC) ensures reliable connectivity for mobile devices

Specifications:

ZoneFlex T301 Specifications
Physical Characteristics
Power	802.3af PoE Input (Class 3 PD)
Physical Size	18 cm (L) x 15 cm (W) x 8.6 cm (H) 7 in (L) x 5.9 in (W) x 3.4 in (H)
Weight	2.1 lbs (1 kg) with bracket 2 lbs (0.9 kg) without bracket
Ethernet Ports	10/100/1000Base-T 802.3,802.3 u,802.3ab 802.3at/af PoE PD Input Jumbo frame support (2290 byte max MTU)
RF Connections	N female qty 2 (optional 5GHz only)
Environmental Conditions	Operating temperature range: -20°C to 55° C Weather protection: IP67 per IEC 60529
Power Draw	PoE Input Idle: 6.5W Typical: 7.5W Peak: 11W
Mounting Options	Wall Mount Pole Mount Diameter 1” to 2.5”
Performance and Capacity
Physical Layer Modulation Data Rate	2.4GHz 802.11b/g/n 300Mbps 5GHz 802.11a/n/ac 867Mbps
Concurrent Stations	Up to 500 capable per AP
Simultaneous VoIP Clients	Up to 30
Wi-Fi
Standards	5 GHz IEEE 802.11ac 2GHz IEEE 802.11g/n
Frequency Bands	IEEE 802.11g/n 2.4-2.472GHz (ch1-13 CE, ch1-11 US) IEEE 802.11ac 5GHz U-NII-1 5.15-5.25 GHz U-NII-2 5.25-5.35 (DFS) U-NII-2B 5.37-5.47† U-NII-2C 5.47-5.725 (DFS) U-NII-3 5.725-5.825 ISM 5.725 – 5.875 U-NII-4 5.85-5.925†
WLAN Radio Configuration	Dual band concurrent 2 x 2:2 stream radios
Maximum Tx Power*	26 dBm for 2.4GHz 25 dBm for 5.0GHz
Channelization	2.4GHz 802.11b/g/n 20/40 MHz 5GHz 802.11a/n/ac 20/40/80 MHz
BSSID	Up to 32 (27 configurable) on 2.4 GHz Up to 16 (13 configurable) on 5 GHz
Certifications**	U.S., Europe, Argentina, Australia, Brazil, Canada, Chile, China, Colombia, Costa Rica, Hong Kong, India, Indonesia, Israel, Japan, Korea, Malaysia, Mexico, Peru, Philippines, Russia, Saudi Arabia, Singapore, South Africa, Taiwan
Certification
Transporation	ISTA 2A: Random Vibration & Drop Test Compression & Loose Cargo Test ETSI EN 300 019-2-2 Specification T 2.2 Careful transportation
Safety	Safety Listing - EU EN 60950-1:2006/A12:2011 EN 60950-22:2006/AC:2008 International CB Scheme Certificate CB Bulletin IEC 60950-1: 2005 Second Edition IEC 60950-22: 2005 First edition CISPR 22 CISPR 24 CAN/CSA C22.2 60950-1 Edition 2 CAN/CSA C22.2 60950-22 Edition 1
Health and Human Safety to RF Exposure	EN 62311:2008 EN 50385:2002 FCC OET-65 ICNIRP:2010
Hazardous Materials	RoHS Directive 2002/95/EC RoHS Directive 2011/65/EU WEEE
Immunity	EN61000-4-2 Level 4 Contact / Level 3 Air ESD Immunity EN61000-4-5 Level 1 & 2 Immunity EN61000-4-3 Level 4 EMC Immunity GR1089 - 1kV 25A Surge (data ports)
Railway and Rolling Stock	EN50121-1 EN50121-4 EN61373 (for trackside use)

* Max power varies by country setting, band, and MCS rate
** Refer to price list for current country certifications
† With future software release

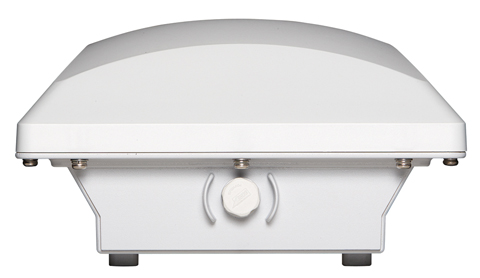

Views:

Documentation:

Download the RUCKUS ZoneFlex T301 Series Datasheet (PDF).
