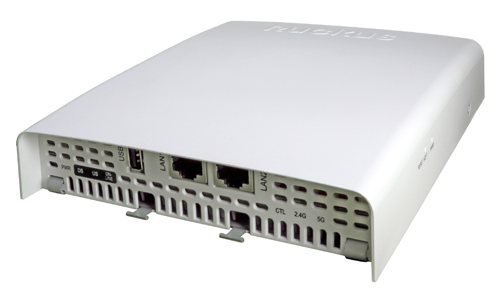

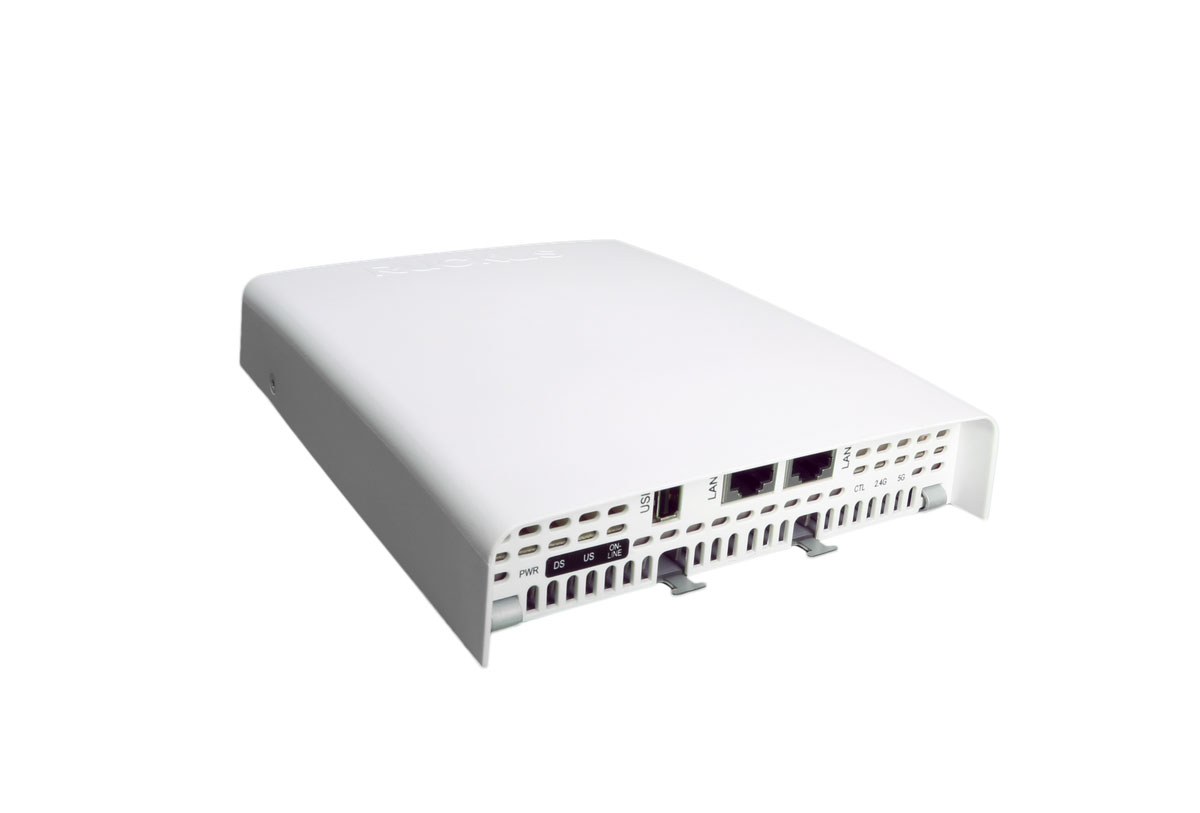

RUCKUS ZoneFlex C110
Multi-Service 802.11ac Wall Plate Cable Modem Access Points

Overview:

High Performance 802.11ac Wave 2 Integrated Wired/Wireless Wall Switch with DOCSIS 3.0 Connectivity

The ZoneFlex C110 is an unprecedented, highly-integrated cable modem access point designed to deliver best-in-class Wi-Fi connectivity over building-scale DOCSIS infrastructure. The C110 features a two-spatial-stream 802.11ac Wave 2 capable access point, integrated Ethernet switch, and DOCSIS 3.0 cable modem, all in a sleek, low-profile wall plate form factor that can be discretely installed over a standard electrical junction box.

The ZoneFlex C110 has been engineered from the ground up to provide a single box solution specifically to support Wi-Fi deployments in buildings with pre-existing coaxial cabling. Ideally suited for hotels, multi-dwelling-units (MDUs), and student residences where the cost of pulling new data cabling otherwise prohibits Wi-Fi installation, the C110’s integrated DOCSIS 3.0 cable modem provides reliable Wi-Fi backhaul over existing coaxial cabling to an in-building or off-premise CMTS.

A dual-band wireless access point with 802.11ac Wave 2 Multi-User MIMO (MU-MIMO) support, the C110 delivers outstanding Wi-Fi performance. Efficient airtime utilization due to MU-MIMO boosts performance for Wave 2 clients while also freeing up airtime for non-Wave 2 clients, which means all clients enjoy a performance benefit.

The “mobile device ready” ZoneFlex C110 features RUCKUS patented BeamFlex+ smart antennas, which adapt in real time to client device location and physical orientation, delivering consistent and reliable Wi-Fi performance. The BeamFlex+ adaptive antenna system of the ZoneFlex C110 is optimized for coverage in hotel guest rooms and MDU residences.

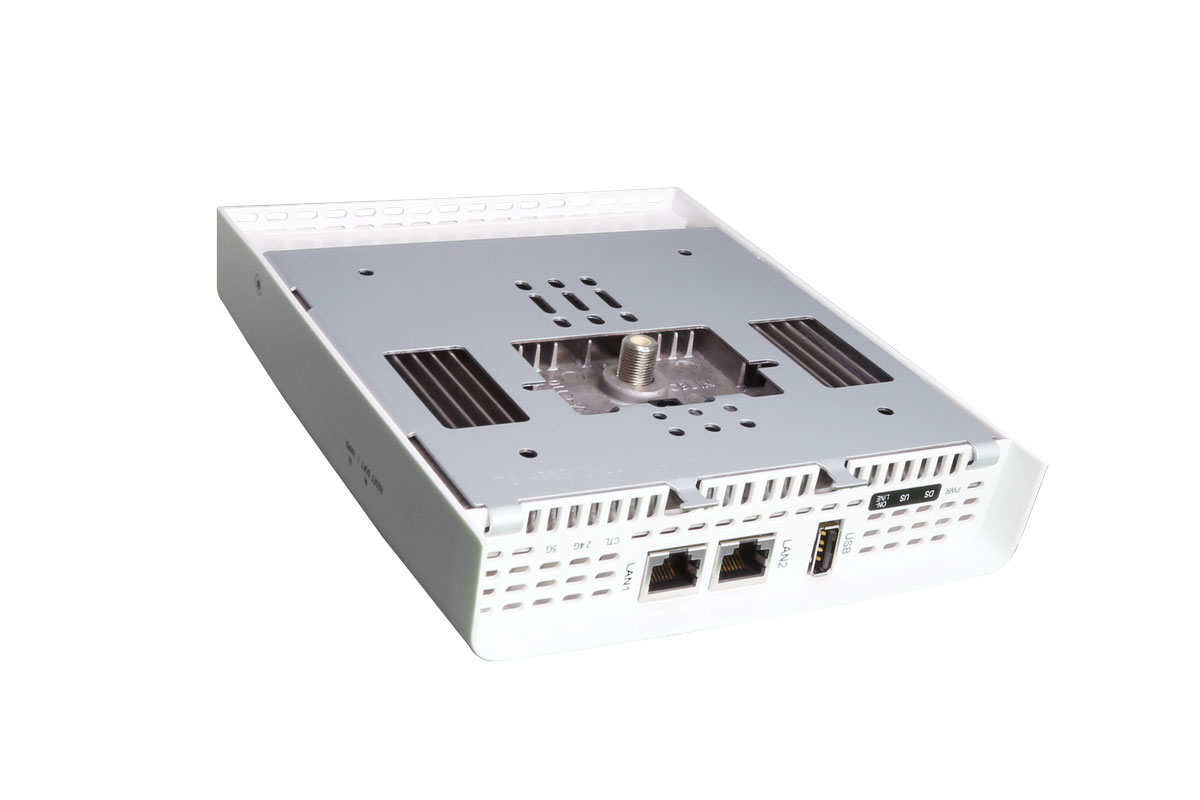

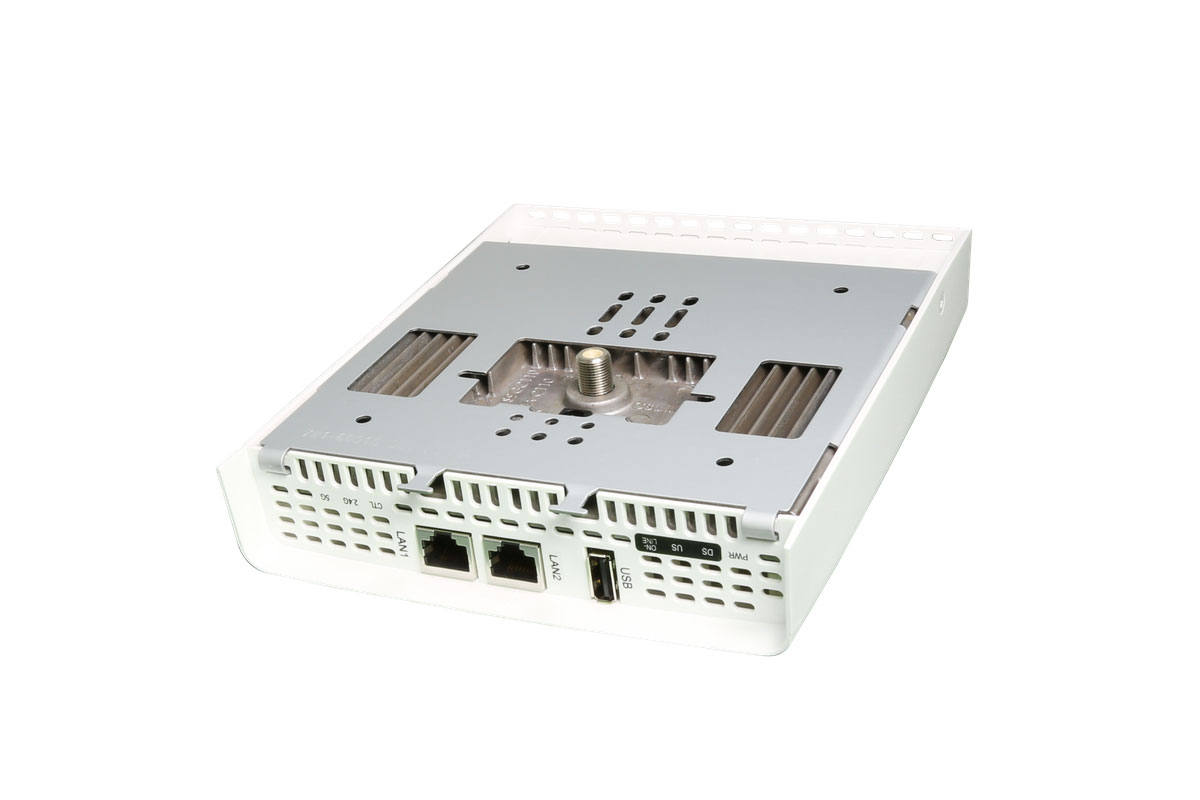

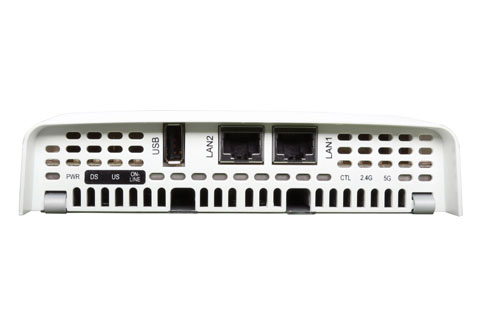

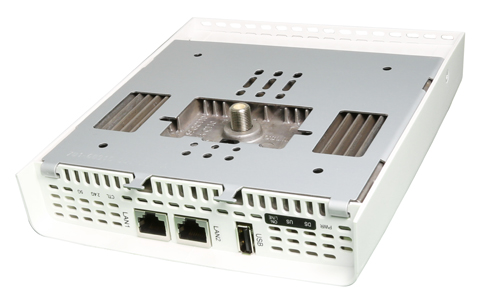

Equipped with two Ethernet ports for in-room access, the ZoneFlex C110 can be used to connect a range of wired network devices such as: IPTV set-top boxes and VoIP telephones, while simultaneously providing dual band 802.11ac wireless LAN connectivity. The C110 is powered via a 12V DC power adapter via a discrete and secure connection. Cable channels on the back of the C110 provide added installation flexibility and preserve access to legacy behind-wall cabling.

The ZoneFlex C110 can be deployed as a standalone device or centrally managed by RUCKUS SmartZone or ZoneDirector controller platforms.

Features:

Fast Wi-Fi Connectivity

• Integrated BeamFlex+ Smart Adaptive Antenna Technology
• BeamFlex+ support for up to 2 dB of additional gain and 5 dB of interference mitigation
• Polarization Diversity with Maximal Ratio Combining (PD-MRC) ensures reliable connectivity for mobile devices
• MU-MIMO improves network performance with efficient airtime utilization to benefit both Wave 2 and non-Wave 2 clients

High-Speed Backhaul

• DOSCIS 3.0 cable modem enables high-speed backhaul over existing coax infrastructure

Converged IP services

• Multiple SSIDs, port-based VLANs and robust authentication options make the C110 ideal for supporting concurrent IP-based services such as VoIP, IPTV, high-speed Internet access and in-room device connectivity over both wired (over Ethernet) and wireless

Flexible Deployment Options

• Enable C110’s to be supported in standalone mode or centrally managed by RUCKUS ZoneDirector or SmartZone controllers

Power and mounting

• Powered by 12V DC power adapter (included)
• Mounts to worldwide standard electrical outlet boxes

Benefits:

Integrated DOSCIS 3.0 Cable Modem
Integrated DOSCIS 3.0 cable modem featuring an enterprise class wireless access point and an integrated DOCSIS 3.0 cable modem, the C110 offers customers a simple, cost effective, and easy to manage solution for hospitality and MDU deployments.

Additive performance with BeamFlex+
BeamFlex+ adaptive antennas improve Wi-Fi signal quality by adapting to device location and orientation, which is ideal for better performance on handheld mobile devices.

802.11ac Wave 2 MU-MIMO
MU-MIMO improves network performance with efficient airtime utilization to benefit both Wave 2 and non-Wave 2 clients

Converged IP Services
Multiple SSIDs, port-based VLANs and robust authentication options make the ZoneFlex C110 ideal for supporting concurrent IP-based services such as VoIP, IPTV, high-speed Internet access and in-room device connectivity — both wired and wireless.

Channel Selection Optimizes Throughput
ChannelFly channel selection, based on throughput measurements, not just interference, chooses the best channel to give users the highest possible throughput.

Standalone or Centrally Managed
The ZoneFlex C110 can be deployed in standalone mode or centrally managed by the RUCKUS ZoneDirector or SmartZone controllers.

Sleek and Compact Form Factor
Installs into any standard electrical outlet box, creating a low profile, secure design with front port access to eliminate unsightly cabling and disruptive furniture placement.

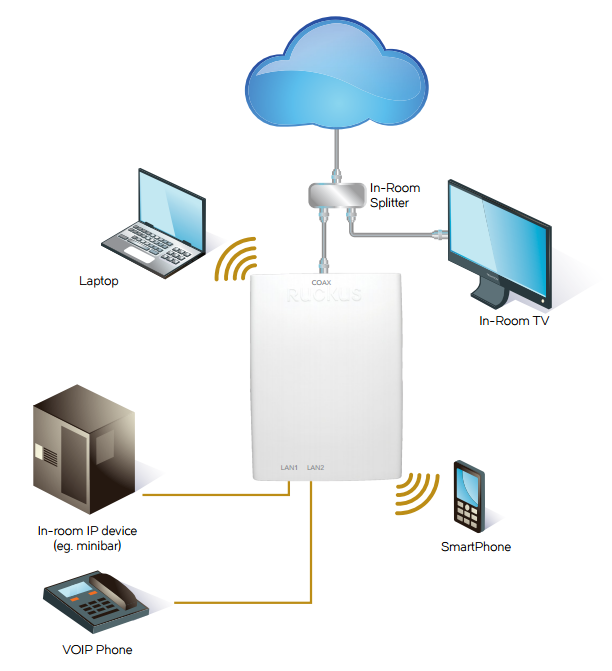

Deployment:

Converged Wired and Wireless Services

Specifications:

	H510	H320	C110	M510
	Learn More	Learn More	Learn More	Learn More
Feature/Description	802.11ac Wave 2 dual-concurrent wall switch with five GbE ports and BeamFlex+	802.11ac Wave 2 dual-concurrent wall switch with two 10/100MbE ports and BeamFlex+	802.11ac Wave2 dual-concurrent wall plate with built-in DOCSIS 3.0 cable modem	Mobile Indoor 802.11ac Wave 2 2x2:2 Wi-Fi AP with LTE Backhaul
Maximum PHY rate	867 Mbps (5GHz) 300 Mbps (2.4GHz)	867 Mbps (5GHz) 150 Mbps (2.4GHz)	867 Mbps (5GHz) 300 Mbps (2.4GHz)	867 Mbps (5GHz) 300 Mbps (2.4GHz)
Wi-Fi technology	802.11ac (5GHz) 802.11n (2.4GHz)	802.11ac (5GHz) 802.11n (2.4GHz)	802.11ac (5GHz) 802.11n (2.4GHz)	802.11ac (5GHz) 802.11n (2.4GHz)
Concurrent users	100	100	100	512
Radio chains:streams	2x2:2	5GHz: 2x2:2 MU MIMO 2.4GHz: 1x1:1 SU-MIMO	2X2:2	2x2:2
Antenna patterns (per band)	4	4	4	64
Antenna gain	Up to 1dBi	Up to 3dBi	Up to 3dBi	Up to 3dBi
PD-MRC
Rx sensitivity (2.4/5GHz)	-99/-96dBm	-99/-96dBm	-96/-95dBm	-101/-95dBm
ChannelFly
SmartMesh		—		(in future release)
USB (IoT Ready)		—
Ethernet ports	5 x 1GbE	2 x 10/100MbE 1 x 1GbE	2 x 10/100MbE	2 x 1GbE ports, RJ-45
Integrated BLE/ZigBee	—	—	—	—
WLAN Control and Management	·   ZoneDirector ·   SmartZone ·   Unleashed ·   RUCKUS Cloud	·   ZoneDirector ·   SmartZone ·   Unleashed ·   RUCKUS Cloud	·   ZoneDirector ·   SmartZone ·   Unleashed	·   SmartZone ·   Unleashed

† Maximum power varies by country
¹ BeamFlex gains are statistical system level effects translated to enhanced SINR based on observations over time in real-world conditions with multiple APs and many clients
* Subject to country regulations
** For current certification status please see price list

Views:

Documentation:

Download the RUCKUS ZoneFlex C110 Datasheet (PDF).
