RUCKUS ZoneFlex R510
Dual-Band 802.11ac Wave 2 2x2:2 Smart Wi-Fi Access Point

Overview:

High Performance, 802.11ac Wave 2 Mid-Range Smart Wi-Fi Access Points with Adaptive Antenna Technology

The RUCKUS ZoneFlex R510 delivers high-performance and reliable 802.11ac wireless networking with MU-MIMO (Multi-User Multiple-Input Multiple-Output) capability. MU-MIMO helps boost network throughput by serving multiple clients simultaneously and also benefiting non-Wave 2 clients, thus improving overall network performance.

The R510, through its USB port, also enables IoT readiness for technologies like BLE, which helps drive business efficiencies from both a revenue and cost perspective. It does this with existing 802.3af power, obviating the need for expensive, capital intensive switch upgrades.

Each ZoneFlex R510 integrates Ruckus-patented BeamFlex+, a software-controlled, high gain antenna array that continually forms and directs each Wi-Fi packet over the best performing signal path.

Using dual-polarized antennas the R510 adapts in real time to anticipate hand-held device movement and rotation ensuring consistent performance. outlets, and branch offices.

MU-MIMO

MU-MIMO helps Wave 2 and non-Wave 2 clients. The R510 can communicate simultaneously to multiple Wave 2 clients increasing network performance. This frees up airtime for non-Wave 2 clients resulting in enhanced aggregate network throughput.

Advanced WLAN Applications

When used with the RUCKUS WLAN controllers, each ZoneFlex R510 supports a wide range of value-added applications such as BYOD/guest onboarding, Dynamic PSK, hotspot authentication, wireless intrusion detection and many more. WLANs can be created and mapped to the same or different APs or VLANs. In a centrally managed configuration, the ZoneFlex R510 works with a wide range of authentication servers including Microsoft’s Active Directory, LDAP, and RADIUS.

Flexible Deployment Options

ZoneFlex R510 APs can be deployed as a standalone AP or as part of a centrally managed wireless LAN using ZoneDirector or SmartZone Smart WLAN controllers. ZoneFlex R510 can be deployed across any L2/L3 network and can bridge traffic onto the local network, tunnel to a central location using L2TP**, or route between the WAN and NAT’ed private subnets. With the RUCKUS controllers, each ZoneFlex R510 is automatically configured through the network making deployment quick and easy.

Complete Local And Remote Management

Each Zoneflex R510 can be managed by the ZoneDirector controller or the SmartZone controllers like SZ100, SCG200 or the vSZ. The controllers enable local management and control of APs, adding value-added services such as centralized AP provisioning, management and control at high scale.

Features:

Superior network efficiency at an affordable price

• Two-stream MU-MIMO 2x2:2 for simultaneous downlink transmissions to multiple Wave 2 client devices
• Concurrent dual-band (5GHz/2.4GHz) support
• 867 Mbps (5 GHz) and 300 Mbps (2.4 GHz) of user data rate
• Up to 4dB of signal-to-interference and noise (SINR) improvement and up to 10dB of interference mitigation
• Capable of supporting up to 512 clients
• Novel channel selection approach delivering up to 50 percent capacity gain over alternative background scanning approaches

Consistent and predictable performance

• R510 delivers up to twice the range and coverage of competitive products
• Adaptive antenna technology optimizes Wi-Fi performance in most environments
• Automatic interference mitigation, optimized for high-density environments
• Dual-polarized adaptive antennas with 64 antenna patterns per radio for ultra-reliability

Other Features

• 802.11ac Multi-User MIMO (MU-MIMO)
• Dual-band concurrent (5Ghz/2.4GHz)
• BeamFlex+ (PD-MRC) smart antenna, with support for 64 unique antenna patterns enables up to 4 dB of additional gain and up to 10 dB of additional interference mitigation
• Up to an additional 4dB BeamFlex gain / 10dB interference mitigation / 3 dBi physical antenna gain
• Automatic interference mitigation, optimized for high-density environments
• 802.11ac standard Tx Beamforming
• Standard 802.3af Power over Ethernet (PoE)

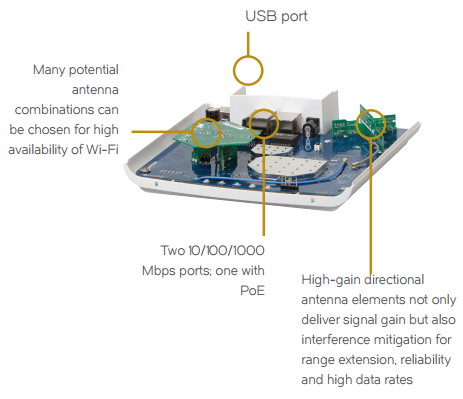

• Two 10/100/1000 Ethernet ports, one with 802.3af Power over Ethernet (PoE)
• USB Port for IoT technologies
• Router mode with NAT and DHCP services **
• IP multicast video streaming support
• Advanced QoS packet classification and automatic priority for latency-sensitive traffic
• Dynamic, pre-user rate-limiting for hotspot WLANs
• WPA-PSK (AES), 802.1X support for RADIUS and Active Directory*
• Ethernet 802.1x port-based authentication (authenticator and supplicant) **
• Dynamic PSK*
• Admission control/load balancing*
• Band steering and airtime fairness support
• Captive portal and guest accounts*
• Application recognition and control*
• SmartWay Bonjour gateway*
• SecureHotspot*
• SPOT location services*
• Band balancing*
• SmartMesh*

* when used with a controller platform
** only in standalone mode

Benefits:

MU-MIMO: Improves Network Performance For All Clients
This cutting edge Wi-Fi technology, gets you ready for the new 11ac Wave 2 mobile devices. It improves network efficiency & throughput for even non-Wave 2 clients

Hassle-free IoT Readiness
Ideal for enabling IoT technologies like BLE using the USB port

Extended Range Requiring Fewer APs
Adaptive antenna technology delivers up to 2x increase in Wi-Fi signal coverage minimizing the number of APs required to service any area

Sleek, Low Profile Enclosure For Ease-of-Deployment
Aesthetically-pleasing design and a range of mounting options

Channel Selection Optimizes Throughput
ChannelFly dynamic channel management, based on throughput measurements, not just interference, chooses the best channel to give users the highest possible throughput

Super Simple Configuration And Management
The industry’s simplest configuration and management through a Web-based wizard and automated deployment capabilities

Flexible Deployment Options
Standalone or controller-based deployment

Adaptive Polarization Diversity (PD-MRC)
Dual-polarized antennas that are dynamically selected provide better reception for hard to hear clients and more consistent performance as clients constantly change orientation

Hassle-free Migration To Higher Speed Wi-Fi
Support for standard 802.3af power over Ethernet allows enterprises to use existing PoE switches without costly upgrades

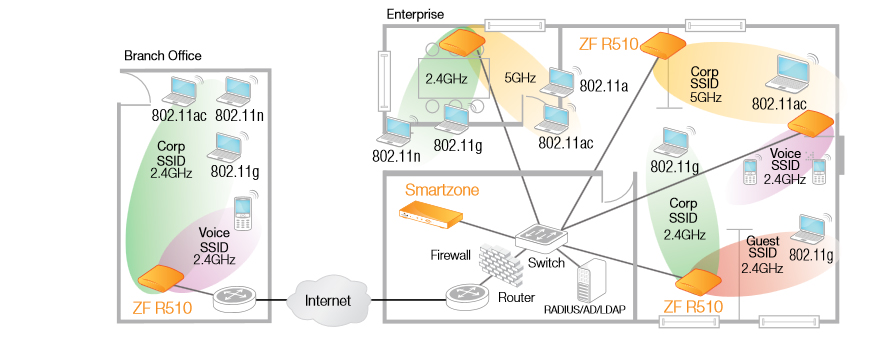

Deployment:

The Zoneflex R510 Integrates With Your Existing Network Infrastructure
Delivering best-in-class 802.11ac performance and reliability at a competitive price — making it the ideal wireless solution for mid-range enterprise and branch office applications.

Specifications:

	R650	R610	R510	R320	R310
	Learn More	Learn More	Learn More	Learn More	Learn More
Feature/Description	Mid-range Wi-Fi 6 (802.11ax) dual- concurrent AP with MU-MIMO and BeamFlex+	Mid-range 802.11ac Wave 2 dual-concurrent AP with MU-MIMO and BeamFlex+	Mid-range 802.11ac Wave 2 dual-concurrent AP with MU-MIMO and BeamFlex+	Entry level 802.11ac Wave 2 dual-concurrent AP with BeamFlex	Entry level 802.11ac Wave 1 dual-concurrent AP with BeamFlex
Maximum PHY rate	2400 Mbps (5GHz) 574 (2.4GHz)	1300  Mbps (5GHz) 450  Mbps (2.4GHz)	867 Mbps (5GHz) 300 Mbps (2.4GHz)	867 Mbps (5GHz) 300 Mbps (2.4GHz)	867 Mbps (5GHz) 300 Mbps (2.4GHz)
Wi-Fi technology	802.11ax (2.4GHz, 5GHz) Wi-Fi CERTIFIED 6™	802.11ac (5GHz) 802.11n (2.4GHz)	802.11ac (5GHz) 802.11n (2.4GHz)	802.11ac (5GHz) 802.11n (2.4GHz)	802.11ac (5GHz) 802.11n (2.4GHz)
Concurrent users	512	512	512	256	100
Radio chains:streams	5GHz: 4x4:4 MU-MIMO 2.4GHz: 2x2:2 MU-MIMO	3x3:3	2x2:2	2x2:2	2x2:2
Antenna patterns (per band)	128	512	64	64	64
Antenna gain	Up to 3dBi	Up to 3dBi	Up to 3dBi	Up to 3dBi	Up to 3dBi
PD-MRC				—	—
Rx sensitivity (2.4/5GHz)	-101dBm	-100dBm	-103dBm	-101dBm	-99dBm
ChannelFly
SmartMesh				—	—
USB (IoT Ready)				—	—
Ethernet ports	1 x 1 GbE 1 x 2.5 GbE	2 x 1GbE	2 x 1GbE	1 x 1GbE	1 x 1GbE
Integrated BLE/ZigBee		—	—	—	—
WLAN Control and Management	·   ZoneDirector ·   SmartZone ·   RUCKUS Cloud	·   ZoneDirector ·   SmartZone ·   Unleashed ·   RUCKUS Cloud	·   ZoneDirector ·   SmartZone ·   Unleashed ·   RUCKUS Cloud	·   ZoneDirector ·   SmartZone ·   Unleashed ·   RUCKUS Cloud	·   ZoneDirector ·   SmartZone ·   Unleashed ·   RUCKUS Cloud

† Maximum power varies by country
¹ BeamFlex gains are statistical system level effects translated to enhanced SINR based on observations over time in real-world conditions with multiple APs and many clients
* Subject to country regulations
** For current certification status please see price list

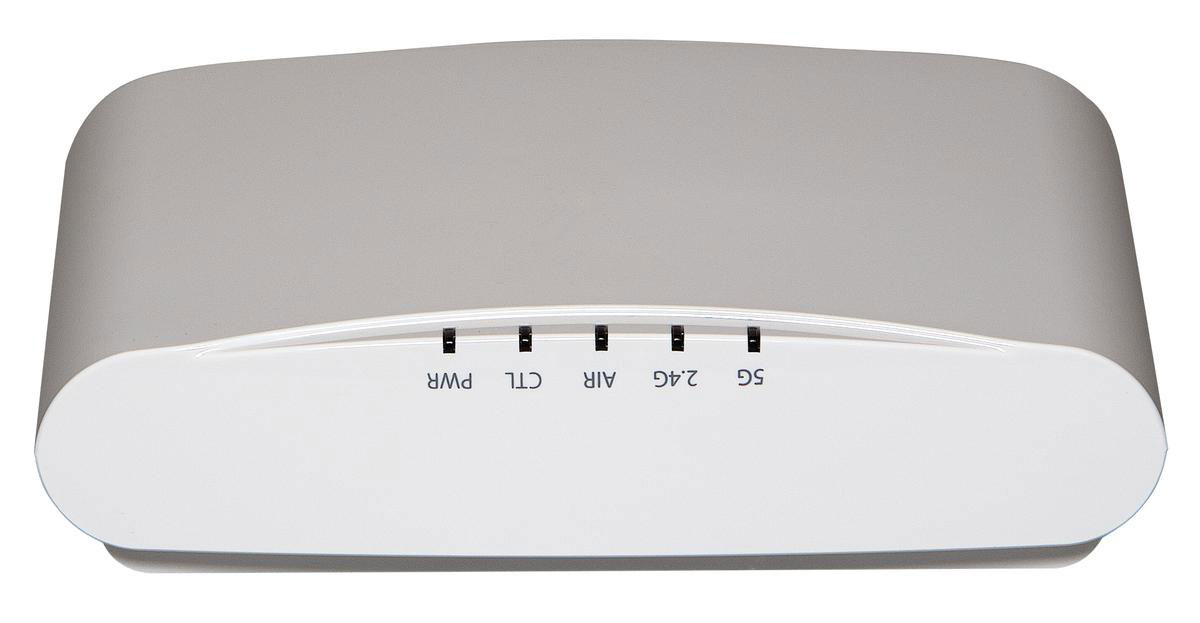

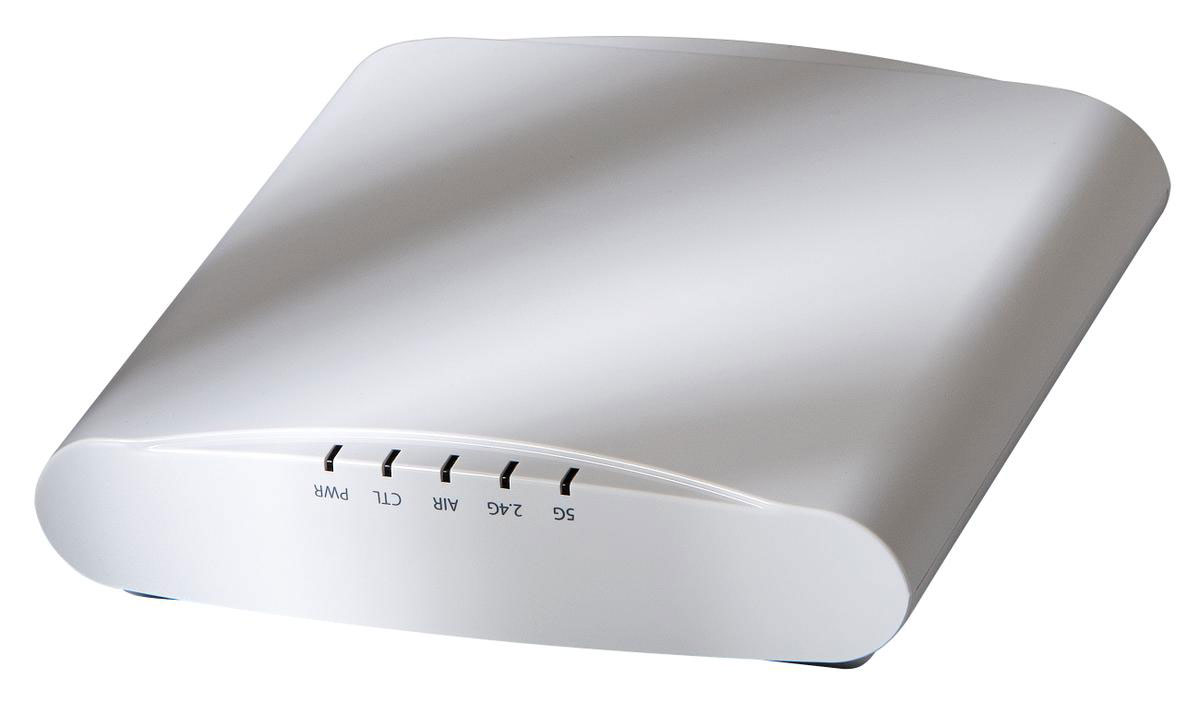

Views:

Documentation:

Download the RUCKUS ZoneFlex R510 Datasheet (PDF).
