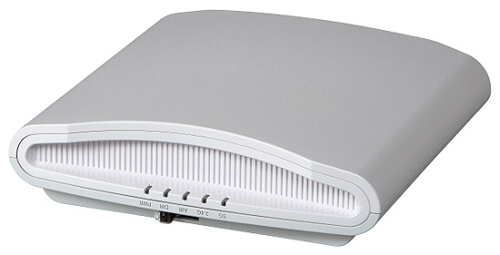

Ruckus’ Highest Capacity, Highest Performing Four-stream 802.11ac Wave 2 AP
RUCKUS R710 Unleashed enables controller-less Wi-Fi architecture for small business environments with superior performance, lower costs and simplified management. Separate controllers and access point licenses are no longer needed, significantly reducing upfront costs. Set-up is also easy, thanks to a simplified web interface that helps businesses configure Wi-Fi in just 60 seconds.

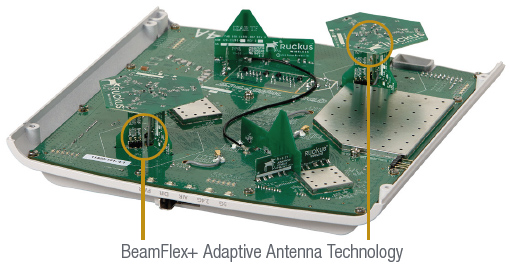

Featuring BeamFlex+ adaptive antenna technology, the ZoneFlex R710 Unleashed offers a substantial increase in performance and range by optimizing antenna coverage on a per client, per transmission basis. BeamFlex+ additionally mitigates co-channel interference by directing Wi-Fi signals where they are needed instead of towards neighboring access points. The R710’s BeamFlex+ adaptive antenna system is also equipped with dual polarization antennas, allowing the access point to adapt to the physical orientation of client devices and maximize uplink performance.
With throughput capacities of 800Mbps (2.4GHz) and 1733Mbps (5GHz), the ZoneFlex R710 Unleashed supports the highest available throughput for Wi-Fi clients. 802.11ac Multi-User MIMO (MU-MIMO) support allows the R710 Unleashed to simultaneously transmit to multiple client devices, drastically improving airtime efficiency, overall throughput, and availability.
ZoneFlex R710 Unleashed is purpose-built for high-capacity, high performance and interference-laden environments such as schools, universities, public venues, hotels, and conference centers. The perfect choice for data-intensive streaming multimedia applications, the ZoneFlex R710 Unleashed delivers picture perfect HD-quality IP video while supporting VoIP and data applications that have stringent quality of service requirements.
The ZoneFlex R710 Unleashed is backward compatible with all existing Wi-Fi clients, and is based on a highly resilient architecture.
Multi-User MIMO (MU-MIMO)
802.11ac MU-MIMO allows the ZoneFlex R710 Unleashed to transmit multiple spatial streams to multiple client devices simultaneously, increasing the total throughput and capacity of the wireless network. The ZoneFlex R710 Unleashed is able to provide up to three clients each their own dedicated full-bandwidth channel using an MU-MIMO technique known as spatial reuse. This capability enables several benefits.
Efficient use of available spectrum effectively multiplies the total capacity of a network, allowing it to meet the increasing data demand driven by the proliferation of mobile Wi-Fi clients and data-hungry applications and uses such as high-definition video streaming. Additionally, MU-MIMO does not require client devices to time-share connections with other clients on the network as in legacy Wi-Fi, which means each device experiences less wait time and makes the network more responsive overall. Even legacy clients benefit from MU-MIMO on the wireless network, because substantially increased efficiency for MU clients leaves the network with more free time and capacity by supporting multiple users.
Features:
Highest Performance
Up to 2 times extended range and coverage with RUCKUS BeamFlex technology: up to 5 dB of signal-to-interference and noise (SINR) improvement and up to 15dB of interference mitigation
Ultra-reliable mobile device connectivity with BeamFlex+ dual polarized adaptive antennas
Superior performance with 1733 Mbps (5 GHz) and 800 Mbps (2.4 GHz) of user throughput
Concurrent support for HD IPTV, VoIP and data with support for isochronous, multicast IP video streaming
Novel channel selection approach delivering up to 50 percent capacity gain over alternative background scanning approaches
Increased Device Density
Unprecedented 4x4:4 and MU-MIMO to address the need of high density wireless deployments.
Automatic interference mitigation, optimized for high-density environments
Capable of supporting up to 500 clients
Wi-Fi Monetization
Sensor Bluetooth Low Energy (BLE) USB port to enable proximity aware value add services such as wayfinding, custom coupons based on location, keyless entry, virtualized wallets, among others
SPoT location triangulation services to customize the end user experience and monetize the Wi-Fi network
SmartFlex Location and Analytics for big data end user monitoring and network monitoring
802.3af power mode option allowing to leverage legacy PoE switches and to easily deploy
Other Features
802.11ac Multi-User MIMO (MU-MIMO)
Concurrent dual-band (5GHz/2.4GHz) support
80MHz channelization; 256-QAM modulation support; 1733Mbps PHY rates at 5GHz
256-QAM support on 2.4GHz
Ethernet Port Link Aggregation (LACP)
Backward compatible with legacy 802.11 clients
802.3af mode of operation
802.11ac standard Tx Beamforming
Space Time Block Coding for increased handset performance
Improved Maximum Ratio Combining (MRC) for best-in-class receive sensitivity
Low Density Parity Check (LDPC) for increased data throughput at all ranges
BeamFlex+ (PD-MRC) improves signal reception of mobile devices
Integrated smart antenna with many unique patterns for ultra reliability
Unmatched Rx sensitivity down to -104dBm
Highly Resilient Architecture
USB port for hosting Internet-of-Things (IoT) devices such as Blue- tooth Low Energy (BLE) smart beacons
Integrated DHCP support
Multicast IP video streaming support
Four software QoS queues per client station
Up to 16 BSSIDs per radio with unique QoS and security policies

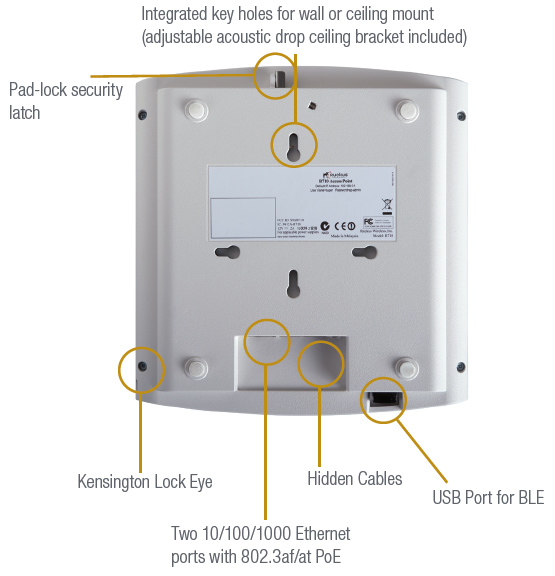

Wall or ceiling mountable with padlock security
Built in mounting options for fast an easy deployment
WPA-PSK (AES), 802.1X support for RADIUS and AD
Zero-IT and Dynamic PSK
Admission control/load balancing
Band balancing
Captive portal and guest accounts
SmartMesh Networking
Benefits:
Industry's highest performing 802.11ac AP
ZoneFlex R710 Unleashed delivers better performance over competitive 802.11ac APs
MU-MIMO increases efficiency and capacity
MU-MIMO allows for clients to utilize the RF spectrum much more efficiently by allowing multiple AP to client transmissions
Dual concurrent 4x4:4 MIMO and BeamFlex+
Four spatial streams combined with BeamFlex+ adaptive antenna technology ensures the most throughput out of the total 1733 Mbps (5 GHz) and 800 Mbps (2.4 GHz) available
Adaptive polarization diversity with BeamFlex+ (PD-MRC)
Dual-polarized antennas that provide better reception for hard to hear clients and more consistent performance as clients constantly change orientation. BeamFlex+ with 802.11ac enables better rates vs. other vendors
Reduced Wi-Fi interference
Up to 15 dB of interference mitigation and a 50 percent reduction in co-channel interference to neighboring APs
No need to upgrade PoE switches in 802.3af mode
Operates under 802.3af power requiring no need to upgrade PoE switches under full .11ac dual band operation
Hassle Free Migration to Higher Speed Wi-Fi
Support for standard 802.3af power over Ethernet allows enterprises to use existing PoE switches without costly upgrades
Best in class channel selection with ChannelFly™
Capacity-driven channel selection predict and automatically selects best performing channel based on statistical, real-time capacity analysis of all RF channels
Flexible deployment options
Standalone or centrally managed deployment options
Deployment:
The ZoneFlex R710 Unleashed integrates with your existing network infrastructure, delivering best-in-class 802.11ac performance and reliability at a competitive price—making it the ideal wireless solution for small business environments.

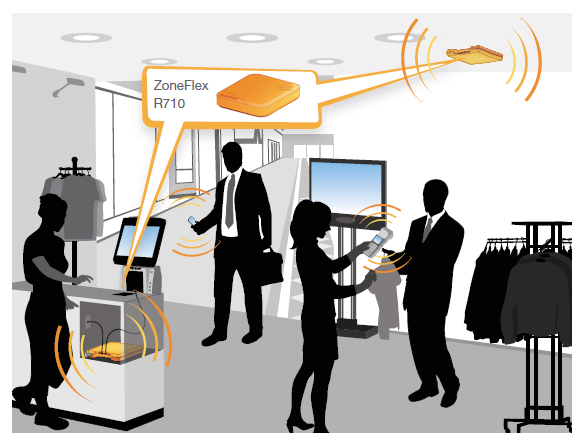

Deployment For Retail
The ZoneFlex R710 Unleashed is ideal for deployment in retail to provide inconspicuous wireless connection to high quality video, wireless IP phones and data access for handheld PoS bar code scanners.
RUCKUS Unleashed:
Want blazing-fast Wi-Fi performance? Simple installation and management? Business-class security and resiliency? Enterprise-class features? And all at an affordable cost? Welcome to RUCKUS Unleashed. These access points (APs) use our patented technologies to deliver Ruckus’ industry-leading Wi-Fi performance, but in a package designed and priced for small and medium-size businesses (SMBs) and organizations
Introducing RUCKUS Unleashed
RUCKUS Unleashed is a high-performance, simple-to-setup, easy-to-manage and affordable portfolio of access points. With built-in controller functionality, there’s no need to invest in a separate appliance. You can manage your entire network (APs and switches) from your phone or web browser. Deploying at multiple sites? Manage all your Wi-Fi networks from one place through the Unleashed Multi-Site Manager. You can get your network up and running in under 5 minutes
Where can RUCKUS Unleashed deliver maximum value?
RUCKUS Unleashed APs and switches are designed for small and midsize businesses with a single location or multiple locations with up to 128 APs, 2048 clients and 8 switches per deployment. They’re the perfect choice for smaller organizations that need to provide high-performing, enterprise Wi-Fi to employees, customers and guests without breaking the bank. Using the Unleashed mobile app, Unleashed APs can be managed by practically anyone—no specialized IT expertise required. And Unleashed APs are designed to easily scale up as the business grows—a key requirement for the 58% of SMBs that expect to grow within the next 6–12 months.
Enterprise-grade features
RUCKUS Unleashed APs and switches come loaded with enterprise-grade features to customize, optimize and secure your Wi-Fi networks and deliver great user experiences. Key features are highlighted below.
FEATURE
BENEFIT
Guest Services
Give guests secure, high-performance Wi-Fi access, while isolating their traffic from the private business network easily. Customize your guest Wi-Fi portal with your logo, brand and messages. Provide Wi-Fi access through Guest Passes, or have guests authenticate using social media accounts such as Facebook to eliminate the hassle (and security holes) of sharing
Wi-Fi passwords.
Application Visibility and Control
Monitor the network usage patterns of over 2,200 applications with Deep Packet Inspection, and find out which ones are consuming the most resources. You can define application-specific access rules (such as limiting access to YouTube or social media), or even limit Wi-Fi speeds for specific applications and/or SSIDs.
Resiliency
Continue to access printers and other network devices even if internet connectivity fails. Users stay connected to the Wi-Fi network even if one or several APs fail for any reason, as long as at least one AP in the network is online.
Security
Use DPSK to eliminate the risks of shared passwords and lock down access to the Wi-Fi network—without complex configurations. In addition, secure your network and protect your clients with WPA encryption, client isolation and 802.1x for RADIUS and Active Directory.

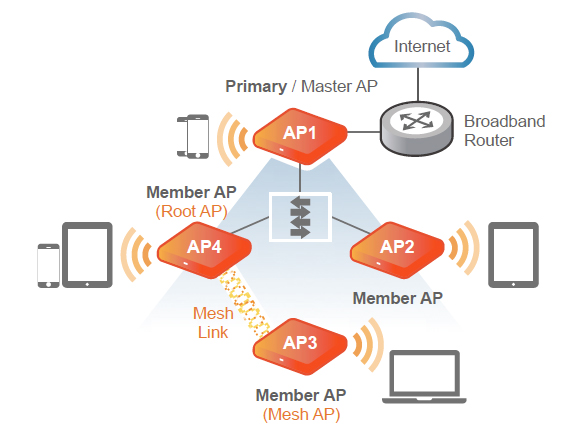

Zero Touch Mesh
Add new Unleashed APs to the existing network securely over the air. Dramatically speed up and simplify the installation of an Unleashed network.
Multiple Language Support
Create and manage your Wi-Fi network in your own language. RUCKUS Unleashed currently supports 13 languages.
URL Filtering
Define web access rules for your network users. Protect your network from malware and phishing sites.
Social Login
With the built-in Social Login feature, you can sign into the Unleashed mobile app using your Gmail, Facebook or Twitter account, and link your Unleashed Wi-Fi network. From that point on, you can manage your Unleashed
network from anywhere in the world using your social login.
Remote Management
Need a quick answer or help troubleshooting a network issue? Just tap the “Invite for Remote Management” option on the mobile app, and send a text message or email with a link containing all the Unleashed network information to an expert.
AP Groups
Apply multiple configuration profiles to different groups of APs.
Zero IT
Easily onboard customers or employees onto your Wi-Fi network through a simple, self-service portal.
SSID Rate-Limiting
If you want to limit data speeds for a particular group of users (such as guest users), you can create a separate SSID with a data rate “speed limit” that you define.
Pricing and product availability subject to change without notice.
CommScope RUCKUS Products
WatchDog End User Support for Unleashed R710
Support includes Level 1-3 Support (24 x 7 x 365 days), Support web login, software updates and upgrades. Advance Replacement on the Unleashed APs is now included with support. There is no need to purchase Advance Replacement support separately.
WatchDog End User Support for Unleashed R710, 1 Yr
#806-RU71-1000 Our Price: $31.50
WatchDog End User Support for Unleashed R710, 3 Yr
#806-RU71-3000 Our Price: $63.00
WatchDog End User Support for Unleashed R710, 5 Yr
#806-RU71-5000 Our Price: $94.50
RUCKUS ZoneFlex R710 Series Accessories
RUCKUS Spares of US Power Adapter for RUCKUS R700, R710, R610, ZoneDirector 1200- quantity of 1
#902-1169-US00 Our Price: $30.00
RUCKUS Spares of Power over Ethernet (PoE) Adapter (10/100/1000 Mbps) with US power adapter, quantity of 1 unit (applicable for 7731, P300, R710, R610, R700, R600, R500, R510, R300, R310, 7982, 7372, 7352, 7321, H510, H500, H320, 7055, T300, T301, T610, T610s)
#902-0162-US00 Our Price: $90.00
RUCKUS Flush-frame acoustic ceiling bracket for RUCKUS R710 Flush-frame only, no applicable for standard (recessed-frame) acoustic ceiling
#902-0123-0000 Our Price: $15.00
RUCKUS T-bar ceiling mount kit for R720, R710, R610, R510, R310, R320, R700, R600, R500, M510 for mounting to flush frame ceiling
