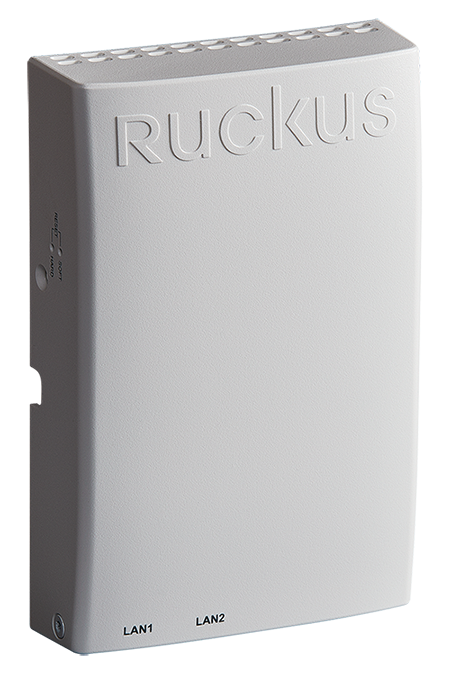

RUCKUS ZoneFlex Unleashed H320

Overview:

Wall-Mounted 802.11ac Wave 2 Wi-Fi AP and Switch

As users bring more devices into hotel rooms, meeting rooms, and classrooms, Wi-Fi has become a critical amenity. But delivering great performance in every room can quickly become cost-prohibitive.

The RUCKUS Unleashed H320 wall-mounted 802.11ac Wave 2 Wi-Fi access point and switch makes it easy to provide superior wired and wireless connectivity to every user and device. Designed for in-room deployments, the Unleashed H320 can be discretely mounted over standard electrical junction boxes. With two Ethernet ports, it can securely connect IPTV set-tops, IP phones, and other wired devices without unsightly cabling, while delivering blazing-fast Wi-Fi.

Upgrade your in-room technology with the industry’s best Wi-Fi, along with converged wired connectivity in a single, cost-effective solution.

Wi-Fi is a critical amenity as users bring more devices into our hotel rooms, meeting rooms, and classrooms. Today, with an ever increasing need for quality Wi-Fi, an AP in every room has increasingly become necessary.

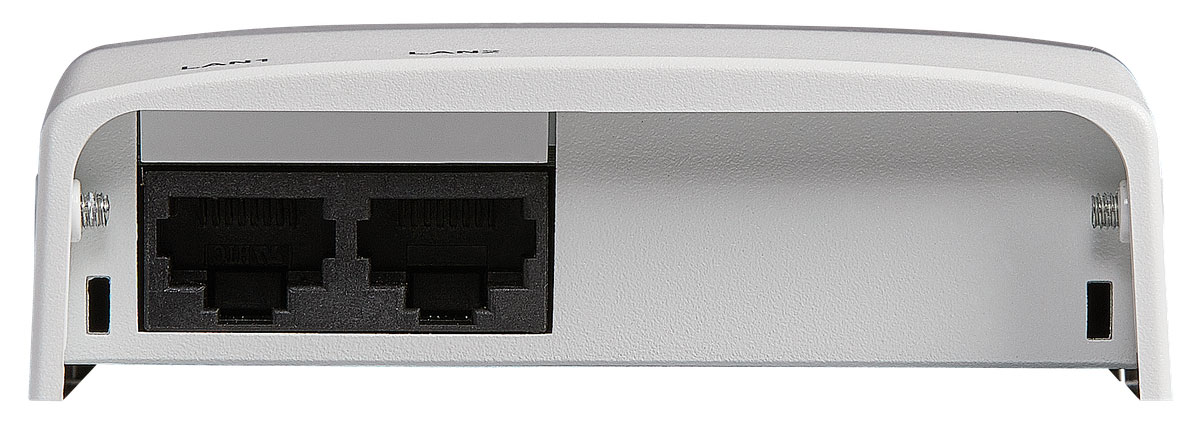

The Unleashed H320 combines an 802.11ac Wave 2 Wi-Fi access point and wired switch into one wall-mount device. Designed specifically for per-room deployments, the Unleashed H320 is compact, inconspicuous, secure, and easy to mount to an electrical junction box. Bottom facing Ethernet ports eliminate unsightly cabling and accommodate any furniture placement.

The Unleashed H320 easily supports converged wired and wireless services with one device, that include VoIP, IPTV, high-speed Internet access and in-room Wi-Fi device connectivity.

This 802.11ac Wave 2 Wi-Fi AP and switch incorporates patented technologies found only in the RUCKUS Wi-Fi portfolio.

• Extended coverage with patented BeamFlex+ utilizing multi-directional antenna patterns
• Improved throughput with ChannelFly which dynamically find less congested Wi-Fi channels to use

The Unleashed H320 supports Multi-User MIMO (MU-MIMO) which increases network throughput by transmitting to multiple clients simultaneously.

Support per-room wired IP devices from TVs to phones with 2 onboard Ethernet ports. Also, with built-in visual troubleshooting tools within RUCKUS Wi-Fi controllers, administrators can accelerate resolution of trouble tickets.

Features:

WIRELESS

• Integrated dual radio 2x2 802.11ac Wave 2 Wi-Fi AP and Ethernet wall switch supporting Multi-User MIMO (MU-MIMO)
• RUCKUS patented BeamFlex+ adaptive antennas optimized for in-room performance and mobile clients
• Matched Band Coverage ensures similar Wi-Fi coverage for both 2.4 and 5 GHz client devices
• Multiple BSSIDs per radio with unique QoS and security policies
• WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i
• 802.1X support for RADIUS and Active Directory

WIRED

• 1 x 1GbE uplink port
• 2 x 10/100Mbps Ethernet ports
• Cable channel for preserving legacy infrastructure (e.g. PBX phones)

POWER

• Powered by PoE

SOFTWARE

• SPoT™ Real-time location engine and analytics software
• Cloudpath™ Security and management software
• SmartCell Insight (Network analytics engine)
• SmartCast™ QoS engine
• Dynamic PSK™* technology
• Application recognition and control

Accessories

• Mounts over a standard US and EU single gang wall jack

Benefits:

AFFORDABLE ALL-IN-ONE
Deliver great in-room Wi-Fi and concurrent wired IP connectivity with 802.11ac Wave 2 speed and a built-in 2-port switch.

STUNNING PERFORMANCE
Extends coverage with patented BeamFlex+™ adaptive antenna technology while mitigating interference by utilizing multi-directional antenna patterns.

MULTIPLE MANAGEMENT OPTIONS
Manage the Unleashed H320 from the cloud, or with onpremises physical/virtual appliances.

GET OPTIMAL THROUGHPUT
ChannelFly™ dynamic channel technology uses machine learning to automatically find the least congested channels. You always get the highest throughput the band can support

SERVICE MORE DEVICES
Connect more devices simultaneously with two MUMIMO spatial streams and concurrent dual-band 2.4/5GHz radios while enhancing non-Wave 2 device performance.

SUPPORT MORE SERVICES
Multiple SSIDs and switch ports help support services such as VoIP, IPTV, and high-speed Internet access and in-room device connectivity

KEEP YOUR SWITCHES AND CABLES
Designed to operate on existing PoE switches and CAT 5e cabling to minimize costs.

MORE THAN WI-FI
Enhance your network with Cloudpath™ security and management software, SPoT™ real-time Wi-Fi location engine and analytics software, and SCI network analytics

RUCKUS Unleashed:

Want blazing-fast Wi-Fi performance? Simple installation and management? Business-class security and resiliency? Enterprise-class features? And all at an affordable cost? Welcome to RUCKUS Unleashed. These access points (APs) use our patented technologies to deliver Ruckus’ industry-leading Wi-Fi performance, but in a package designed and priced for small and medium-size businesses (SMBs) and organizations

Introducing RUCKUS Unleashed

RUCKUS Unleashed is a high-performance, simple-to-setup, easy-to-manage and affordable portfolio of access points. With built-in controller functionality, there’s no need to invest in a separate appliance. You can manage your entire network (APs and switches) from your phone or web browser. Deploying at multiple sites? Manage all your Wi-Fi networks from one place through the Unleashed Multi-Site Manager. You can get your network up and running in under 5 minutes

Where can RUCKUS Unleashed deliver maximum value?

RUCKUS Unleashed APs and switches are designed for small and midsize businesses with a single location or multiple locations with up to 128 APs, 2048 clients and 8 switches per deployment. They’re the perfect choice for smaller organizations that need to provide high-performing, enterprise Wi-Fi to employees, customers and guests without breaking the bank. Using the Unleashed mobile app, Unleashed APs can be managed by practically anyone—no specialized IT expertise required. And Unleashed APs are designed to easily scale up as the business grows—a key requirement for the 58% of SMBs that expect to grow within the next 6–12 months.

Enterprise-grade features

RUCKUS Unleashed APs and switches come loaded with enterprise-grade features to customize, optimize and secure your Wi-Fi networks and deliver great user experiences. Key features are highlighted below.

Specifications:

	H510	H320	C110	M510
	Learn More	Learn More	Learn More	Learn More
Feature/Description	802.11ac Wave 2 dual-concurrent wall switch with five GbE ports and BeamFlex+	802.11ac Wave 2 dual-concurrent wall switch with two 10/100MbE ports and BeamFlex+	802.11ac Wave2 dual-concurrent wall plate with built-in DOCSIS 3.0 cable modem	Mobile Indoor 802.11ac Wave 2 2x2:2 Wi-Fi AP with LTE Backhaul
Maximum PHY rate	867 Mbps (5GHz) 300 Mbps (2.4GHz)	867 Mbps (5GHz) 150 Mbps (2.4GHz)	867 Mbps (5GHz) 300 Mbps (2.4GHz)	867 Mbps (5GHz) 300 Mbps (2.4GHz)
Wi-Fi technology	802.11ac (5GHz) 802.11n (2.4GHz)	802.11ac (5GHz) 802.11n (2.4GHz)	802.11ac (5GHz) 802.11n (2.4GHz)	802.11ac (5GHz) 802.11n (2.4GHz)
Concurrent users	100	100	100	512
Radio chains:streams	2x2:2	5GHz: 2x2:2 MU MIMO 2.4GHz: 1x1:1 SU-MIMO	2X2:2	2x2:2
Antenna patterns (per band)	4	4	4	64
Antenna gain	Up to 1dBi	Up to 3dBi	Up to 3dBi	Up to 3dBi
PD-MRC
Rx sensitivity (2.4/5GHz)	-99/-96dBm	-99/-96dBm	-96/-95dBm	-101/-95dBm
ChannelFly
SmartMesh		—		(in future release)
USB (IoT Ready)		—
Ethernet ports	5 x 1GbE	2 x 10/100MbE 1 x 1GbE	2 x 10/100MbE	2 x 1GbE ports, RJ-45
Integrated BLE/ZigBee	—	—	—	—
WLAN Control and Management	·   ZoneDirector ·   SmartZone ·   Unleashed ·   RUCKUS Cloud	·   ZoneDirector ·   SmartZone ·   Unleashed ·   RUCKUS Cloud	·   ZoneDirector ·   SmartZone ·   Unleashed	·   SmartZone ·   Unleashed

† Maximum power varies by country
¹ BeamFlex gains are statistical system level effects translated to enhanced SINR based on observations over time in real-world conditions with multiple APs and many clients
* Subject to country regulations
** For current certification status please see price list

Product Comparison:

Indoor Access Points

Outdoor Access Points

Specialty Access Points

Documentation:

Download the RUCKUS Unleashed Overview (PDF).

Download the RUCKUS ZoneFlex H320 Datasheet (PDF).
