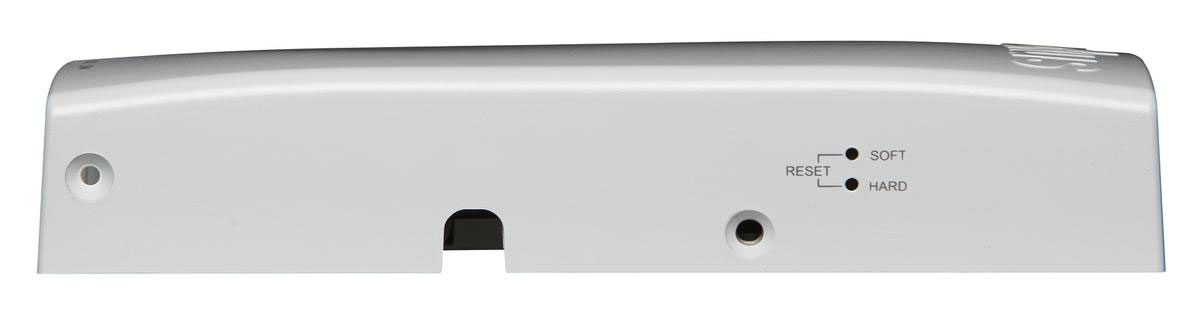

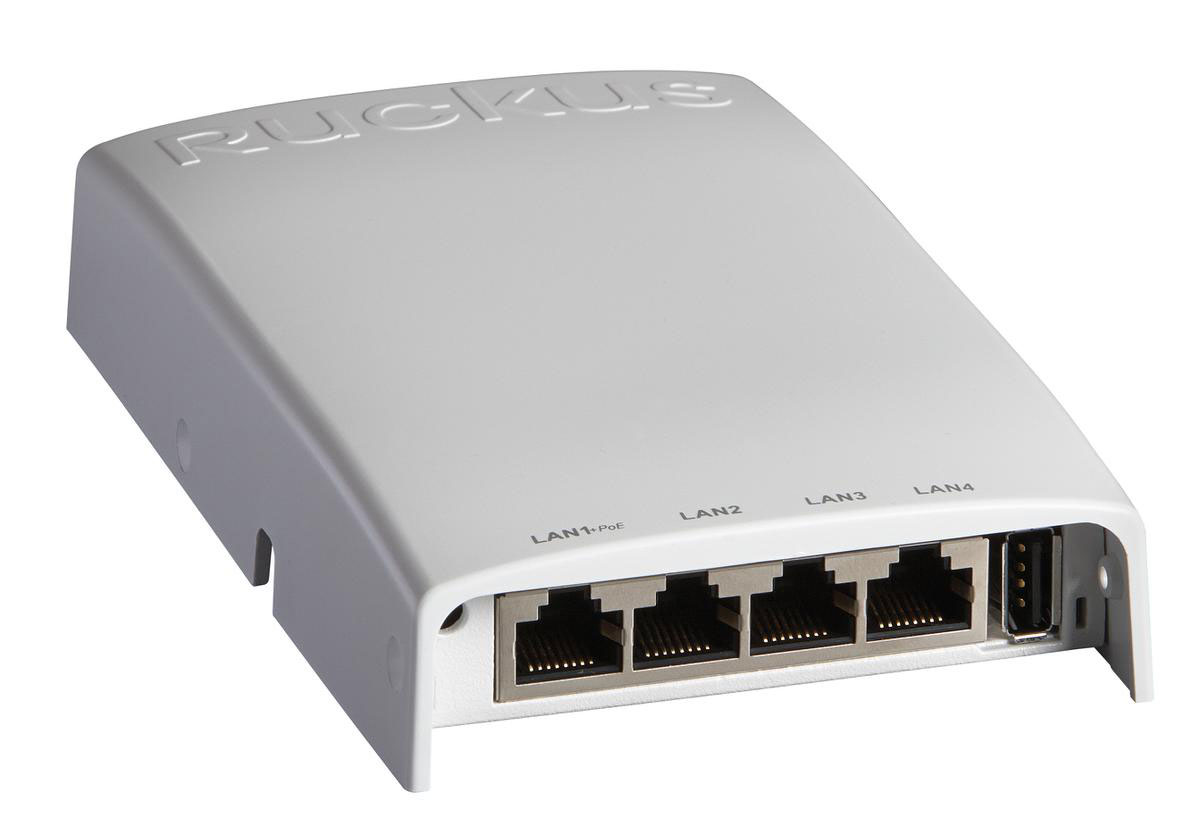

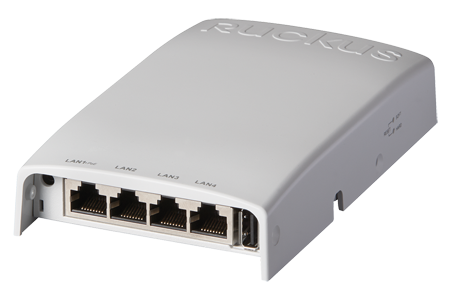

RUCKUS ZoneFlex H510 Unleashed
Multiservice 802.11ac Wave 2 Wired/Wireless Wall Switch

Overview:

High Performance 802.11ac Wave 2 Integrated Wired/wireless Wall Switch

RUCKUS H510 Unleashed enables controller-less Wi-Fi architecture for hospitality and small business environments with superior performance, lower costs and simplified management. Separate controllers and access point licenses are no longer needed, significantly reducing upfront costs. Set-up is also easy, thanks to a simplified web interface that helps businesses configure Wi-Fi in just 60 seconds.

The ZoneFlex™ H510 Unleashed is the industry’s first Wave 2 802.11ac wired and wireless wall switch using Ruckus’ patented BeamFlex+ adaptive antenna technology to deliver high-speed 802.11ac Wi-Fi in an ultra-sleek, low-profile design that can be discretely installed over a standard electrical junction box. Ideal for offering converged services in hotel guest rooms, student residences, and multi-dwelling units, the ZoneFlex H510 Unleashed provides an easy way to offer multiple connections in a single room without multiple cables.

The ZoneFlex H510 Unleashed supports Multi-User MIMO (MU-MIMO) as a Wave 2 solution and can increase network throughput by transmitting to two Wave 2 clients at the same instant in time. This efficient utilization of the Wi-Fi channel boosts performance for Wave 2 clients but also frees up airtime for all clients, which means even non-Wave 2 clients see a performance benefit.

The “mobile device ready” ZoneFlex H510 Unleashed with BeamFlex+ adapts in real time to client device location and physical orientation, delivering consistent Wi-Fi performance. The BeamFlex+ adaptive antenna system of the ZoneFlex H510 Unleashed is optimized to deliver best-in-class Wi-Fi coverage and performance in hotel guest rooms and MDU residences.

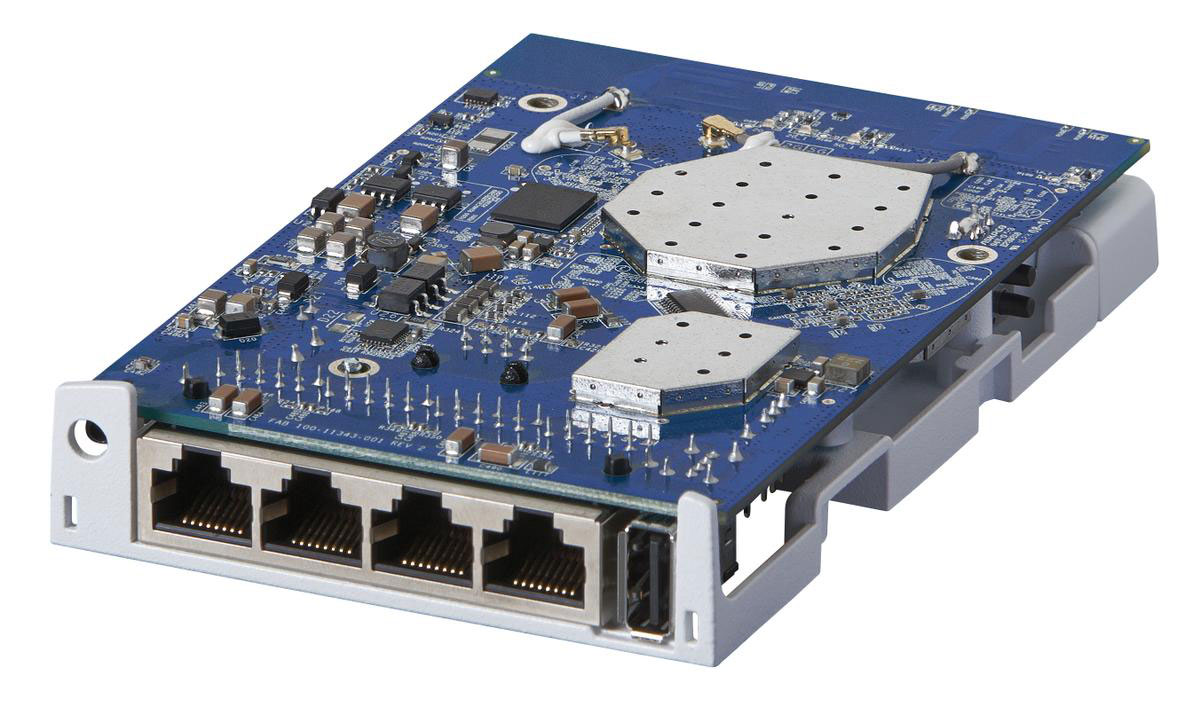

Equipped with four Ethernet ports for in-room access, the ZoneFlex H510 Unleashed can be used to connect a range of wired network devices such as IPTV set top boxes, IP telephones, or networked minibars while simultaneously providing dual band 802.11ac wireless LAN coverage. An IEEE 802.3af-compliant Power-overEthernet (PoE) port on the H510 Unleashed allows devices such as IP telephones to be powered directly from the wall switch. The H510 Unleashed itself may be powered via standard PoE or a DC power adapter.

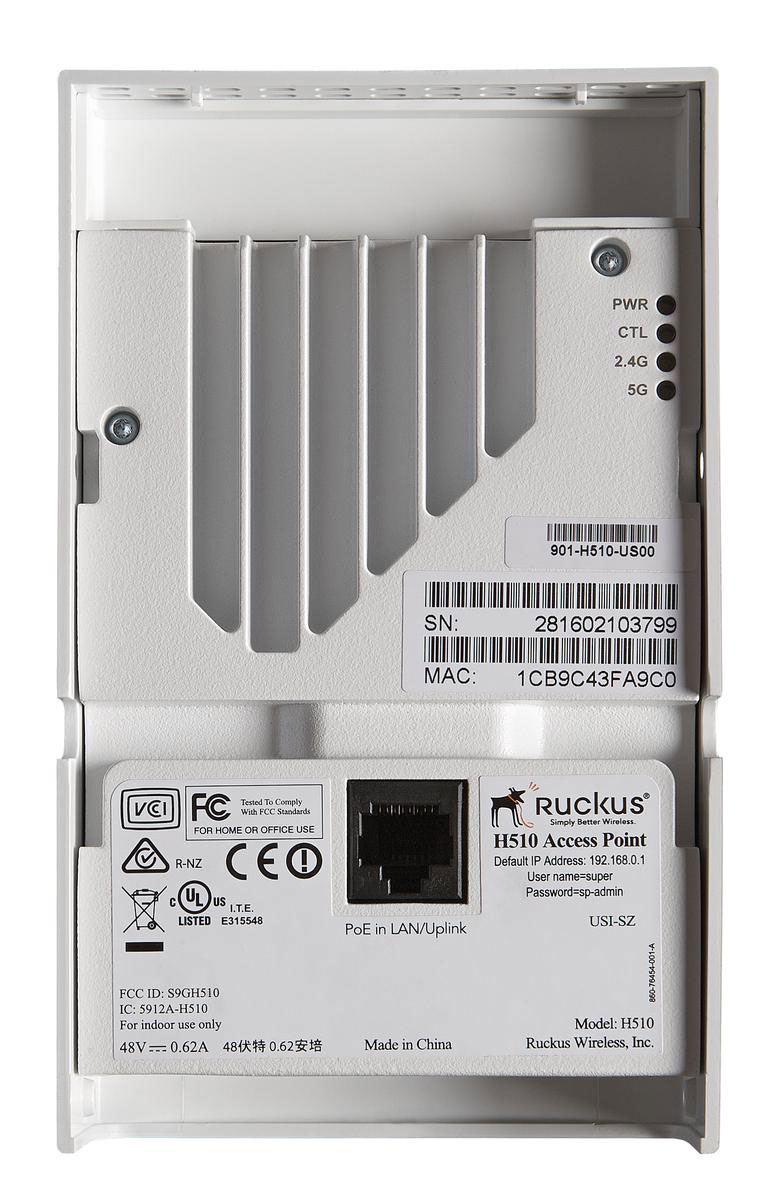

The ZoneFlex H510 Unleashed offers maximum flexibility and future-proofed utility. It is designed to securely support future add-on radio modules for wireless connectivity beyond best-in-class Wi-Fi. The cable pathways at the rear, support legacy cabling such as RG6 or CAT3/CAT5. Existing services such as video and voice over Ethernet can co-exist within the same junction box, reducing both installation time and construction costs.

Features:

Integrated BeamFlex+ Smart Antenna Technology

• BeamFlex+ support for up to 4 dB of signal gain and 10 dB of interference mitigation in addition to the antenna gain
• Polarization Diversity with Maximal Ratio Combining (PD-MRC) ensures reliable connectivity for mobile devices

Superior, Fast Wi-Fi Connectivity

• 802.11ac 2X2x2:2 stream dual-band 2.4GHz and 5GHz concurrent connectivity with BeamFlex+
• In-room device provides integrated Wi-Fi AP and Ethernet wall switch for a wide range of devices and applications
• Multiple SSIDs, port-based VLANs support, concurrent IP-based services such as VoIP, IPTV, high-speed Internet access and in-room device connectivity
• Robust authentication options include: 802.1x, MAC-based, LDAP, RADIUS, Active Directory and authentication through an internal user database

Easy to Configure and Deploy

• Can be installed over any standard network wall outlet
• Gigabit Ethernet uplink with PoE input (802.3af/at) for easy deployment without the need for additional power outlets. Reduces the need for power cabling, switch ports and power sourcing equipment
• Powers up PoE+ devices such as IP-based VoIP phones further eliminating power cords that clutter the environment.
• Pass-through feature allows native connectivity for existing digital phones or in room network devices
• Can be deployed in standalone mode or centrally managed by the RUCKUS vSCG, SmartZone, ZoneDirector, RUCKUS Cloud Wi-Fi or RUCKUS FlexMaster systems

Perfect for hotel guest rooms and dormitories

• Sleek, inconspicuous compact form factor for best aesthetics
• Front port access eliminates unsightly cabling and disruptive furniture placement

Other Features

• Integrated dual radio 2x2 802.11ac Wav 2 Wi-Fi AP and Ethernet wall switch supporting Multi-User MIMO (MU-MIMO)
• RUCKUS patented BeamFlex+ adaptive antennas optimized for in-room performance and mobile clients
• Matched Band Coverage ensures similar Wi-Fi coverage for both 2.4 and 5 GHz client devices
• Modular options for add-on radios
• Powered by either PoE or 48VDC
• Supplies PoE power for in-room devices such as VoIP phones
• SmartCast QoS
• Multiple BSSIDs per radio with unique QoS and security policies
• WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i
• 802.1X support for RADIUS and Active Directory
• Dynamic PSK*
• Gateway mode with NAT and DHCP services
• Application recognition and control
• Mounts over a standard US and EU single gang wall jack
• RJ-45 for uplink Ethernet port
• Cable channel for preserving legacy infrastructure (e.g. PBX phones)
• SmartMesh Networking

*with management.

Benefits:

Unleash the Performance
In the Unleashed version, the ZoneFLex H510 is capable of supporting controller-less deployments for up to 25 access points and 100 concurrent devices per AP.

Wave 2 MU-MIMO
Network performance improved by transmitting to multiple clients at the same instant.

Converged IP Service
Multiple SSIDs, port-based VLANs and four Gigabit Ethernet access ports make the ZoneFlex H510 ideal for supporting concurrent IP-based services such as VoIP, IPTV, high-speed Internet access and in-room device connectivity — both wired and wireless

Additive Performance With Beamflex+
BeamFlex+ adaptive antennas improve Wi-Fi signal quality by adapting to device location and orientation, which is ideal for better performance on handheld mobile devices

Modular Support
The H510 has been designed to accommodate snap-on modules for a variety of applications including connectivity beyond Wi-Fi

Flexible Deployment Options
The ZoneFlex H510 requires a single cable drop and operates under standard 802.3af PoE, reducing cabling, switch ports and power sourcing equipment

Sleek, Inconspicuous Compact Form Factor For Best Aesthetics
Installs into any standard electrical outlet box creating a low profile, secure design and front port access which eliminates unsightly cabling and disruptive furniture placement

Integrated Poe Support Eliminates More Wires
POE out to power devices such as IP-based VoIP phones eliminates the need for more power cords and clutter

Deployment:

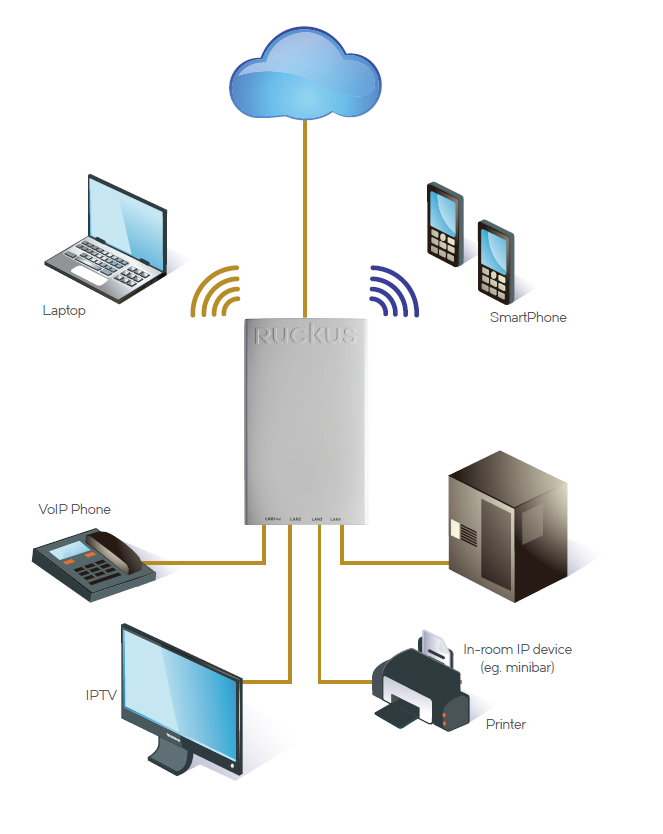

Converged Wired And Wireless Services

RUCKUS Unleashed:

Want blazing-fast Wi-Fi performance? Simple installation and management? Business-class security and resiliency? Enterprise-class features? And all at an affordable cost? Welcome to RUCKUS Unleashed. These access points (APs) use our patented technologies to deliver Ruckus’ industry-leading Wi-Fi performance, but in a package designed and priced for small and medium-size businesses (SMBs) and organizations

Introducing RUCKUS Unleashed

RUCKUS Unleashed is a high-performance, simple-to-setup, easy-to-manage and affordable portfolio of access points. With built-in controller functionality, there’s no need to invest in a separate appliance. You can manage your entire network (APs and switches) from your phone or web browser. Deploying at multiple sites? Manage all your Wi-Fi networks from one place through the Unleashed Multi-Site Manager. You can get your network up and running in under 5 minutes

Where can RUCKUS Unleashed deliver maximum value?

RUCKUS Unleashed APs and switches are designed for small and midsize businesses with a single location or multiple locations with up to 128 APs, 2048 clients and 8 switches per deployment. They’re the perfect choice for smaller organizations that need to provide high-performing, enterprise Wi-Fi to employees, customers and guests without breaking the bank. Using the Unleashed mobile app, Unleashed APs can be managed by practically anyone—no specialized IT expertise required. And Unleashed APs are designed to easily scale up as the business grows—a key requirement for the 58% of SMBs that expect to grow within the next 6–12 months.

Enterprise-grade features

RUCKUS Unleashed APs and switches come loaded with enterprise-grade features to customize, optimize and secure your Wi-Fi networks and deliver great user experiences. Key features are highlighted below.

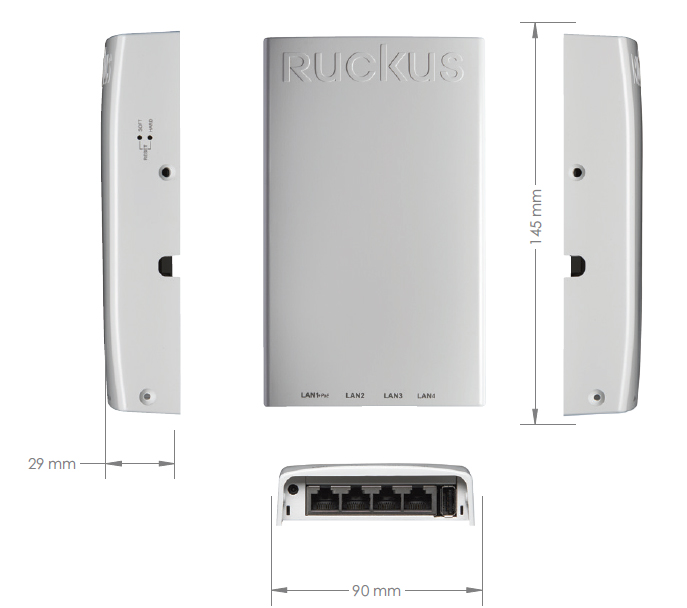

Specifications:

	H510	H320	C110	M510
	Learn More	Learn More	Learn More	Learn More
Feature/Description	802.11ac Wave 2 dual-concurrent wall switch with five GbE ports and BeamFlex+	802.11ac Wave 2 dual-concurrent wall switch with two 10/100MbE ports and BeamFlex+	802.11ac Wave2 dual-concurrent wall plate with built-in DOCSIS 3.0 cable modem	Mobile Indoor 802.11ac Wave 2 2x2:2 Wi-Fi AP with LTE Backhaul
Maximum PHY rate	867 Mbps (5GHz) 300 Mbps (2.4GHz)	867 Mbps (5GHz) 150 Mbps (2.4GHz)	867 Mbps (5GHz) 300 Mbps (2.4GHz)	867 Mbps (5GHz) 300 Mbps (2.4GHz)
Wi-Fi technology	802.11ac (5GHz) 802.11n (2.4GHz)	802.11ac (5GHz) 802.11n (2.4GHz)	802.11ac (5GHz) 802.11n (2.4GHz)	802.11ac (5GHz) 802.11n (2.4GHz)
Concurrent users	100	100	100	512
Radio chains:streams	2x2:2	5GHz: 2x2:2 MU MIMO 2.4GHz: 1x1:1 SU-MIMO	2X2:2	2x2:2
Antenna patterns (per band)	4	4	4	64
Antenna gain	Up to 1dBi	Up to 3dBi	Up to 3dBi	Up to 3dBi
PD-MRC
Rx sensitivity (2.4/5GHz)	-99/-96dBm	-99/-96dBm	-96/-95dBm	-101/-95dBm
ChannelFly
SmartMesh		—		(in future release)
USB (IoT Ready)		—
Ethernet ports	5 x 1GbE	2 x 10/100MbE 1 x 1GbE	2 x 10/100MbE	2 x 1GbE ports, RJ-45
Integrated BLE/ZigBee	—	—	—	—
WLAN Control and Management	·   ZoneDirector ·   SmartZone ·   Unleashed ·   RUCKUS Cloud	·   ZoneDirector ·   SmartZone ·   Unleashed ·   RUCKUS Cloud	·   ZoneDirector ·   SmartZone ·   Unleashed	·   SmartZone ·   Unleashed

† Maximum power varies by country
¹ BeamFlex gains are statistical system level effects translated to enhanced SINR based on observations over time in real-world conditions with multiple APs and many clients
* Subject to country regulations
** For current certification status please see price list
