RUCKUS ZoneFlex M510 Unleashed
Mobile Indoor 802.11ac Wave 2 2x2:2 Wi-Fi AP with LTE Backhaul

Overview:

In a fiercely competitive marketplace, managed service providers (MSP) are looking for new ways to differentiate their services and open new revenue streams.

The RUCKUS M510 Unleashed mobile-wireless access point (AP) is designed to leverage LTE networks as a backhaul and connect wirelessly back to any network without the need for an Ethernet cable connection.

Because of the wireless LTE backhaul capability, the M510 addresses multiple deployment scenarios not previously served, including mobile “in-vehicle” Wi-Fi ("mobile AP"), rapid Wi-Fi deployment for pop-up retail or first-responders and temporary Wi-Fi deployments at a construction site. M510’s LTE backhaul can serve as a failover or redundancy for the WAN connectivity.

Features:

Mobile Wi-Fi

• Superior performance, managed Wi-Fi without cable pulls using an LTE connection to support mobile hotspot requirements.

Carrier-Grade Management

• M510 with SmartZone brings in carrier-grade management features. MSPs can leverage physical or virtual SmartZone controller to manage all APs.

Onboard GPS

• GPS support location aware services for tracking the mobile unit.

Enterprise Wi-Fi Coverage

• Provide an excellent user experience in any environment with patented BeamFlex+™ adaptive antenna technology and multiple directional antenna patterns.

Automate Optimal Throughput

• ChannelFly™ dynamic channel technology uses machine learning to automatically find the least congested channels. You always get the highest throughput the band can support.

Serve More Devices

• Connect more devices simultaneously with two MU-MIMO spatial streams and concurrent dual-band 2.4/5GHz radios while also enhancing non-Wave 2 device performance.

More Than Wi-Fi

• Support services beyond Wi-Fi with the RUCKUS IoT Suite, Cloudpath security and onboarding software, SPoT Wi-Fi locationing engine, and SCI network analytics.

RUCKUS Unleashed:

Want blazing-fast Wi-Fi performance? Simple installation and management? Business-class security and resiliency? Enterprise-class features? And all at an affordable cost? Welcome to RUCKUS Unleashed. These access points (APs) use our patented technologies to deliver Ruckus’ industry-leading Wi-Fi performance, but in a package designed and priced for small and medium-size businesses (SMBs) and organizations

Introducing RUCKUS Unleashed

RUCKUS Unleashed is a high-performance, simple-to-setup, easy-to-manage and affordable portfolio of access points. With built-in controller functionality, there’s no need to invest in a separate appliance. You can manage your entire network (APs and switches) from your phone or web browser. Deploying at multiple sites? Manage all your Wi-Fi networks from one place through the Unleashed Multi-Site Manager. You can get your network up and running in under 5 minutes

Where can RUCKUS Unleashed deliver maximum value?

RUCKUS Unleashed APs and switches are designed for small and midsize businesses with a single location or multiple locations with up to 128 APs, 2048 clients and 8 switches per deployment. They’re the perfect choice for smaller organizations that need to provide high-performing, enterprise Wi-Fi to employees, customers and guests without breaking the bank. Using the Unleashed mobile app, Unleashed APs can be managed by practically anyone—no specialized IT expertise required. And Unleashed APs are designed to easily scale up as the business grows—a key requirement for the 58% of SMBs that expect to grow within the next 6–12 months.

Enterprise-grade features

RUCKUS Unleashed APs and switches come loaded with enterprise-grade features to customize, optimize and secure your Wi-Fi networks and deliver great user experiences. Key features are highlighted below.

Specifications:

	H510	H320	C110	M510
	Learn More	Learn More	Learn More	Learn More
Feature/Description	802.11ac Wave 2 dual-concurrent wall switch with five GbE ports and BeamFlex+	802.11ac Wave 2 dual-concurrent wall switch with two 10/100MbE ports and BeamFlex+	802.11ac Wave2 dual-concurrent wall plate with built-in DOCSIS 3.0 cable modem	Mobile Indoor 802.11ac Wave 2 2x2:2 Wi-Fi AP with LTE Backhaul
Maximum PHY rate	867 Mbps (5GHz) 300 Mbps (2.4GHz)	867 Mbps (5GHz) 150 Mbps (2.4GHz)	867 Mbps (5GHz) 300 Mbps (2.4GHz)	867 Mbps (5GHz) 300 Mbps (2.4GHz)
Wi-Fi technology	802.11ac (5GHz) 802.11n (2.4GHz)	802.11ac (5GHz) 802.11n (2.4GHz)	802.11ac (5GHz) 802.11n (2.4GHz)	802.11ac (5GHz) 802.11n (2.4GHz)
Concurrent users	100	100	100	512
Radio chains:streams	2x2:2	5GHz: 2x2:2 MU MIMO 2.4GHz: 1x1:1 SU-MIMO	2X2:2	2x2:2
Antenna patterns (per band)	4	4	4	64
Antenna gain	Up to 1dBi	Up to 3dBi	Up to 3dBi	Up to 3dBi
PD-MRC
Rx sensitivity (2.4/5GHz)	-99/-96dBm	-99/-96dBm	-96/-95dBm	-101/-95dBm
ChannelFly
SmartMesh		—		(in future release)
USB (IoT Ready)		—

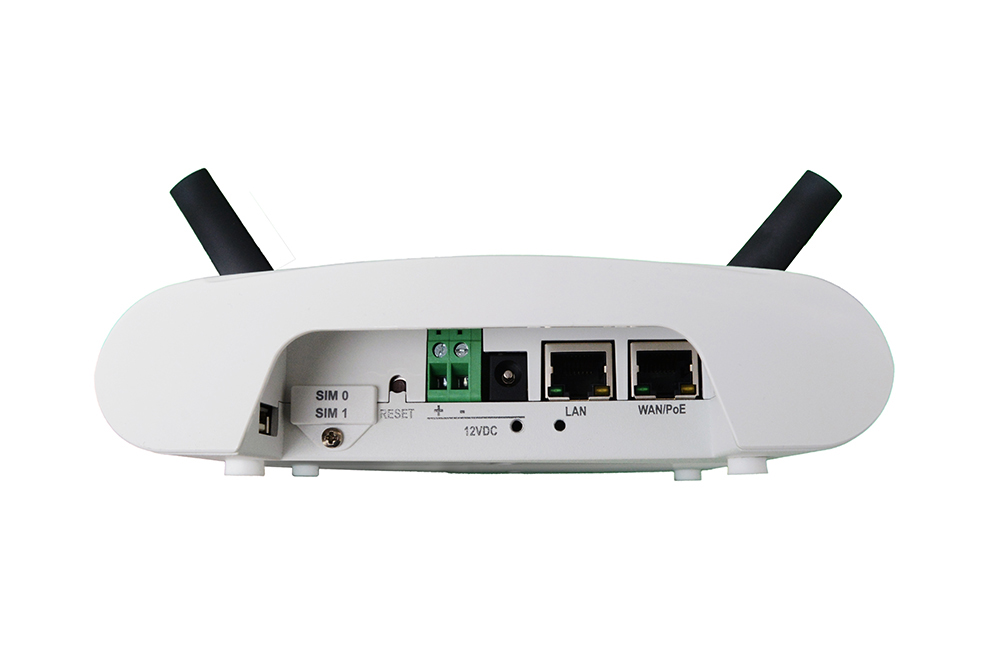

Ethernet ports	5 x 1GbE	2 x 10/100MbE 1 x 1GbE	2 x 10/100MbE	2 x 1GbE ports, RJ-45
Integrated BLE/ZigBee	—	—	—	—
WLAN Control and Management	·   ZoneDirector ·   SmartZone ·   Unleashed ·   RUCKUS Cloud	·   ZoneDirector ·   SmartZone ·   Unleashed ·   RUCKUS Cloud	·   ZoneDirector ·   SmartZone ·   Unleashed	·   SmartZone ·   Unleashed

Views:

Product Comparison:

Indoor Access Points

Outdoor Access Points

Specialty Access Points

Documentation:

Download the RUCKUS Unleashed Overview (PDF).

Download the RUCKUS ZoneFlex M510 Unleashed Datasheet (PDF).
