RUCKUS ZoneFlex R310 Unleashed
Dual-Band 802.11ac Smart Wi-Fi Access Points

Overview:

High Performance, 802.11ac Smart Wi-Fi Access Points with Adaptive Antenna Technology

RUCKUS R310 Unleashed enables controller-less Wi-Fi architecture for small business environments with superior performance, lower costs and simplified management. Separate controllers and access point licenses are no longer needed, significantly reducing upfront costs. Set-up is also easy, thanks to a simplified web interface that helps businesses configure Wi-Fi in just 60 seconds.

Unlike any other 802.11ac wireless solution in its class, the ZoneFlex R310 Unleashed combines patented adaptive antenna technology and automatic interference mitigation to deliver consistent, predictable performance at extended ranges with up to 4dB of statistical BeamFlex gain and up to 10dB of interference mitigation.

Additional performance enhancements to signal gain can be attributed to the chip-based transmit beamforming capability adding 3 dB when associated to a compatible client.

Each ZoneFlex R310 Unleashed integrates Ruckus-patented BeamFlex, a software-controlled, high gain antenna array that continually forms and directs each 802.11ac packet over the best performing signal path. The ZoneFlex R310 Unleashed automatically selects channels for highest throughput potential using RUCKUS ChannelFly dynamic channel management, adapting to environmental changes. Once deployed, enterprises never have to worry about constant site surveys as the environment changes.

Patented BeamFlex Technology Extends Signal Range, Improves Stability of Client Connections

All ZoneFlex R310 Unleashed Smart Wi-Fi access points integrate a software-controlled smart antenna array that delivers up to an additional 4 dB of BeamFlex gain and 10 dB of interference mitigation.

Advanced WLAN Applications

Each ZoneFlex R310 Unleashed supports a wide range of value-added applications such as guest networking, DynamicPSK, hotspot authentication, wireless intrusion detection and many more. In a controller-less configuration, the ZoneFlex R310 Unleashed works with a wide range of authentication servers including Microsoft’s Active Directory, and AAA/RADIUS.

Flexible Migration Options

RUCKUS Unleashed is custom-designed to help small business owners grow their business, deliver an excellent customer experience and manage costs while supporting Wi-Fi and a variety of mobile devices with minimal IT staff. Unleashed access points have built-in controller capabilities, including user access controls, guest networking functions, advanced Wi-Fi security and traffic management. As businesses grow to multiple sites or a larger scale deployment, RUCKUS offers an easy migration path to controller based Wi-Fi, using the same Wi-Fi access points.

Complete Local and Remote Management

ZoneFlex R310 Unleashed can be securely managed from anywhere at anytime using any browser on any device.

Features:

High Performance and Cost Effective

• Two-stream MIMO 2x2:2
• Concurrent dual-band (5GHz/2.4GHz) support
• 867 Mbps (5 GHz) and 300 Mbps (2.4 GHz) of user throughput
• Up to 4dB of statistical BeamFlex gain and up to 10dB of interference mitigation
• Capable of supporting up to 100 clients per access point

Adaptive antennas and Automatic interference mitigation

• Up to 2x to 4x increase increase in Wi-Fi signal coverage
• Automatic interference mitigation to deliver consistent, predictable performance at extended ranges

Small Form Factor for easy installation

• 138mm x 135mm x 30mm
• Flexible mounting options include: secure mounting bracket, ceiling T-Bar or flat surface

Concurrent support for HD IPTV, VoIP and data

• Support for isochronous, multicast IP video streaming
• Four queues per client station

Differentiated services with multiple SSIDs

• Support for up to 8 BSSIDs per radio (16 BSSIDs per access point) with unique QoS and security policies
• WPA-PSK (AES), 802.1X support
• Zero-IT and Dynamic PSK
• Captive portal and guest accounts
• RADIUS and Active Directory support

Other Features

• Blazing fast 802.11ac speeds at the lowest cost in its class
• Dual-band concurrent (2.4GHz/5GHz) 802.11ac
• Adaptive antenna technology and advanced RF management
• Up to an additional 4dB BeamFlex gain / 10dB interference mitigation
• Automatic interference mitigation, optimized for congested environments
• Integrated smart antenna technology
• Standard 802.3af Power over Ethernet (PoE)
• 2 to 4 times extended range and coverage
• IP multicast video streaming support
• Up to 8 BSSIDs per radio (16 BSSIDs per access point) with unique QoS and security policies
• Advanced QoS packet classification and automatic priority for latency-sensitive traffic
• Dynamic, per-user rate-limiting for hotspot WLANs
• WPA-PSK (AES), 802.1X support for RADIUS and Active Directory
• Ethernet 802.1x port-based authentication (authenticator and supplicant)
• BYOD, Zero-IT and Dynamic PSK
• Admission control/load balancing
• Bandsteering and airtime fairness
• Captive portal and guest accounts
• Guest access services
• Application Recognition and Control
• Wall, desktop or ceiling mountable
• Limited lifetime warranty

Benefits:

Unleash The Performance
In the Unleashed version, the ZoneFlex R310 is capable of supporting controller-less deployments forup to 25 access points and 100 concurrent devices per AP

Extended range requires fewer APs
Adaptive antenna technology delivers a 2x to 4x increase in Wi-Fi signal coverage minimizing the number of APs required to service any area

Sleek, low profile enclosure for ease-of-deployment
Aesthetically-pleasing design fits almost anywhere. Powerful 802.11ac technology that literally fits in the palm of your hand for easy deployment

Channel selection optimizes throughput
ChannelFly dynamically chooses the best channel, giving users the highest possible throughput even in highly congested environments

Intuitive configuration and management
The industry’s simplest configuration and management through a Web-based wizard and automated deployment capabilities

Hassle free migration to higher speed Wi-Fi
Support for standard 802.3af power over Ethernet allows enterprises to use existing PoE switches without costly upgrades

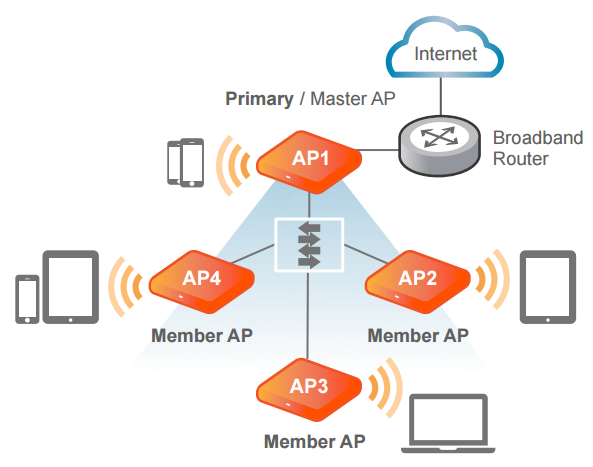

Deployment:

The Zoneflex R310 Unleashed Integrates With Your Existing Network Infrastructure
Delivering best-in-class 802.11ac performance and reliability at a competitive price—making it the ideal wireless solution for small business environments.

RUCKUS Unleashed:

Want blazing-fast Wi-Fi performance? Simple installation and management? Business-class security and resiliency? Enterprise-class features? And all at an affordable cost? Welcome to RUCKUS Unleashed. These access points (APs) use our patented technologies to deliver Ruckus’ industry-leading Wi-Fi performance, but in a package designed and priced for small and medium-size businesses (SMBs) and organizations

Introducing RUCKUS Unleashed

RUCKUS Unleashed is a high-performance, simple-to-setup, easy-to-manage and affordable portfolio of access points. With built-in controller functionality, there’s no need to invest in a separate appliance. You can manage your entire network (APs and switches) from your phone or web browser. Deploying at multiple sites? Manage all your Wi-Fi networks from one place through the Unleashed Multi-Site Manager. You can get your network up and running in under 5 minutes

Where can RUCKUS Unleashed deliver maximum value?

RUCKUS Unleashed APs and switches are designed for small and midsize businesses with a single location or multiple locations with up to 128 APs, 2048 clients and 8 switches per deployment. They’re the perfect choice for smaller organizations that need to provide high-performing, enterprise Wi-Fi to employees, customers and guests without breaking the bank. Using the Unleashed mobile app, Unleashed APs can be managed by practically anyone—no specialized IT expertise required. And Unleashed APs are designed to easily scale up as the business grows—a key requirement for the 58% of SMBs that expect to grow within the next 6–12 months.

Enterprise-grade features

RUCKUS Unleashed APs and switches come loaded with enterprise-grade features to customize, optimize and secure your Wi-Fi networks and deliver great user experiences. Key features are highlighted below.

FEATURE	BENEFIT
Guest Services	Give guests secure, high-performance Wi-Fi access, while isolating their traffic from the private business network easily. Customize your guest Wi-Fi portal with your logo, brand and messages. Provide Wi-Fi access through Guest Passes, or have guests authenticate using social media accounts such as Facebook to eliminate the hassle (and security holes) of sharing Wi-Fi passwords.
Application Visibility and Control	Monitor the network usage patterns of over 2,200 applications with Deep Packet Inspection, and find out which ones are consuming the most resources. You can define application-specific access rules (such as limiting access to YouTube or social media), or even limit Wi-Fi speeds for specific applications and/or SSIDs.
Resiliency	Continue to access printers and other network devices even if internet connectivity fails. Users stay connected to the Wi-Fi network even if one or several APs fail for any reason, as long as at least one AP in the network is online.
Security	Use DPSK to eliminate the risks of shared passwords and lock down access to the Wi-Fi network—without complex configurations. In addition, secure your network and protect your clients with WPA encryption, client isolation and 802.1x for RADIUS and Active Directory.
Zero Touch Mesh	Add new Unleashed APs to the existing network securely over the air. Dramatically speed up and simplify the installation of an Unleashed network.
Multiple Language Support	Create and manage your Wi-Fi network in your own language. RUCKUS Unleashed currently supports 13 languages.
URL Filtering	Define web access rules for your network users. Protect your network from malware and phishing sites.
Social Login	With the built-in Social Login feature, you can sign into the Unleashed mobile app using your Gmail, Facebook or Twitter account, and link your Unleashed Wi-Fi network. From that point on, you can manage your Unleashed network from anywhere in the world using your social login.
Remote Management	Need a quick answer or help troubleshooting a network issue? Just tap the “Invite for Remote Management” option on the mobile app, and send a text message or email with a link containing all the Unleashed network information  to an expert.
AP Groups	Apply multiple configuration profiles to different groups of APs.
Zero IT	Easily onboard customers or employees onto your Wi-Fi network through a simple, self-service portal.
SSID Rate-Limiting	If you want to limit data speeds for a particular group of users (such as guest users), you can create a separate SSID with a data rate “speed limit” that you define.

Specifications:

	R650	R610	R510	R320	R310
	Learn More	Learn More	Learn More	Learn More	Learn More
Feature/Description	Mid-range Wi-Fi 6 (802.11ax) dual- concurrent AP with MU-MIMO and BeamFlex+	Mid-range 802.11ac Wave 2 dual-concurrent AP with MU-MIMO and BeamFlex+	Mid-range 802.11ac Wave 2 dual-concurrent AP with MU-MIMO and BeamFlex+	Entry level 802.11ac Wave 2 dual-concurrent AP with BeamFlex	Entry level 802.11ac Wave 1 dual-concurrent AP with BeamFlex
Maximum PHY rate	2400 Mbps (5GHz) 574 (2.4GHz)	1300  Mbps (5GHz) 450  Mbps (2.4GHz)	867 Mbps (5GHz) 300 Mbps (2.4GHz)	867 Mbps (5GHz) 300 Mbps (2.4GHz)	867 Mbps (5GHz) 300 Mbps (2.4GHz)
Wi-Fi technology	802.11ax (2.4GHz, 5GHz) Wi-Fi CERTIFIED 6™	802.11ac (5GHz) 802.11n (2.4GHz)	802.11ac (5GHz) 802.11n (2.4GHz)	802.11ac (5GHz) 802.11n (2.4GHz)	802.11ac (5GHz) 802.11n (2.4GHz)
Concurrent users	512	512	512	256	100
Radio chains:streams	5GHz: 4x4:4 MU-MIMO 2.4GHz: 2x2:2 MU-MIMO	3x3:3	2x2:2	2x2:2	2x2:2
Antenna patterns (per band)	128	512	64	64	64
Antenna gain	Up to 3dBi	Up to 3dBi	Up to 3dBi	Up to 3dBi	Up to 3dBi
PD-MRC				—	—
Rx sensitivity (2.4/5GHz)	-101dBm	-100dBm	-103dBm	-101dBm	-99dBm
ChannelFly
SmartMesh				—	—
USB (IoT Ready)				—	—
Ethernet ports	1 x 1 GbE 1 x 2.5 GbE	2 x 1GbE	2 x 1GbE	1 x 1GbE	1 x 1GbE
Integrated BLE/ZigBee		—	—	—	—
WLAN Control and Management	·   ZoneDirector ·   SmartZone ·   RUCKUS Cloud	·   ZoneDirector ·   SmartZone ·   Unleashed ·   RUCKUS Cloud	·   ZoneDirector ·   SmartZone ·   Unleashed ·   RUCKUS Cloud	·   ZoneDirector ·   SmartZone ·   Unleashed ·   RUCKUS Cloud	·   ZoneDirector ·   SmartZone ·   Unleashed ·   RUCKUS Cloud

† Maximum power varies by country
¹ BeamFlex gains are statistical system level effects translated to enhanced SINR based on observations over time in real-world conditions with multiple APs and many clients
* Subject to country regulations
** For current certification status please see price list

Product Comparison:

Indoor Access Points

Indoor	HARDWARE SPECS	MU- MIMO	DATA SPEED	CONCURRENT USERS	ANTENNA PATTERNS (PER BAND)	ETHERNET PORTS
R310	802.11ac, 2x2:2	No	867 Mbps (5GHz) 300 Mbps (2.4GHz)	100	64	1x1GbE
R320	802.11ac Wave 2, 2x2:2	No	867 Mbps (5GHz) 300 Mbps (2.4GHz)	256	64	1x1GbE
R510	802.11ac Wave 2, 2x2:2	Yes	867 Mbps (5GHz) 300 Mbps (2.4GHz)	100	512	2x1GbE
R610	802.11ac Wave 2, 3x3:3	Yes	1300 Mbps (5GHz) 450 Mbps (2.4GHz)	512	512	2x1GbE
R710	802.11ac Wave 2, 4x4:4	Yes	1733 Mbps (5GHz) 600 Mbps (2.4GHz)	512	4,000+	2x1GbE
R720	802.11ac Wave 2, 4x4:4	Yes	1733 Mbps (5GHz) 600 Mbps (2.4GHz)	512	4,000+	1x1GbE 1x2.5GbE
R750	802.11ax (Wi-Fi 6), 4x4:4	Yes	2400 Mbps (5GHz) 1148 Mbps (2.4GHz)	1024	4,000+	1x1GbE 1x2.5GbE

Outdoor Access Points

Outdoor	HARDWARE SPECS	MU- MIMO	DATA SPEED	CONCURRENT USERS	ANTENNA PATTERNS (PER BAND)	ETHERNET PORTS
T310	802.11ac Wave 2, 2x2:2	Yes	867 Mbps (5GHz) 300 Mbps (2.4GHz)	512	64	1x1GbE
T510	802.11ac Wave 2, 2x2:2	Yes	867 Mbps (5GHz) 300 Mbps (2.4GHz)	512	64	1x1GbE
T610	802.11ac Wave 2, 4x4:4	Yes	1733 Mbps (5GHz) 600 Mbps (2.4GHz)	512	4,000+	2x1GbE
T710	802.11ac Wave 2, 4x4:4	Yes	1733 Mbps (5GHz) 600 Mbps (2.4GHz)	512	4,000+	2x1GbE

Specialty Access Points

Specialty	HARDWARE SPECS	MU- MIMO	DATA SPEED	CONCURRENT USERS	ANTENNA PATTERNS (PER BAND)	ETHERNET PORTS
C110	802.11ac Wave 2, 2x2:2	Yes	867 Mbps (5GHz) 300 Mbps (2.4GHz)	100	4	2x10/100MbE 1x DOCSIS 3.0 modem port
H320	802.11ac Wave 2, 2x2:2	Yes	867 Mbps (5GHz) 150 Mbps (2.4GHz)	100	4	2x10/100MbE 1x1GbE
H510	802.11ac Wave 2, 2x2:2	Yes	867 Mbps (5GHz) 300 Mbps (2.4GHz)	100	4	5x1GbE
M510	802.11 ac Wave 2, 2x2:2	Yes	867 Mbps (5GHz) 300 Mbps (2.4GHz)	512	64	2x 1GbE 1x RJ-45

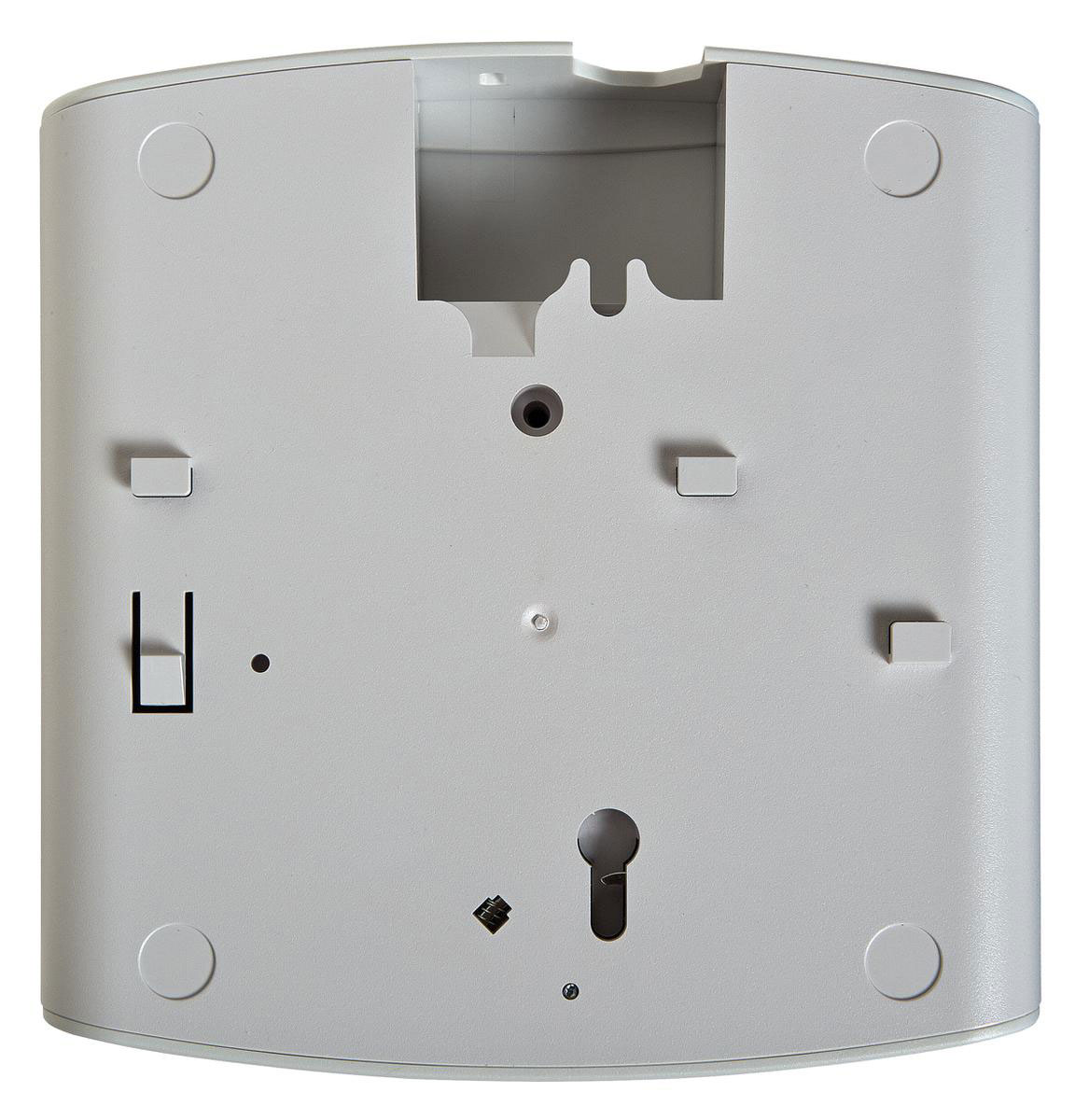

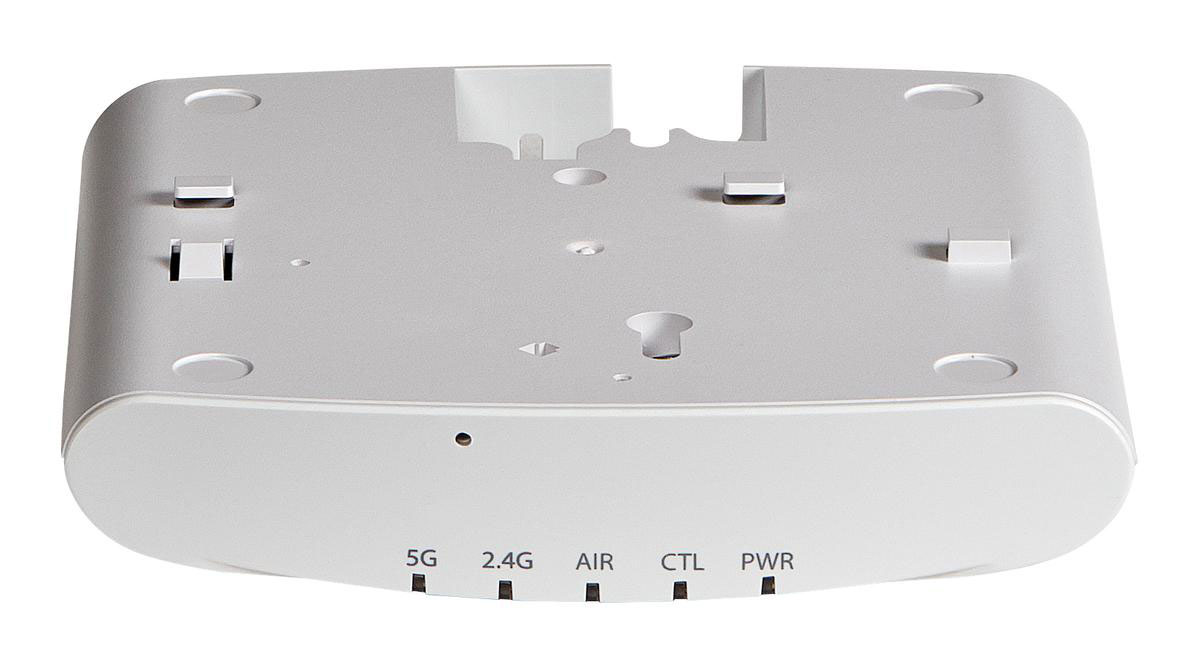

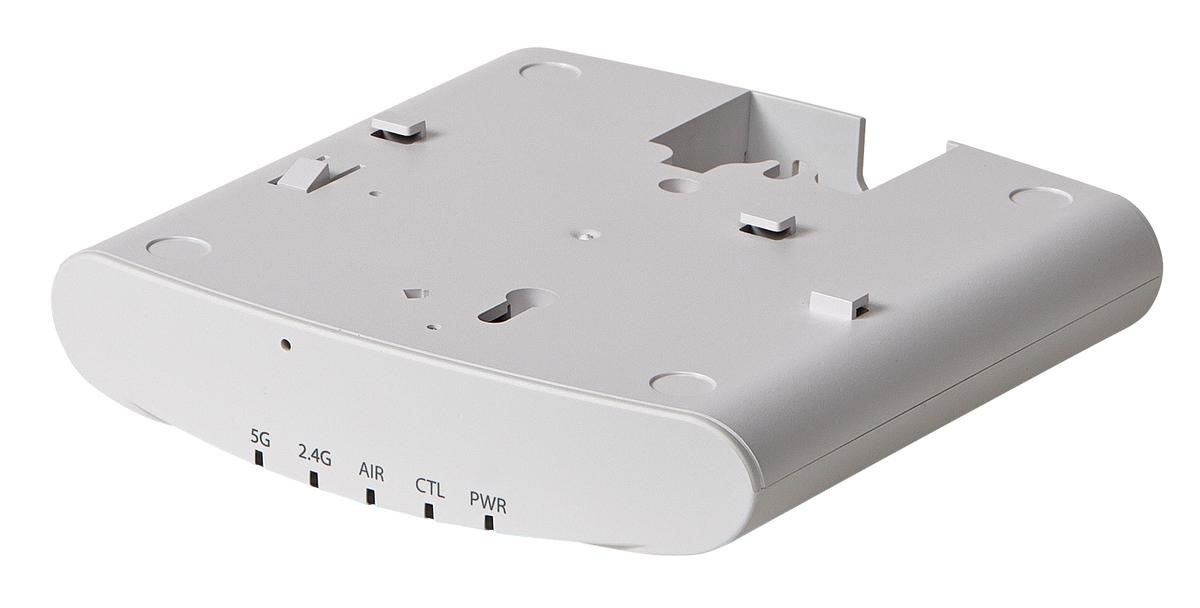

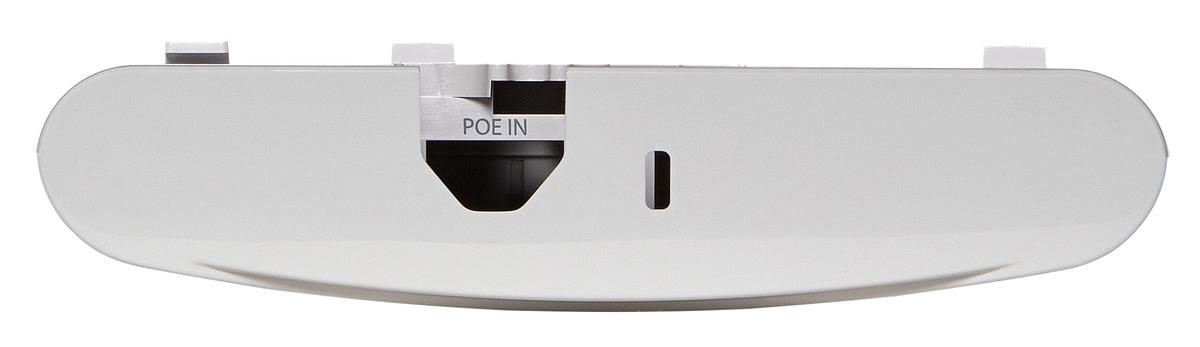

Views:

Documentation:

Download the RUCKUS Unleashed Overview (PDF).

Download the RUCKUS ZoneFlex R310 Unleashed Datasheet (PDF).
