Overview:
The demand for public outdoor Wi-Fi continues to explode. Users expect great Wi-Fi experience whether at a stadium or on a train. In outdoor environments, designing an optimal wireless network without interfering with the aesthetics of the environment is a challenge for operators and service providers.

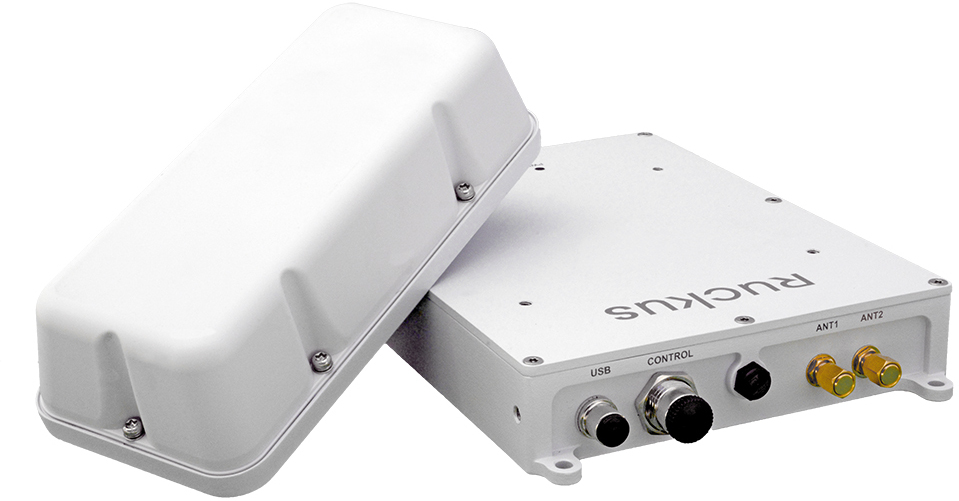

The RUCKUS E510 802.11ac Wave 2 access point (AP) is designed with a unique, diminutive two element enclosure which separates the RF components from the antenna module. This approach provides placement flexibility for the antenna which is necessary when the AP must be placed inside a vehicle or metal-shielded environment. The E510 can be placed unobtrusively inside signage at a bus or train stations, and within a vending machine and display kiosk.

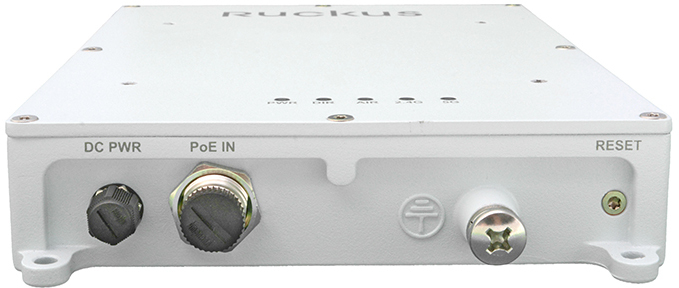

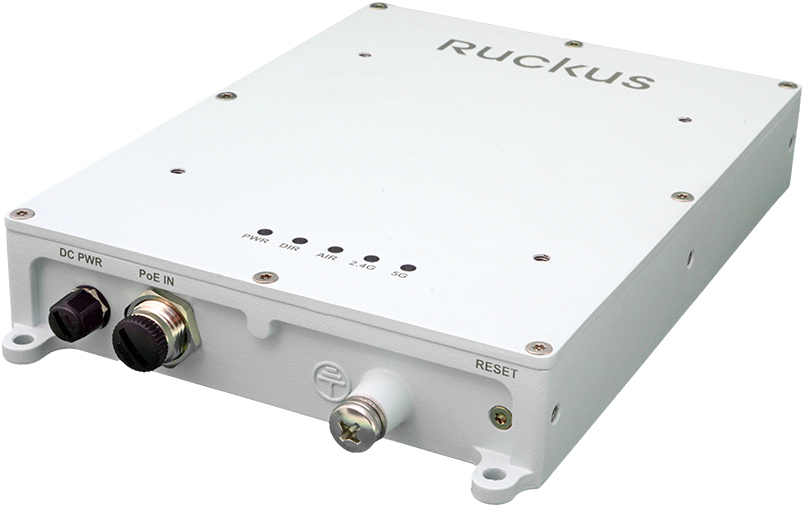

The E510 RF module with its small form-factor is designed to be installed in park benches, street furniture, on light poles or other aesthetically restrictive areas. The separate low-profile antenna module is placed in a nearby un-obtrusive location. Both modules are IP-67 and industrial temperature rated and can withstand the most challenging outdoor environments allowing operators and service providers to deploy Wi-Fi in previously unreachable environments.
The RUCKUS E510 incorporates patented technologies found only in the RUCKUS WiFi portfolio.
- Extended coverage with patented BeamFlex+™ adaptive antenna technology utilizing multi-directional antenna patterns.
- Improve throughput with ChannelFly, which dynamically finds less congested Wi-Fi channels to use.
Whether you’re deploying ten or ten thousand APs, the E510 is easy to manage through Ruckus’ physical and virtual appliance options.
Features:
Deployment Flexibility
Separation of the antenna from the small radio component provides deployment flexibility that supports location constraints and aesthetic requirements.
Great Outdoor Wi-Fi
Deploy high-performance outdoor 802.11ac Wave 2 Wi-Fi in harshest of the outdoor environments with IP-67 weather proofing.
Stunning Wi-Fi Performance
Extends coverage with patented BeamFlex+™ adaptive antenna technology while mitigating interference by utilizing up to 64 directional antenna patterns.
Multiple Management Options
Manage the E510 with physical or virtual appliances.
Automate Optimal Throughput
ChannelFly™ dynamic channel technology uses machine learning to automatically find the least congested channels. You always get the highest throughput the band can support.
Serve More Devices
Connect more devices simultaneously with two MU-MIMO spatial streams and concurrent dual-band 2.4/5GHz radios while also enhancing non-Wave 2 device performance.
More Than Wi-Fi
Support services beyond Wi-Fi with the RUCKUS IoT Suite, Cloudpath security and onboarding software, SPoT Wi-Fi locationing engine, and SCI network analytics.
RUCKUS Unleashed:
Want blazing-fast Wi-Fi performance? Simple installation and management? Business-class security and resiliency? Enterprise-class features? And all at an affordable cost? Welcome to RUCKUS Unleashed. These access points (APs) use our patented technologies to deliver Ruckus’ industry-leading Wi-Fi performance, but in a package designed and priced for small and medium-size businesses (SMBs) and organizations
Introducing RUCKUS Unleashed
RUCKUS Unleashed is a high-performance, simple-to-setup, easy-to-manage and affordable portfolio of access points. With built-in controller functionality, there’s no need to invest in a separate appliance. You can manage your entire network (APs and switches) from your phone or web browser. Deploying at multiple sites? Manage all your Wi-Fi networks from one place through the Unleashed Multi-Site Manager. You can get your network up and running in under 5 minutes
Where can RUCKUS Unleashed deliver maximum value?
RUCKUS Unleashed APs and switches are designed for small and midsize businesses with a single location or multiple locations with up to 128 APs, 2048 clients and 8 switches per deployment. They’re the perfect choice for smaller organizations that need to provide high-performing, enterprise Wi-Fi to employees, customers and guests without breaking the bank. Using the Unleashed mobile app, Unleashed APs can be managed by practically anyone—no specialized IT expertise required. And Unleashed APs are designed to easily scale up as the business grows—a key requirement for the 58% of SMBs that expect to grow within the next 6–12 months.
Enterprise-grade features
RUCKUS Unleashed APs and switches come loaded with enterprise-grade features to customize, optimize and secure your Wi-Fi networks and deliver great user experiences. Key features are highlighted below.
FEATURE |
BENEFIT |
Guest Services |
Give guests secure, high-performance Wi-Fi access, while isolating their traffic from the private business network easily. Customize your guest Wi-Fi portal with your logo, brand and messages. Provide Wi-Fi access through Guest Passes, or have guests authenticate using social media accounts such as Facebook to eliminate the hassle (and security holes) of sharing
Wi-Fi passwords. |
Application Visibility and Control |
Monitor the network usage patterns of over 2,200 applications with Deep Packet Inspection, and find out which ones are consuming the most resources. You can define application-specific access rules (such as limiting access to YouTube or social media), or even limit Wi-Fi speeds for specific applications and/or SSIDs. |
Resiliency |
Continue to access printers and other network devices even if internet connectivity fails. Users stay connected to the Wi-Fi network even if one or several APs fail for any reason, as long as at least one AP in the network is online. |
Security |
Use DPSK to eliminate the risks of shared passwords and lock down access to the Wi-Fi network—without complex configurations. In addition, secure your network and protect your clients with WPA encryption, client isolation and 802.1x for RADIUS and Active Directory. |
Zero Touch Mesh |
Add new Unleashed APs to the existing network securely over the air. Dramatically speed up and simplify the installation of an Unleashed network. |
Multiple Language Support |
Create and manage your Wi-Fi network in your own language. RUCKUS Unleashed currently supports 13 languages. |
URL Filtering |
Define web access rules for your network users. Protect your network from malware and phishing sites. |
Social Login |
With the built-in Social Login feature, you can sign into the Unleashed mobile app using your Gmail, Facebook or Twitter account, and link your Unleashed Wi-Fi network. From that point on, you can manage your Unleashed
network from anywhere in the world using your social login. |
Remote Management |
Need a quick answer or help troubleshooting a network issue? Just tap the “Invite for Remote Management” option on the mobile app, and send a text message or email with a link containing all the Unleashed network information to an expert. |
AP Groups |
Apply multiple configuration profiles to different groups of APs. |
Zero IT |
Easily onboard customers or employees onto your Wi-Fi network through a simple, self-service portal. |
SSID Rate-Limiting |
If you want to limit data speeds for a particular group of users (such as guest users), you can create a separate SSID with a data rate “speed limit” that you define. |
Specifications:
|
|
T750
|
T710
|
T610
|
T310
|
T811-CM
|
E510
|
P300
|
|
 Learn More |
 Learn More |
 Learn More |
 Learn More |
 Learn More |
 Learn More |
 Learn More |
Feature/Description |
High-end Wi-Fi 6 (802.11ax) dual- concurrent AP with MU-MIMO and BeamFlex+ |
High-end 802.11ac Wave 2 dual concurrent AP with BeamFlex+ |
Mid-range 802.11ac Wave 2 dual concurrent AP with BeamFlex+ |
Entry-level 802.11ac Wave 2 outdoor AP series with integrated BeamFlex+ omni and sector antennas |
Outdoor 4x4:4 2.4/5GHz 802.11ac Wave 2 Wi-Fi access point with DOCSIS 3.1 backhaul |
Embedded 802.11ac Outdoor Wave 2 Wi- Fi AP with External BeamFlex+ Antennas |
Point-to-Point / Multi- point bridge |
Maximum PHY rate |
2400 Mbps (5GHz)
1148 Mbps (2.4GHz) |
1733 Mbps (5GHz)
600 Mbps (2.4GHz) |
1733 Mbps (5GHz)
600 Mbps (2.4GHz) |
867 Mbps (5GHz)
300 Mbps (2.4GHz) |
1733 Mbps (5GHz)
600 Mbps (2.4GHz) |
867 Mbps (5GHz)
300 Mbps (2.4GHz) |
867 Mbps (5GHz) |
Wi-Fi technology |
802.11ax (2.4GHz, 5GHz) Wi-Fi CERTIFIED 6™ |
802.11ac (5GHz)
802.11n (2.4GHz) |
802.11ac (5GHz)
802.11n (2.4GHz) |
802.11ac (5GHz)
802.11n (2.4GHz) |
802.11ac (5GHz)
802.11n (2.4GHz) |
802.11ac (5GHz)
802.11n (2.4GHz) |
802.11ac (5GHz) |
Concurrent users |
1024 |
512 |
512 |
512 |
512 |
512 |
— |
Radio chains:streams |
4x4:4 |
4x4:4 |
4x4:4 |
2x2:2 |
4x4:4 |
2x2:2 |
2x2:2 |
Antenna patterns (per band) |
4,000+ |
4,000+ |
4,000+ |
64 |
4,000+ |
64 |
— |
Antenna gain |
Up to 3dBi |
Omni: Up to 3dBi Sector: Up to 8dBi |
Omni: Up to 3dBi
120 Sector: Up to 8dBi |
Omni: Up to 3dBi
120 Sector: Up to 9dBi 30 Sector: Up to 12dBi |
Up to 3dBi |
Up to 3dBi |
— |
PD-MRC |
|
|
|
|
|
|
|
Rx sensitivity (2.4/5GHz) |
-103dBm |
-104/-104dBm |
-104dBm |
-101dBm |
-98/-97 |
-101dBm |
-96dBm |
ChannelFly |
|
|
|
|
|
|
|
SmartMesh |
|
|
|
|
|
|
— |
Ethernet interface |
1 x 1 GbE
1 x 2.5 GbE |
2 x 1GbE |
2 x 1GbE |
1 x 1GbE |
1 x 1GbE |
1 x 1GbE |
1 x 1GbES |
USB (IoT Ready) |
|
— |
|
Models d, s, & n |
|
|
— |
Fiber interface |
|
|
— |
— |
|
— |
— |
GPS |
|
|
— |
— |
|
— |
— |
WLAN Control and Management |
· ZoneDirector
· SmartZone
· RUCKUS Cloud |
· ZoneDirector
· SmartZone
· Unleashed
· RUCKUS Cloud |
· ZoneDirector
· SmartZone
· Unleashed
· RUCKUS Cloud |
· ZoneDirector
· SmartZone
· Unleashed
· RUCKUS Cloud |
· SmartZone |
· SmartZone
· ZoneDirector
· Standalone
· Unleashed
· RUCKUS Cloud |
· Unleashed Multi-Site Manager |
Product Comparison:
Indoor Access Points
| Indoor
|
HARDWARE SPECS
|
MU- MIMO
|
DATA SPEED
|
CONCURRENT USERS
|
ANTENNA PATTERNS (PER BAND)
|
ETHERNET PORTS
|
R310 |
802.11ac, 2x2:2 |
No |
867 Mbps (5GHz)
300 Mbps (2.4GHz) |
100 |
64 |
1x1GbE |
R320 |
802.11ac Wave 2, 2x2:2 |
No |
867 Mbps (5GHz)
300 Mbps (2.4GHz) |
256 |
64 |
1x1GbE |
R510 |
802.11ac Wave 2, 2x2:2 |
Yes |
867 Mbps (5GHz)
300 Mbps (2.4GHz) |
100 |
512 |
2x1GbE |
R610 |
802.11ac Wave 2, 3x3:3 |
Yes |
1300 Mbps (5GHz)
450 Mbps (2.4GHz) |
512 |
512 |
2x1GbE |
R710 |
802.11ac Wave 2, 4x4:4 |
Yes |
1733 Mbps (5GHz)
600 Mbps (2.4GHz) |
512 |
4,000+ |
2x1GbE |
R720 |
802.11ac Wave 2, 4x4:4 |
Yes |
1733 Mbps (5GHz)
600 Mbps (2.4GHz) |
512 |
4,000+ |
1x1GbE 1x2.5GbE |
R750 |
802.11ax (Wi-Fi 6), 4x4:4 |
Yes |
2400 Mbps (5GHz)
1148 Mbps (2.4GHz) |
1024 |
4,000+ |
1x1GbE 1x2.5GbE |
Outdoor Access Points
| Outdoor
|
HARDWARE SPECS
|
MU- MIMO
|
DATA SPEED
|
CONCURRENT USERS
|
ANTENNA PATTERNS (PER BAND)
|
ETHERNET PORTS
|
T310 |
802.11ac Wave 2, 2x2:2 |
Yes |
867 Mbps (5GHz)
300 Mbps (2.4GHz) |
512 |
64 |
1x1GbE |
T510 |
802.11ac Wave 2, 2x2:2 |
Yes |
867 Mbps (5GHz)
300 Mbps (2.4GHz) |
512 |
64 |
1x1GbE |
T610 |
802.11ac Wave 2, 4x4:4 |
Yes |
1733 Mbps (5GHz)
600 Mbps (2.4GHz) |
512 |
4,000+ |
2x1GbE |
T710 |
802.11ac Wave 2, 4x4:4 |
Yes |
1733 Mbps (5GHz)
600 Mbps (2.4GHz) |
512 |
4,000+ |
2x1GbE |
Specialty Access Points
| Specialty
|
HARDWARE SPECS
|
MU- MIMO
|
DATA SPEED
|
CONCURRENT USERS
|
ANTENNA PATTERNS (PER BAND)
|
ETHERNET PORTS
|
C110 |
802.11ac Wave 2, 2x2:2 |
Yes |
867 Mbps (5GHz)
300 Mbps (2.4GHz) |
100 |
4 |
2x10/100MbE
1x DOCSIS 3.0
modem port |
H320 |
802.11ac Wave 2, 2x2:2 |
Yes |
867 Mbps (5GHz)
150 Mbps (2.4GHz) |
100 |
4 |
2x10/100MbE
1x1GbE |
H510 |
802.11ac Wave 2, 2x2:2 |
Yes |
867 Mbps (5GHz)
300 Mbps (2.4GHz) |
100 |
4 |
5x1GbE |
M510 |
802.11 ac Wave 2, 2x2:2 |
Yes |
867 Mbps (5GHz)
300 Mbps (2.4GHz) |
512 |
64 |
2x 1GbE 1x RJ-45 |
